2X 24 (31AM6BVRB10) - Cub Cadet 2X 24" Snow Thrower (2023) Wheels & Axle Parts Diagram

2X 24" Snow Thrower

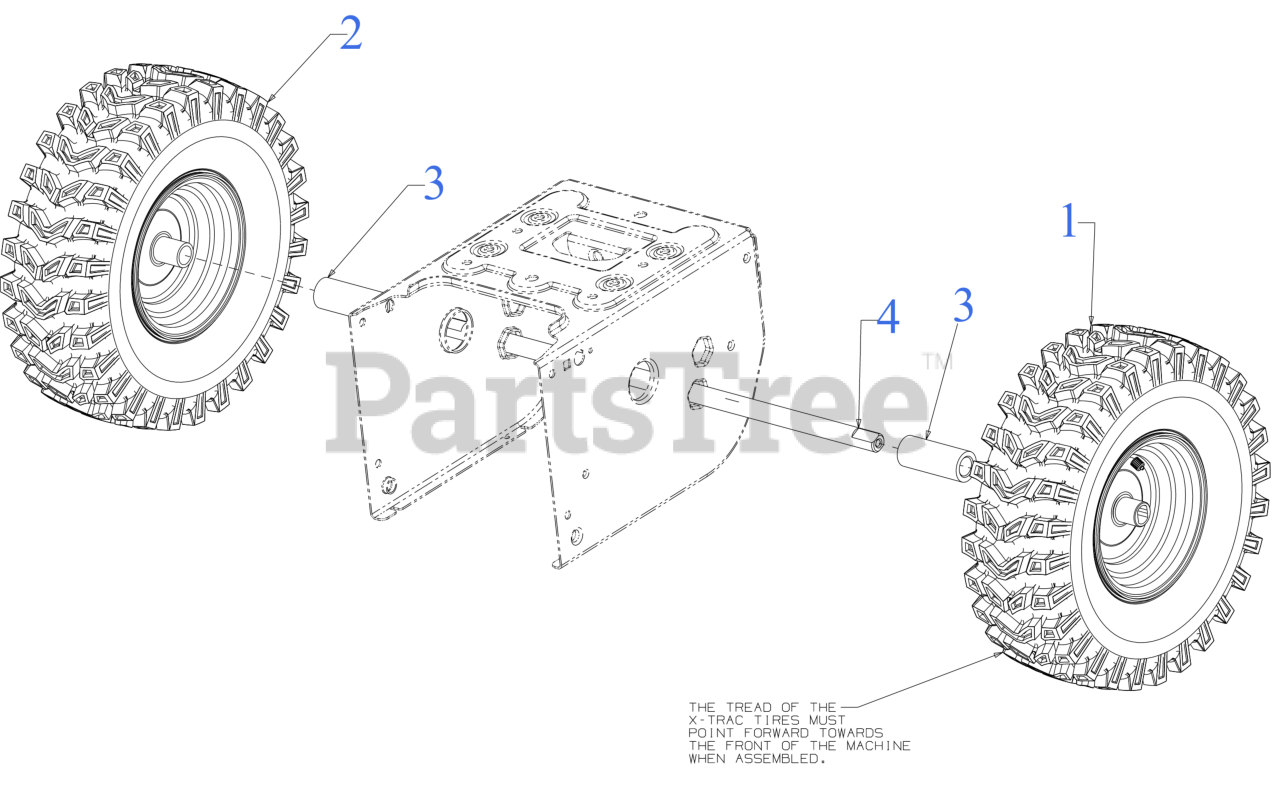

Wheels & Axle Parts Diagram

  • Title

1

WHL:COMPL:15X5.00-6 X-TRAC:LH

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

1

Cub Cadet 634-04172A

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 634-04172A-0499

RIM ASM 6X3.25 - CUB BEIGE (0499)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0674

RIM ASM 6X3.25 W/V - YARDMAN YELLOW (0674)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4028

RIM ASM 6X3.25 W/V - SEARS YELLOW (4028)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4042

RIM ASM 6X3.25 W/V - CRAFTSMAN GRAY (4042)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4044

RIM ASM 6X3.25 W/V - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 934-0255

TUBELESS AIR VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 734-07183

TIRE:X-TRAC:15X5.00-6

Note: (Not Shown)

$72.99

$

Usually ships in 0 days

0

2

WHL:COMPL:15X5.00-6 X-TRAC:RH

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

2

Cub Cadet 634-04172A

RIM ASSEMBLY (6 x 3.25) W/VALVE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 634-04172A-0499

RIM ASM 6X3.25 - CUB BEIGE (0499)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0662

RIM ASM 6X3.25 W/V - OYSTER GRAY (0662)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-0674

RIM ASM 6X3.25 W/V - YARDMAN YELLOW (0674)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4028

RIM ASM 6X3.25 W/V - SEARS YELLOW (4028)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4042

RIM ASM 6X3.25 W/V - CRAFTSMAN GRAY (4042)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04172A-4044

RIM ASM 6X3.25 W/V - CRAFTSMAN RED (4044)

$50.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 934-0255

TUBELESS AIR VALVE

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 734-07183

TIRE:X-TRAC:15X5.00-6

Note: (Not Shown)

$72.99

$

Usually ships in 0 days

0

3

Cub Cadet 731-04873

WHEEL SPACER 1.25ODX.75X3.00

$10.99

$

In Stock, Qty 13

0

4

Cub Cadet 738-04493

WHEEL AXLE SHAFT .75 x 22"
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 7

0
