2X 24 (31AM5BTR709) - Cub Cadet 2X 24" Snow Thrower (2018) Auger Housing Parts Diagram

2X 24" Snow Thrower

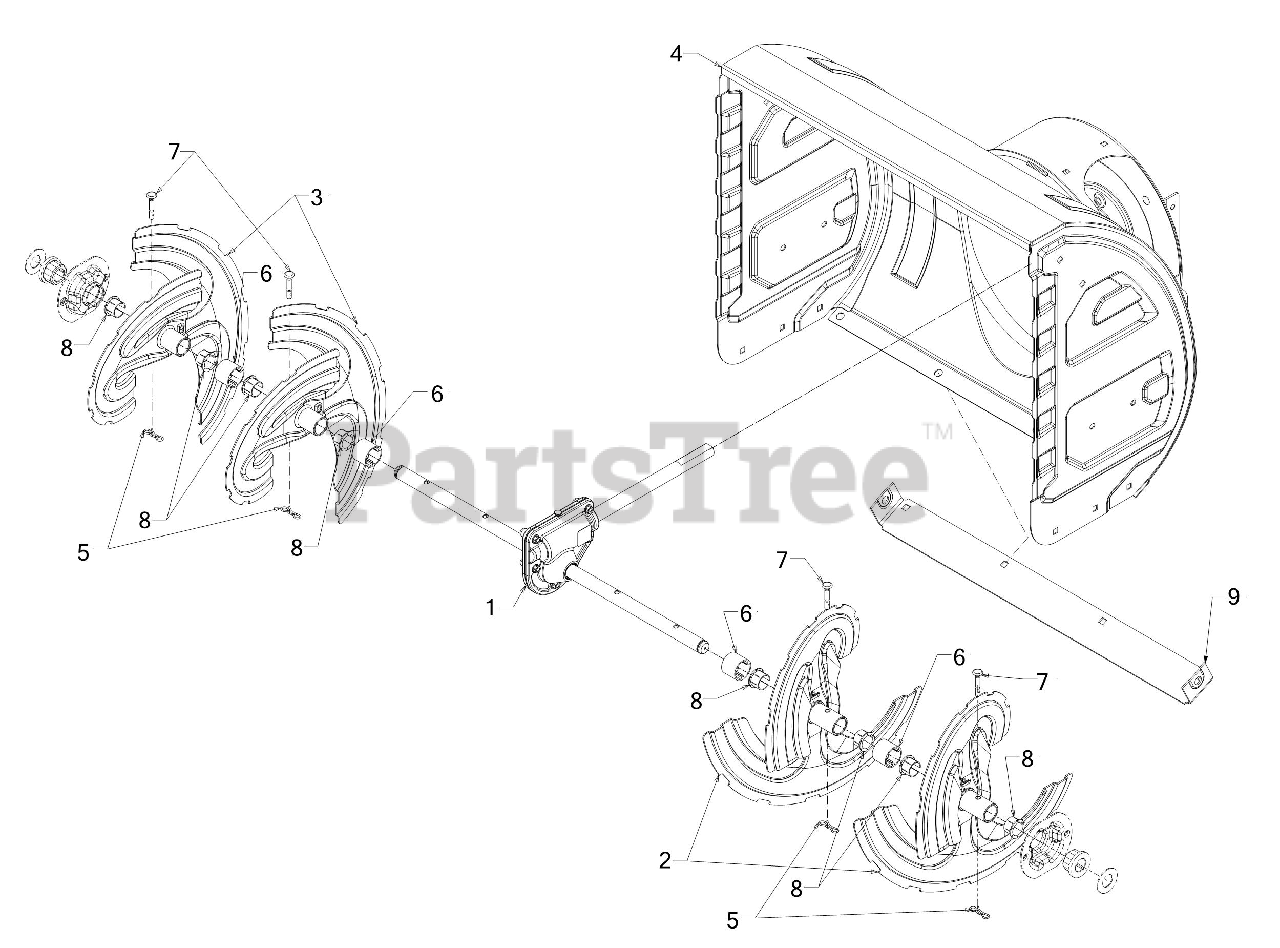

Auger Housing Parts Diagram

  • Title

1

Cub Cadet 918-04171C

24" GEARBOX ASSEMBLY

$407.99

$

In Stock, only 2 left!

0

1

Cub Cadet 918-0123A

REDUCER HOUSING ASSEMBLY (RH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 18

0

1

Cub Cadet 918-0123A

HOUSING ASSEMBLY (RH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 18

0

1

Cub Cadet 921-0338

SEAL .750 x 1.00 x .125

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

1

Cub Cadet 741-0661B

FLANGE BEARING

Note: (Not Shown)

$10.99

$

In Stock, Qty 11

0

1

Cub Cadet 918-0124A

REDUCER HOUSING ASSEMBLY (LH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 15

0

1

Cub Cadet 918-0124A

HOUSING ASSEMBLY (LH)

Note: (Not Shown)

$52.99

$

In Stock, Qty 15

0

1

Cub Cadet 921-0338

SEAL .750 x 1.00 x .125

Note: (Not Shown)

$7.49

$

In Stock, Qty 20+

0

1

Cub Cadet 741-0661B

FLANGE BEARING

Note: (Not Shown)

$10.99

$

In Stock, Qty 11

0

1

Cub Cadet 710-0642

SCREW 1/4-20 x .750

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 914-0161

KEY 3/16 x 5/8 H

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 715-04021

DOWEL PIN

Note: (Not Shown)

$4.49

$

In Stock, Qty 15

0

1

Cub Cadet 917-04126

WORM SHAFT

Note: (Not Shown)

$79.99

$

In Stock, Qty 11

0

1

Cub Cadet 917-04861

WORM GEAR 20T

Note: (Not Shown)

$43.99

$

In Stock, Qty 20+

0

1

Cub Cadet 718-04071

COLLAR-THRUST .756ID x .600

Note: (Not Shown)

$7.99

$

In Stock, Qty 9

0

1

Cub Cadet 721-0325

PLUG

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 721-0327

OIL SEAL .75 x 1.131 x .188

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

1

Cub Cadet 936-0351

THRUST WASHER
(Superseded to 736-0351)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

1

Cub Cadet 736-3084

FLAT WASHER

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

1

Cub Cadet 737-0168A

ALVANIA GREASE

Note: (Not Shown)

$30.99

$

In Stock, Qty 14

0

1

Cub Cadet 741-0662

FLANGE BEARING

Note: (Not Shown)

$10.99

$

In Stock, Qty 17

0

1

Cub Cadet 741-0663

FLANGE BEARING

Note: (Not Shown)

$9.99

$

In Stock, Qty 20+

0

1

Cub Cadet 711-04285A

24" AUGER SHAFT

Note: (Not Shown)

$90.99

$

In Stock, only 3 left!

0

2

Cub Cadet 684-04107A-0637

AUGER ASSEMBLY (LH)

$89.99

$

In Stock, Qty 20+

0

2

Cub Cadet 790-00107

SPIRAL - 30" x 12"

$

$

Currently unavailable

3

Cub Cadet 684-04108A-0637

AUGER ASSEMBLY (RH)

$94.99

$

In Stock, Qty 10

0

3

Cub Cadet 790-00106

SPIRAL - 30'' x 12''

$

$

Currently unavailable

3

Cub Cadet 790-00107

SPIRAL - 30" x 12"

$

$

Currently unavailable

4

Cub Cadet 684-05197

AUGER HOUSING ASSEMBLY
(Superseded to 684-05197A)

Variations

Cub Cadet 684-05197-4021

HSG ASM-AUGER 24" - CUB YELLOW 2 (4021)

$316.99

$

Usually ships in 3-6 days

0

$255.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

8

Cub Cadet 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 790-00120-4021

24" SHAVE PLATE
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0
