2P70MU - Troy-Bilt Engine 2P70MU Crankcase Parts Diagram

Engine

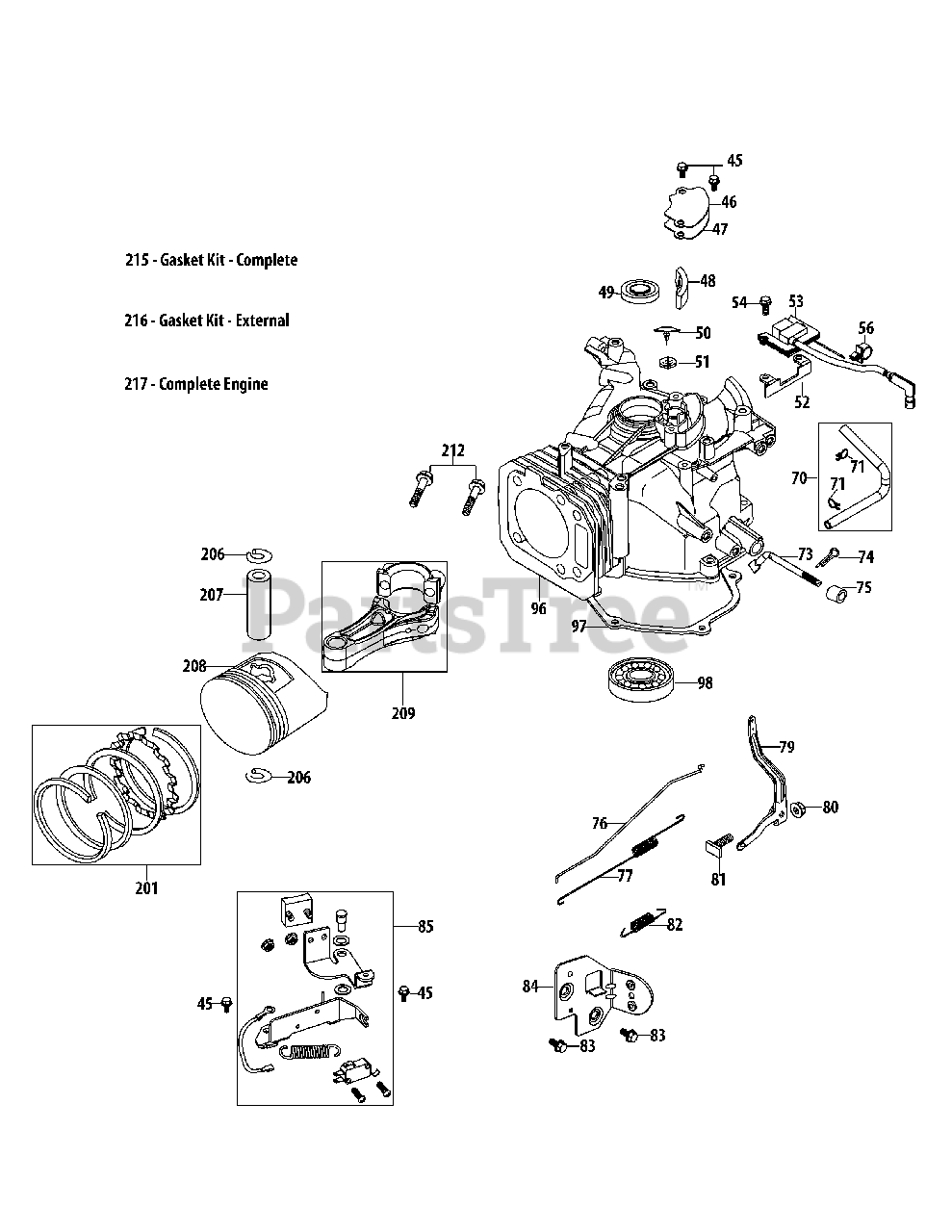

2P70MU Crankcase Parts Diagram

  • Title

45

Troy-Bilt 710-04916

Bolt M6X14

$4.49

$

In Stock, Qty 12

0

46

Troy-Bilt 951-12684

Breather Cover Plate

$6.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 951-11729

Breather Gasket

$5.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 951-11762

Breather Screen

$

$

Not available

49

Troy-Bilt 951-11545

Upper Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

50

Troy-Bilt 951-12685

Breather Valve

$5.99

$

In Stock, Qty 11

0

51

Troy-Bilt 951-12686

Breather Valve Base

$5.99

$

In Stock, only 1 left!

0

52

Troy-Bilt 951-11619

Ignition Coil Bracket

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 951-10854

Ignition Coil Assembly

$96.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 710-04979

Bolt M6X18

$3.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 951-11618

Ignition Wire Clip

$3.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 951-11260

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 714-04074

Governor Shaft Arm Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

75

Troy-Bilt 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

76

Troy-Bilt 951-11259

Throttle Linkage

$7.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

79

Troy-Bilt 951-11238

Governor Arm

$10.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 712-04212

Governor Arm Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

82

Troy-Bilt 951-11273

Governor Spring

$6.99

$

In Stock, only 1 left!

0

83

Troy-Bilt 710-04915

Bolt M6X12

$4.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 951-12472

Primer Bracket

$

$

Not available

85

Troy-Bilt 951-10858B

Brake Assembly

$

$

Not available

96

Troy-Bilt 951-10857C

Short Block Assembly

Note: (Incl.45-51,61,73-75,96-99,103,113-118,128-130,138,167,168,184,187,196,199,200,201,206-209)

$

$

Not available

97

Troy-Bilt 951-11763

Crankcase Cover Gasket

$13.99

$

Usually ships in 3-6 days

0

98

Troy-Bilt 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

201

Troy-Bilt 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

206

Troy-Bilt 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

207

Troy-Bilt 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

208

Troy-Bilt 951-11634

Piston

$

$

Not available

209

Troy-Bilt 951-11768

Connecting Rod Assembly

$

$

Not available

212

Troy-Bilt 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

215

Troy-Bilt 951-10416A

Gasket Kit - Complete

Note: (Incl.47,49,75,97,103,114,130,166,168,184,187,196)

$

$

Not available

216

Troy-Bilt 951-10417A

Gasket Kit - External

Note: (Incl.49,103,114,166,168,184,187)

$44.99

$

Usually ships in 3-6 days

0

217

Troy-Bilt 952Z2P70MU

Complete Engine

$

$

Not available
