2P70M0D - Cub Cadet Engine 2P70M0D Crankshaft & Crankcase Cover Parts Diagram

Engine

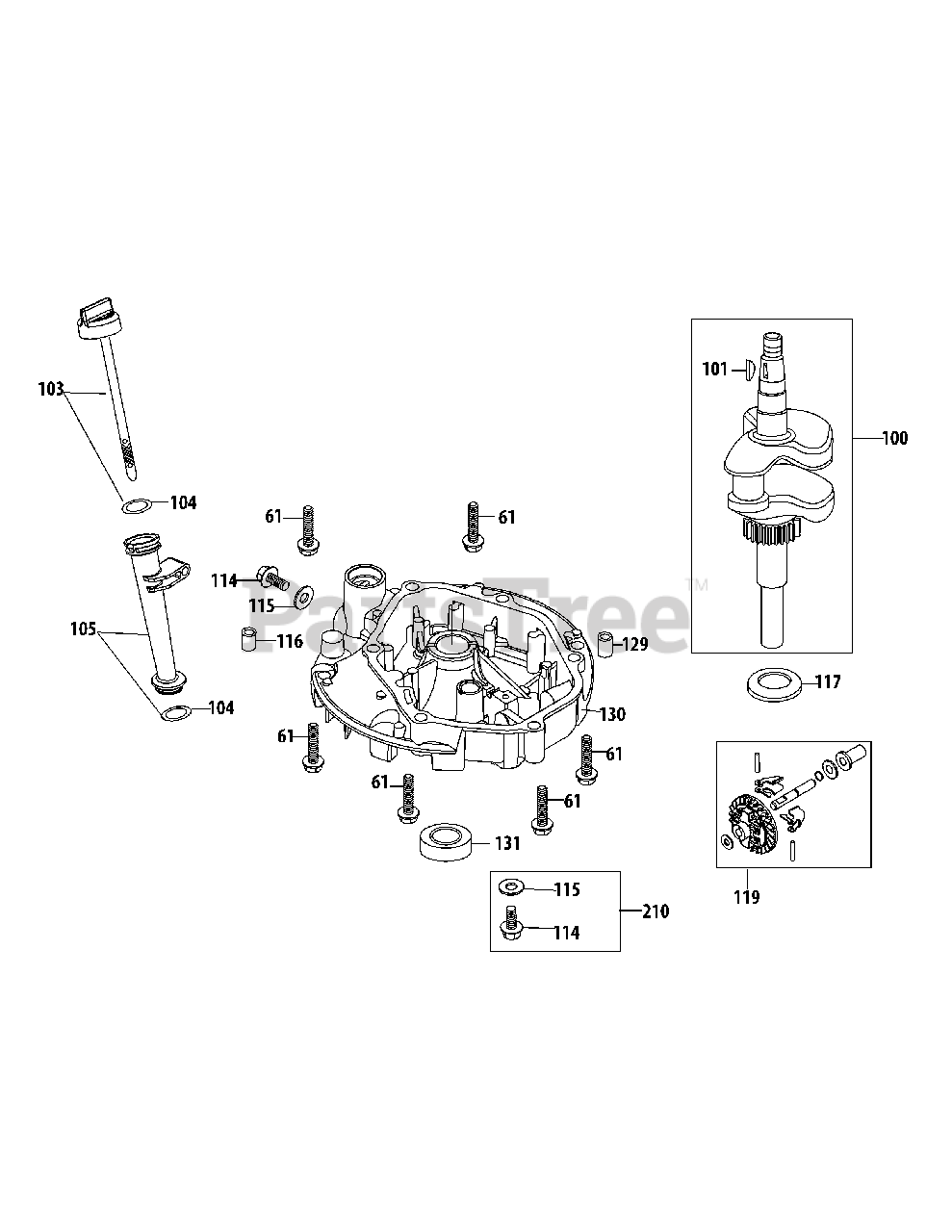

2P70M0D Crankshaft & Crankcase Cover Parts Diagram

  • Title

61

Cub Cadet 710-04922

Bolt M8X50

$4.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 951-11624

Crankshaft Assembly

$142.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

103

Cub Cadet 951-11764B

Dipstick Assembly

$15.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 951-11547

Dipstick / Oil Fill Tube O-Ring

$4.49

$

In Stock, only 1 left!

0

105

Cub Cadet 951-11765A

Oil Fill Tube Assemlby

$19.99

$

In Stock, only 1 left!

0

114

Cub Cadet 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

115

Cub Cadet 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

116

Cub Cadet 715-04089

Crankcase Cover Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

119

Cub Cadet 951-11626

Governor Gear/Shaft Assembly

$

$

Not available

129

Cub Cadet 715-04092

Crankcase Cover Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

130

Cub Cadet 951-11794

Crankcase Cover

$93.99

$

Usually ships in 3-6 days

0

131

Cub Cadet 951-11627

Lower Crankshaft Seal

$

$

Not available

210

Cub Cadet 951-10370

Oil Drain Plug And Washer Assy

$9.49

$

Usually ships in 3-6 days

0
