2P70M0C - Troy-Bilt Engine 2P70M0C Cylinder Head Parts Diagram

Engine

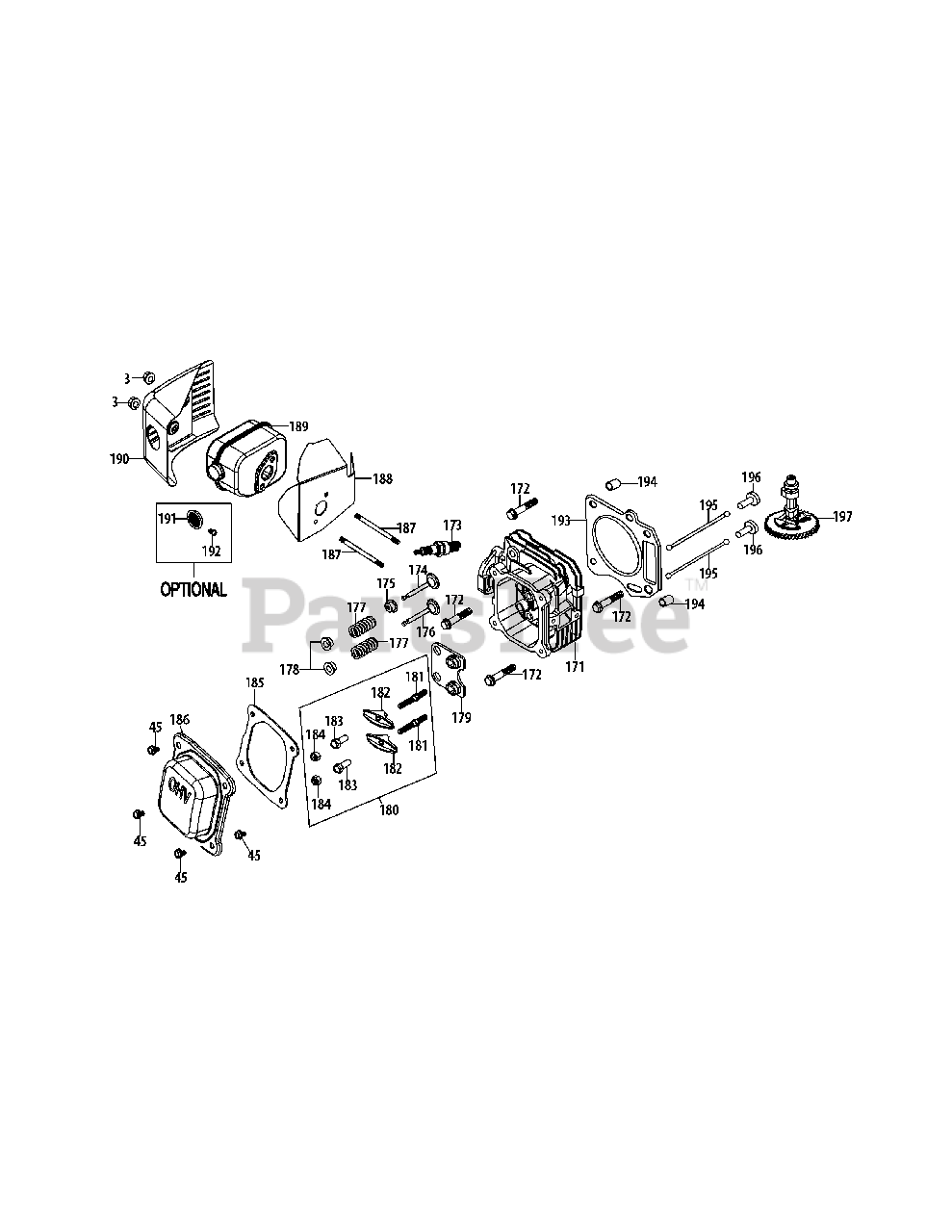

2P70M0C Cylinder Head Parts Diagram

  • Title

3

Troy-Bilt 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-04916

Bolt M6×14

$4.49

$

In Stock, Qty 12

0

171

Troy-Bilt 951-10413B

Cylinder Head Assembly

Note: (Incl.168,169,171,174-179,181-185,188,193)

$187.99

$

Usually ships in 3-6 days

0

172

Troy-Bilt 710-04982

Head Bolt M8×54

$3.99

$

Usually ships in 3-6 days

0

173

Troy-Bilt 951-10292

Spark Plug/F6Rtc
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

174

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

175

Troy-Bilt 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

176

Troy-Bilt 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

177

Troy-Bilt 951-12116

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

178

Troy-Bilt 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

179

Troy-Bilt 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

180

Troy-Bilt 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

181

Troy-Bilt 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

182

Troy-Bilt 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

183

Troy-Bilt 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

184

Troy-Bilt 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

185

Troy-Bilt 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

186

Troy-Bilt 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

187

Troy-Bilt 710-05094

Muffler Stud M6x95

$4.49

$

In Stock, Qty 20+

0

187

Troy-Bilt 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, Qty 10

0

188

Troy-Bilt 951-12474

Muffler Gasket

$

$

Not available

189

Troy-Bilt 951-10295

Muffler Assembly
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

190

Troy-Bilt 951-10411

Muffler Shield

$31.99

$

Usually ships in 3-6 days

0

191

Troy-Bilt 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

192

Troy-Bilt 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

193

Troy-Bilt 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

194

Troy-Bilt 715-04090

Cylinder Head Dowel 10x16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

195

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

196

Troy-Bilt 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

197

Troy-Bilt 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10870

Cylinder Head Service Kit

Note: Not shown (Incl.172,175,185,193)

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10417A

Gasket Kit - External

Note: Not shown (Incl.47,105,115,167,169,185,188)

$44.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-10416A

Gasket Kit - Complete

Note: Not shown (Incl.47,49,76,99,105,115,131,167,169,185,188,193)

$

$

Not available
