2P70M0A - Troy-Bilt Engine Engine Assembly 2P70M0A Parts Diagram

Engine

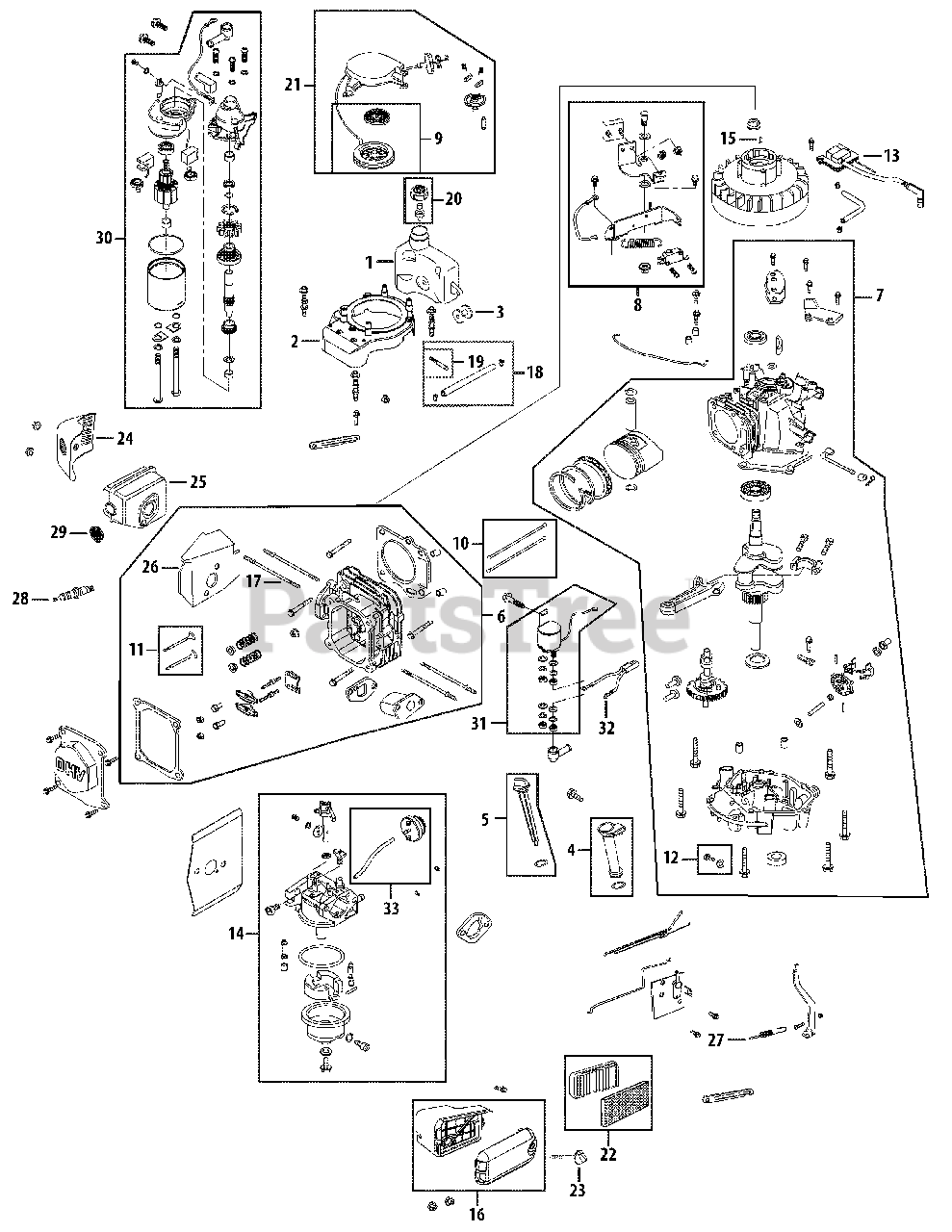

Engine Assembly 2P70M0A Parts Diagram

  • Title
1

Troy-Bilt 751-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 751-10855

Flywheel Shroud
(Superseded to 951-10855)

$48.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 751-10335

Rubber Fuel Tank Mounting Washer
(Superseded to 951-10335)

$5.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 751-10334

Oil Filler Tube Assembly
(Superseded to 951-10334)

$22.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 751-10852

Dipstick Assembly
(Superseded to 951-10852)

$

$

Not available

6

Troy-Bilt 751-10413

Cylinder Head Complete
(Superseded to 951-10413B)

$187.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 751-10857

Short Block Assembly
(Superseded to 951-10857B)

$

$

Not available

8

Troy-Bilt 751-10858

Stop Switch and Brake Assembly
(Superseded to 951-10858B)

$

$

Not available

9

Troy-Bilt 751-10319

Recoil Spring and Pulley Assembly
(Superseded to 951-10319)

$47.99

$

In Stock, only 3 left!

0

10

Troy-Bilt 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 751-10345

Valve Kit
(Superseded to 951-10345)

$65.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 751-10370

Oil Drain Plug and Washer Assembly
(Superseded to 951-10370)

$9.49

$

Usually ships in 3-6 days

0

13

Troy-Bilt 751-10854

Ignition Coil
(Superseded to 951-10854)

$96.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 751-10881

Carburetor Assembly
(Superseded to 951-10881)

$90.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 751-10307

Flywheel Key
(Superseded to 951-10307)

$2.49

$

In Stock, Qty 10

0

16

Troy-Bilt 751-10856

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$39.99

$

In Stock, only 4 left!

0

17

Troy-Bilt 751-10342

Muffler Stud Assembly
(Superseded to 951-10342)

$9.99

$

In Stock, Qty 10

0

18

Troy-Bilt 751-10364

Fuel Line Kit
(Superseded to 951-10364)

Note: (Inc. hoses, clamps & Filter)

$28.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 751-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 751-10300

Fuel Cap Assembly
(Superseded to 951-10300)

$11.99

$

In Stock, Qty 10

0

21

Troy-Bilt 751-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 9

0

22

Troy-Bilt 751-10298

Air Cleaner Kit
(Superseded to 951-10298)

$17.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 751-10297

Air Cleaner Thumb Screw
(Superseded to 951-10297)

$5.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 751-10411

Muffler Guard
(Superseded to 951-10411)

$31.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 751-10403

Muffler
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 751-10402

Muffler Gasket /Heat Shield
(Superseded to 951-10402)

$19.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 751-10387

Governor Return Spring
(Superseded to 951-10387)

$7.49

$

In Stock, Qty 10

0

28

Troy-Bilt 751-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 751-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 751-10880

Electric Starter
(Superseded to 951-10880A)

$154.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 751-10823

Relay Assembly
(Superseded to 951-10823)

$33.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 751-10824

Relay Harness Connector
(Superseded to 951-10824)

$12.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 751-10888

Primer Assembly
(Superseded to 951-10888B)

$15.99

$

In Stock, only 4 left!

0

Troy-Bilt 751-10890

Carburetor Repair Kit - Major
(Superseded to 951-10890)

Note: Not Shown

$53.99

$

Usually ships in 3-6 days

0

Troy-Bilt 751-10859

Cylinder Head Service Kit
(Superseded to 951-10870)

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

Troy-Bilt 751-10416

Gasket Kit - Complete
(Superseded to 951-10416A)

Note: Not Shown

$

$

Not available

Troy-Bilt 751-10417

Gasket Kit - External
(Superseded to 951-10417A)

Note: Not Shown

$44.99

$

Usually ships in 3-6 days

0

Troy-Bilt 752Z2P70M0A

Engine - Complete
(Superseded to 952Z2P70MU)

Note: Not Shown

$

$

Not available
