2P70M0 - MTD Engine Engine Assembly 2P70M0 Parts Diagram

Engine

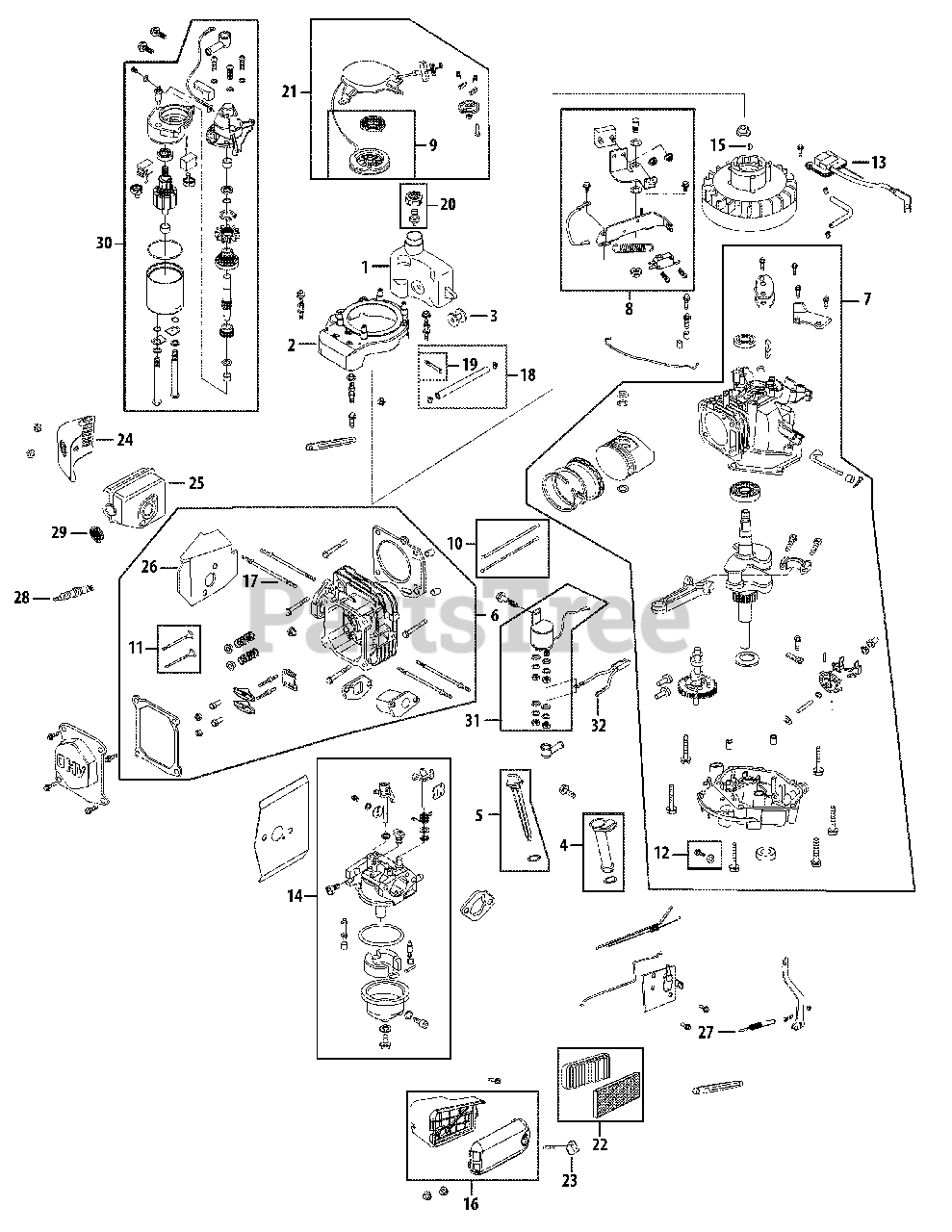

Engine Assembly 2P70M0 Parts Diagram

  • Title

1

MTD 751-10368

Fuel Tank
(Superseded to 951-12739)

$61.99

$

Usually ships in 3-6 days

0

2

MTD 751-10855

Flywheel Shroud
(Superseded to 951-10855)

$48.99

$

Usually ships in 3-6 days

0

3

MTD 751-10335

Rubber Fuel Tank Mounting Washer
(Superseded to 951-10335)

$5.99

$

Usually ships in 3-6 days

0

4

MTD 751-10334

Oil Filler Tube Assembly
(Superseded to 951-10334)

$22.99

$

Usually ships in 3-6 days

0

5

MTD 751-10852

Dipstick Assembly
(Superseded to 951-10852)

$

$

Not available

6

MTD 751-10413

Cylinder Head Complete
(Superseded to 951-10413B)

$187.99

$

Usually ships in 3-6 days

0

7

MTD 751-10857

Short Block Assembly
(Superseded to 951-10857B)

$

$

Not available

8

MTD 751-10858

Stop Switch and Brake Assembly
(Superseded to 951-10858B)

$

$

Not available

9

MTD 751-10319

Recoil Spring and Pulley Assembly
(Superseded to 951-10319)

$47.99

$

In Stock, only 3 left!

0

10

MTD 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

11

MTD 751-10345

Valve Kit
(Superseded to 951-10345)

$65.99

$

Usually ships in 3-6 days

0

12

MTD 751-10370

Oil Drain Plug and Washer Assembly
(Superseded to 951-10370)

$9.49

$

Usually ships in 3-6 days

0

13

MTD 751-10854

Ignition Coil
(Superseded to 951-10854)

$96.99

$

Usually ships in 3-6 days

0

14

MTD 751-10310

Carburetor Assembly
(Superseded to 951-10310)

$106.99

$

In Stock, only 1 left!

0

15

MTD 751-10307

Flywheel Key
(Superseded to 951-10307)

$2.49

$

Usually ships in 3-6 days

0

16

MTD 751-10856

Air Cleaner Housing Assembly Complete
(Superseded to 951-10412B)

$39.99

$

In Stock, only 4 left!

0

17

MTD 751-10342

Muffler Stud Assembly
(Superseded to 951-10342)

$9.99

$

In Stock, only 2 left!

0

18

MTD 751-10364

Fuel Line Kit
(Superseded to 951-10364)

Note: (Inc. hoses, clamps & filter)

$28.99

$

In Stock, only 2 left!

0

19

MTD 751-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

MTD 751-10300

Fuel Cap Assembly
(Superseded to 951-10300)

$11.99

$

In Stock, only 1 left!

0

21

MTD 751-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 7

0

22

MTD 751-10298

Air Cleaner Kit
(Superseded to 951-10298)

$17.99

$

In Stock, Qty 20+

0

23

MTD 751-10297

Air Cleaner Thumb Screw
(Superseded to 951-10297)

$5.99

$

In Stock, only 2 left!

0

24

MTD 751-10411

Muffler Guard
(Superseded to 951-10411)

$31.99

$

Usually ships in 3-6 days

0

25

MTD 751-10403

Muffler
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

26

MTD 751-10402

Muffler Gasket /Heat Shield
(Superseded to 951-10402)

$19.99

$

Usually ships in 3-6 days

0

27

MTD 751-10387

Governor Return Spring
(Superseded to 951-10387)

$7.49

$

In Stock, Qty 10

0

28

MTD 751-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

MTD 751-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

30

MTD 751-10822

Electric Starter
(Superseded to 951-10822)

$149.99

$

Usually ships in 3-6 days

0

31

MTD 751-10823

Relay Assembly
(Superseded to 951-10823)

$33.99

$

Usually ships in 3-6 days

0

32

MTD 751-10824

Relay Harness Connector
(Superseded to 951-10824)

$12.99

$

Usually ships in 3-6 days

0

MTD 751-10326

Carburetor Repair Kit - Major
(Superseded to 951-12425A)

Note: (Not Shown)

$59.99

$

In Stock, only 1 left!

0

MTD 751-10870

Cylinder Head Service Kit
(Superseded to 951-10870)

Note: (Not Shown)

$18.99

$

Usually ships in 3-6 days

0

MTD 751-10416

Gasket Kit - Complete
(Superseded to 951-10416A)

Note: (Not Shown)

$

$

Not available

MTD 751-10417

Gasket Kit - External
(Superseded to 951-10417A)

Note: (Not Shown)

$44.99

$

Usually ships in 3-6 days

0

MTD 951-11253

Piston Ring Set
(Superseded to 951-12111)

Note: (Not Shown)

$6.99

$

In Stock, only 2 left!

0

MTD 952Z2P70M0

Engine - Complete
(Superseded to 952Z2P70MU)

Note: (Not Shown)

$

$

Not available
