2P4C3 A - Electrolux/AYP Lawn Tractor (1993) ENGINE Parts Diagram

Lawn Tractor

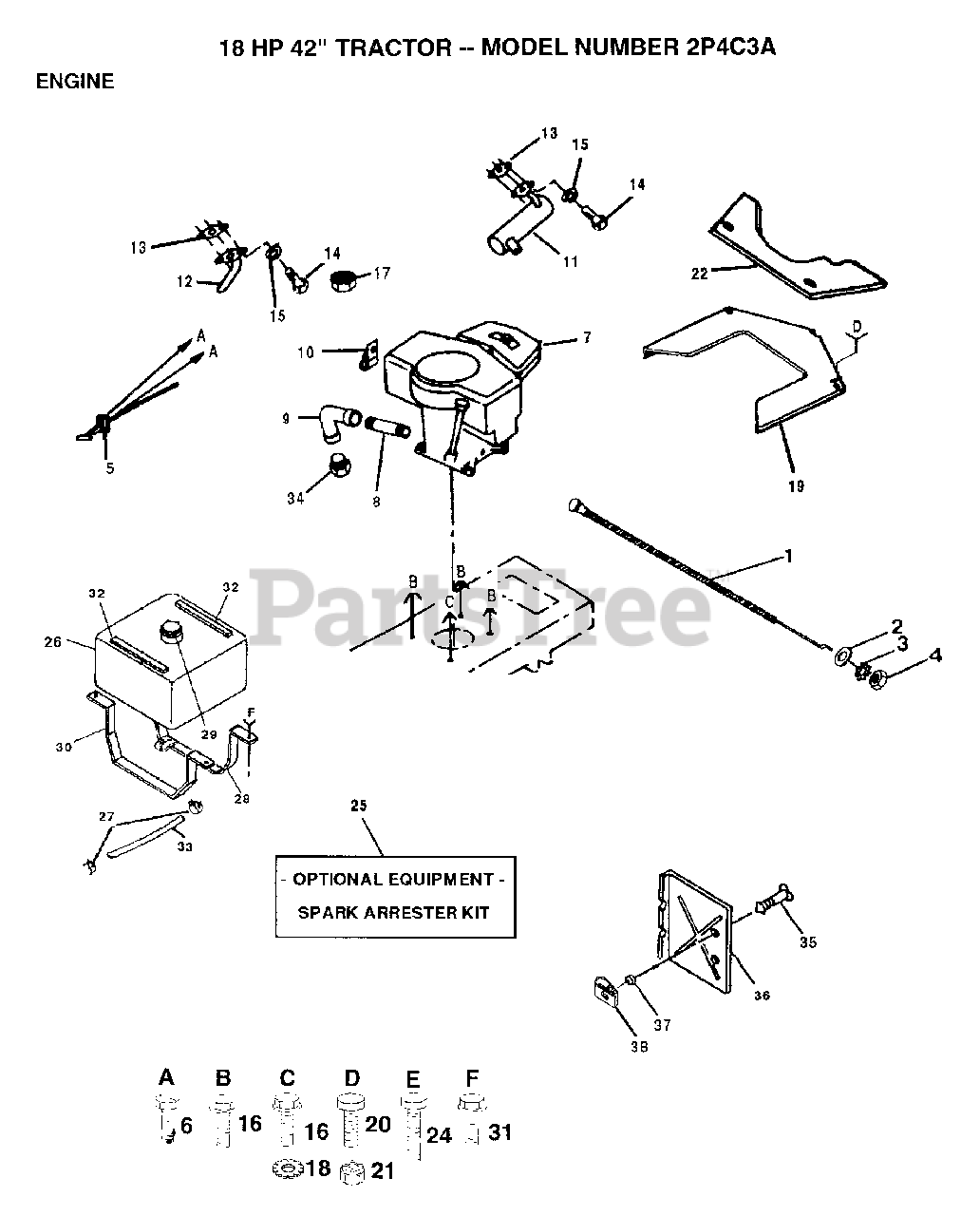

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132779

CHOKE CONTROL
(Superseded to 532132779)

$21.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 132773

SUB= 133439

$

$

Not available

6

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

$

$

Not available

8

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

9

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

10

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

11

$

$

Not available

12

Electrolux/AYP 100229L

EXHAUST TUBE T

$

$

Not available

13

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

14

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

15

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 73510600

NUT
(Superseded to 873510600)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 123190X

SHIELD HEAT FRT

$

$

Not available

20

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

21

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 109740X

REAR BAFFLE T

$

$

Not available

25

Electrolux/AYP 132922

SPARK ARREST KIT
(Superseded to 539132922)

$72.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 127813

SUB= 141291

$

$

Not available

27

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 136360

STRAP ASM. F.TANK

$

$

Not available

29

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 123803X

"STRAP,TANK"

$2.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 126564X

"STRIP,FORM"
(Superseded to 583671601)

$2.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 8543R

FUEL LINE T
(Superseded to 532008543)

$10.99

$

Usually ships in 3-10 days

0

34

CHECK WITH SUPPLIER

$

$

Not available

35

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 133746

HEAT SHIELD
(Superseded to 133747)

$

$

Not available

37

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0
