2N151 B - Electrolux/AYP Walk-Behind Mower (1995) ROTARY LAWN MOWER Parts Diagram

Walk-Behind Mower

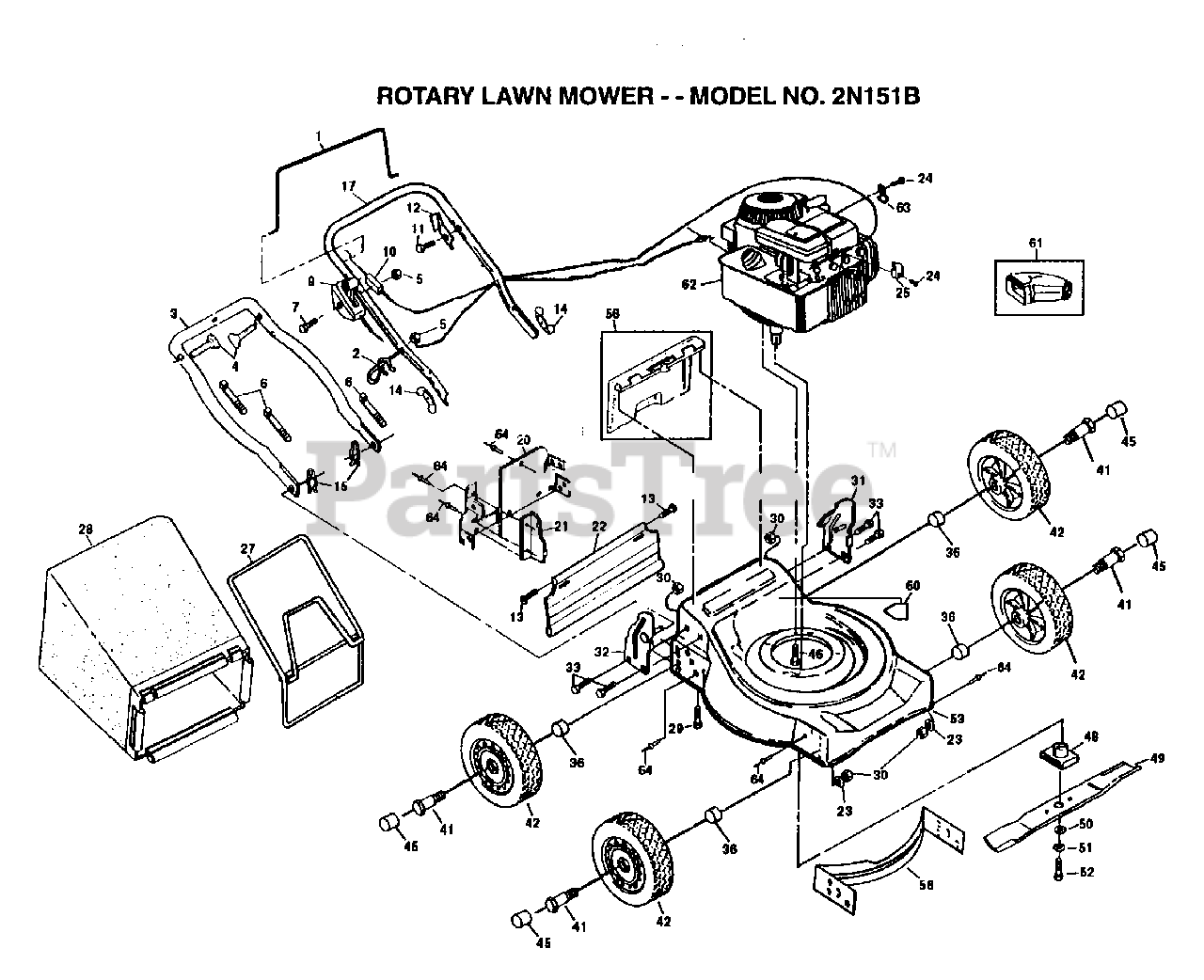

ROTARY LAWN MOWER Parts Diagram

  • Title
1

Electrolux/AYP 86902

CONTROL BAR PM
(Superseded to 532086902)

$

$

Not available

2

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

3

Electrolux/AYP 84676X479

SUB= 151516X479

$

$

Not available

4

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 144929

SCREW.HXHD.WASH.
(Superseded to 532183365)

$6.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 851462

CONTROL THROTTLE
(Superseded to 583120101)

$15.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 130861

"CABLE,ENG ZONE CO"
(Superseded to 532130861)

$

$

Not available

11

Electrolux/AYP 750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

12

Electrolux/AYP 850733X004

"BRKT,UPSTOP"
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

13

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 132649X479

SUB= 160223X479

$

$

Not available

20

Electrolux/AYP 700356X479

PLATE.BACK.20RD

$

$

Not available

21

$

$

Not available

22

Electrolux/AYP 140541

SKIRT.REAR.20RD.
(Superseded to 532189009)

$

$

Not available

23

Electrolux/AYP 74316

WASHER PM
(Superseded to 532074316)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 83816

SCREW PM
(Superseded to 532083816)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 213146

CABLE CLAMP

$

$

Not available

27

Electrolux/AYP 750532

FRAME.CATCHER.ASM

$

$

Not available

28

Electrolux/AYP 133266

GRASS BAG
(Superseded to 135074)

$

$

Not available

29

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

30

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

$

$

Not available

32

$

$

Not available

36

Electrolux/AYP 136624

SUB= 532136624
(Superseded to 532136624)

$9.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 67609

AXLE BOLT
(Superseded to 532179613)

$6.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 800220

WHEEL.ASM
(Superseded to 532146248)

$

$

Not available

45

Electrolux/AYP 800090

HUB CAP-PLASTIC
(Superseded to 584458901)

$18.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 850998

SCREW
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 850977

BLADE ADAPTOR
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

49

Electrolux/AYP 145106

BLADE.20.MULCH.AY
(Superseded to 532145106)

$20.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 751074

WASHER (HARDENED)

$

$

Not available

51

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 147768

SUB= 163765
(Superseded to 170627)

$115.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 147613

KIT.DOOR.RR.20STL

$

$

Not available

58

$

$

Not available

60

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

61

REFER TO IMAGE

$

$

Not available

62

REFER TO IMAGE

$

$

Not available

63

Electrolux/AYP 87930

GUIDE CLIP PM
(Superseded to 532087930)

$5.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 145653

MANUAL.OP.GEN.RTA
(Superseded to 582964701)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 147769

MANUAL.P.2N151B

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 700063X479

REAR BAFFLE
(Superseded to 532125035)

$9.49

$

Usually ships in 3-10 days

0
