2H4D3 B - Electrolux/AYP Lawn Tractor (1996) CHASSIS AND ENCLOSURES/TRACTOR Parts Diagram

Lawn Tractor

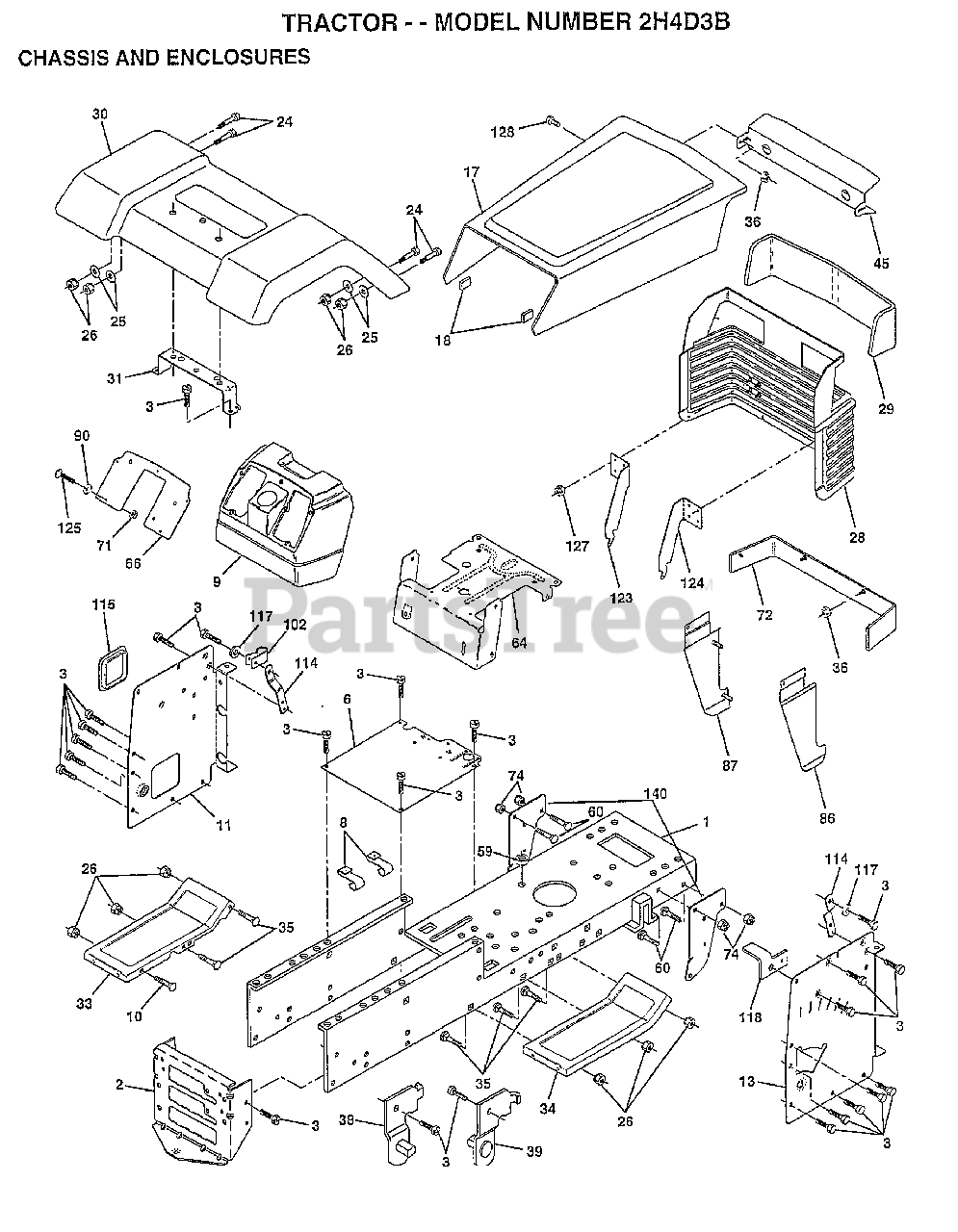

CHASSIS AND ENCLOSURES/TRACTOR Parts Diagram

  • Title
1

Electrolux/AYP 151169

CHASSIS WLDMT 11G

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 145208X016

SUB= 155924X015
(Superseded to 583681601)

$11.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 145218

PANEL.DASH.LH.
(Superseded to 532145218)

$

$

Not available

13

Electrolux/AYP 145223

PANEL.DASH.RH.NOT
(Superseded to 582963801)

$26.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123801X505

HOOD.ASM.YTGT.PNT

$106.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

$

$

Not available

30

Electrolux/AYP 109872X505

FENDER
(Superseded to 583689101)

$80.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 136619

BRKT FENDER
(Superseded to 532136619)

$

$

Not available

33

Electrolux/AYP 105476X505

FOOTREST LH
(Superseded to 532181164)

$43.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 105475X505

FOOTREST RH
(Superseded to 532181193)

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

59

$

$

Not available

64

Electrolux/AYP 150272

DASH.LOWER.LT
(Superseded to 583037501)

$21.99

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 140943X011

PLATE DASH SILKSC

$

$

Not available

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

72

Electrolux/AYP 110350X505

STRAP GRILLE 505

$

$

Not available

74

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 123764X505

PANEL.SIDE.RH.ASM

$4.49

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 123765X505

PANEL.SIDE.LH.ASN

$4.49

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

114

Electrolux/AYP 145349

BRACKET.SUPT.DASH
(Superseded to 532145349)

$

$

Not available

115

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

117

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 145595

BRACKET.CLUTCH.MC
(Superseded to 582964601)

$

$

Not available

123

Electrolux/AYP 149037

BRACKET.PICK.LH.

$

$

Not available

124

Electrolux/AYP 149036

BRACKET.PICK.RH.

$

$

Not available

125

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

127

Electrolux/AYP 120579X

PAL NUT
(Superseded to 583663301)

$2.99

$

Usually ships in 3-10 days

0

128

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0

140

Electrolux/AYP 150556

SUB= 158739
(Superseded to 532150556)

$

$

Not available

Electrolux/AYP 5479J

PLUG BUTTON T
(Superseded to 532005479)

$5.99

$

Usually ships in 3-10 days

0
