2H4D3 A - Electrolux/AYP Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

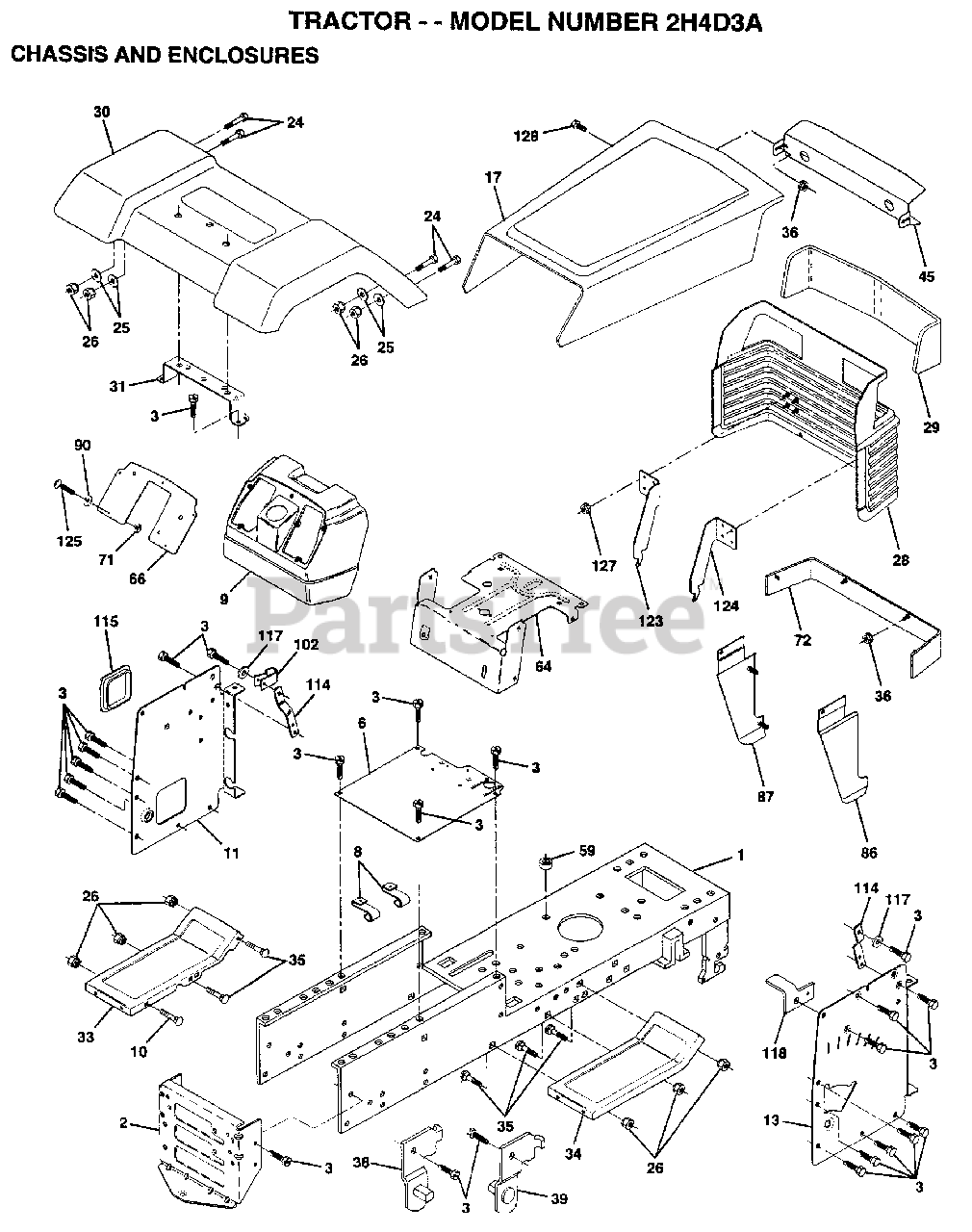

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 145501

CHASSIS.WLD.11GA
(Superseded to 532135034)

$

$

Not available

2

Electrolux/AYP 140356

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

6

145208x016

SUB= 155924X015

$

$

Not available

8

126471x

CLIP,INSULATOR

$

$

Not available

9

Electrolux/AYP 145203

DASH.PLASTIC.BLK

$

$

Not available

10

Murray 72140608

SUB= 72110608

$

$

Not available

11

Electrolux/AYP 145223

PANEL.DASH.RH.NOT
(Superseded to 582963801)

$26.99

$

Usually ships in 3-10 days

0

17

123801x505

HOOD.ASM.YTGT.PNT

$

$

Not available

24

Electrolux/AYP 74780616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

26

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140671

GRILLE ASM WELD

$

$

Not available

29

110898x

LENS T

$

$

Not available

30

109872x505

FENDER

$

$

Not available

31

Electrolux/AYP 136619

BRKT FENDER
(Superseded to 532136619)

$

$

Not available

33

105476x505

FOOTREST LH

$

$

Not available

34

105475x505

FOOTREST RH

$

$

Not available

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

108067x

PAL NUT LT

$

$

Not available

38

Electrolux/AYP 139886

BRACKET ASM LH
(Superseded to 532139886)

$8.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 139887

BRACKET ASM RH
(Superseded to 532139887)

$

$

Not available

45

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

59

110436x

Bushing Snap Split

$

$

Not available

64

Electrolux/AYP 145095

SUB= 150272
(Superseded to 532145095)

$

$

Not available

66

140943x011

PLATE DASH SILKSC

$

$

Not available

71

Electrolux/AYP 73640400

NUT HXKEP 1/4X20
(Superseded to 873640400)

$

$

Not available

72

110350x505

STRAP GRILLE 505

$

$

Not available

86

123764x505

PANEL.SIDE.RH.ASM

$

$

Not available

87

123765x505

PANEL.SIDE.LH.ASN

$

$

Not available

90

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

102

2751r

CLIP T

$

$

Not available

114

Electrolux/AYP 145349

BRACKET.SUPT.DASH
(Superseded to 532145349)

$

$

Not available

115

121794x

COVER ACCESS

$

$

Not available

117

Electrolux/AYP 144283

WASHER.SERRATED.
(Superseded to 532144283)

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 145595

BRACKET.CLUTCH.MC
(Superseded to 582964601)

$

$

Not available

123

Electrolux/AYP 144712

SUB= 149036
(Superseded to 149036)

$

$

Not available

124

Electrolux/AYP 144713

BRACKET.PICK.RH
(Superseded to 582962401)

$23.99

$

Usually ships in 3-10 days

0

125

Electrolux/AYP 74180412

SCREW
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

127

120579x

PAL NUT

$

$

Not available

128

124201x

SCREW SPECIAL

$

$

Not available

5479j

PLUG BUTTON T

$

$

Not available
