2D779 A - Electrolux/AYP Walk-Behind Mower 20" REAR BAGGER ROTARY MOWER Parts Diagram

Walk-Behind Mower

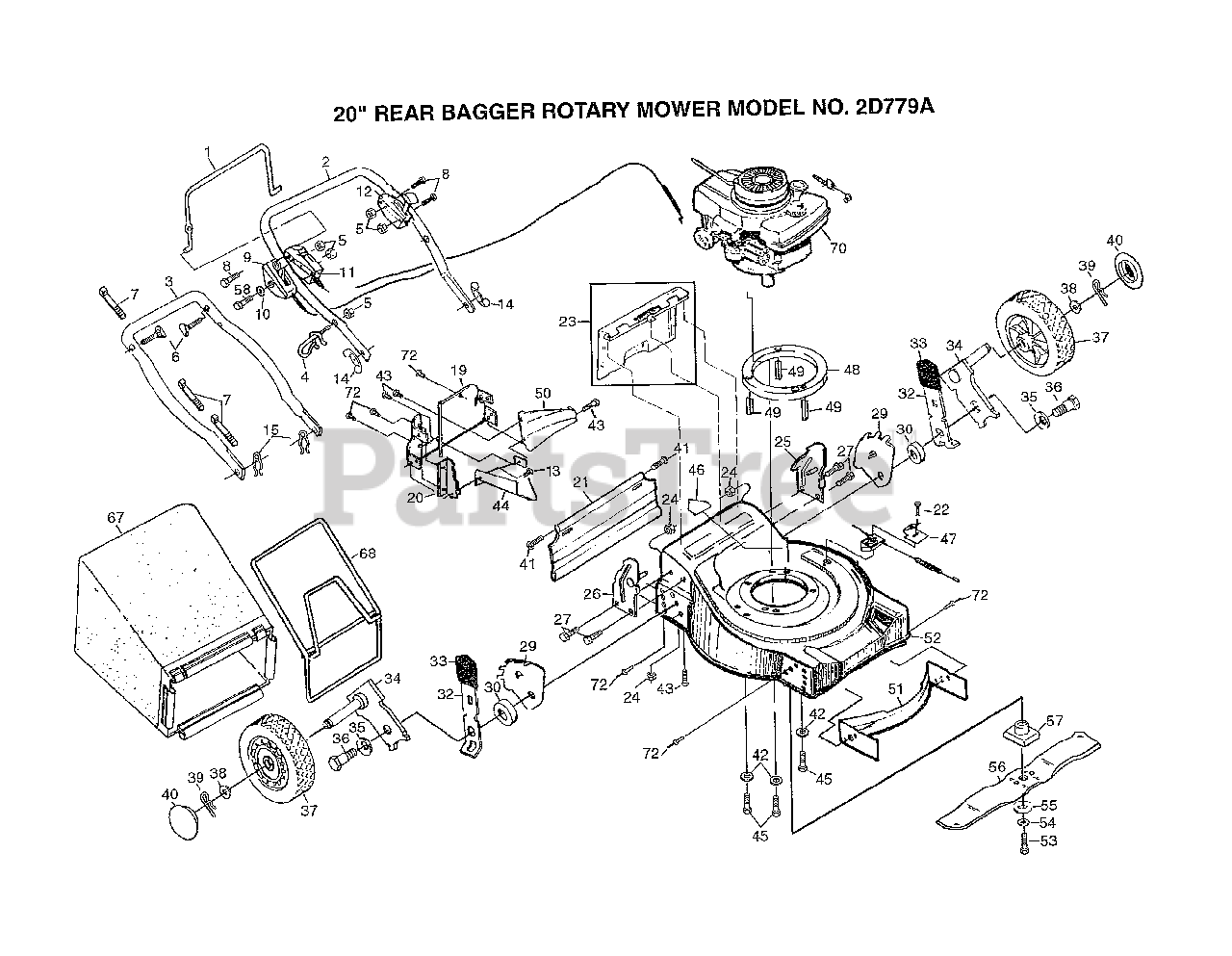

20" REAR BAGGER ROTARY MOWER Parts Diagram

  • Title

1

Electrolux/AYP 133006

CONTROL BAR
(Superseded to 539133006)

$3.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 132670X479

SUB= 154480X479

$

$

Not available

3

Electrolux/AYP 134081X479

SUB= 151590X479
(Superseded to 532151590)

$22.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 132001

ROPE GUIDE
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 63601

SUB= 73800400

$

$

Not available

6

Electrolux/AYP 131959

BOLT.HANDLE.LM
(Superseded to 532183724)

$

$

Not available

7

Electrolux/AYP 66426

SUB= 7192J
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 85692

SUB= 74250434

$

$

Not available

9

Electrolux/AYP 107244X

SUB= 107245X
(Superseded to 583654001)

$6.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 85723

WASHER PM
(Superseded to 532085723)

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 144025

CABLE MZR E/S

$61.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 133879

DRIVE CONTROL

$

$

Not available

13

Electrolux/AYP 86344

SCREW PM
(Superseded to 532086344)

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 128638

"NUT,WING PM"
(Superseded to 532128638)

$7.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 51793

HAIRPIN COTTER
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 700355X479

"PLATE.BACK.20"""

$

$

Not available

20

Electrolux/AYP 700363X479

BAFFLE.SIDE

$

$

Not available

21

Electrolux/AYP 133259

SUB= 140657

$

$

Not available

22

Electrolux/AYP 85768

"SCREW, HEX PM"

$

$

Not available

23

Electrolux/AYP 48257

"KIT, REAR DOOR PM"

$

$

Not available

24

Electrolux/AYP 751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 700913X479

SUB= 150956

$

$

Not available

26

Electrolux/AYP 700915X479

SUB= 150956

$

$

Not available

27

Electrolux/AYP 55187

SCREW
(Superseded to 532055187)

$6.49

$

In Stock, Qty 6

0

29

Electrolux/AYP 700325X007

BRACKET.ADJ.9POS.
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 84920

SUB= 146630

$2.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 700331X004

SPRING SELECTOR
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 87877

KNOB PM
(Superseded to 532087877)

$6.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 85021X004

AXLE ARM
(Superseded to 532187930)

$14.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 62335

"WASHER, BELLEVIL."
(Superseded to 532062335)

$9.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 142748

BOLT SHLD 3/8-16
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

37

Electrolux/AYP 800390

SUB= 146247
(Superseded to 532151155)

$31.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 52160

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

39

Electrolux/AYP 85179

RETAINER CLIP PM
(Superseded to 532085179)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 77400

HUB CAP
(Superseded to 532077400)

$7.49

$

In Stock, only 2 left!

0

41

Electrolux/AYP 88652

HINGE SCREW
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

42

Electrolux/AYP 53998

SUB= 19131216

$

$

Not available

43

Electrolux/AYP 54583

SCREW
(Superseded to 532054583)

$

$

Not available

44

Electrolux/AYP 133188X479

DISCHARGE GUARD

$

$

Not available

45

Electrolux/AYP 850999

SCREW
(Superseded to 532850999)

$7.49

$

In Stock, only 2 left!

0

46

Electrolux/AYP 107339X

DECAL HYT
(Superseded to 404763)

$2.49

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 88615

BRKT DRV COV

$

$

Not available

48

Electrolux/AYP 850988

ENGINE SPACER

$

$

Not available

49

Electrolux/AYP 850987

SUB= 850988

$

$

Not available

50

Electrolux/AYP 700063X479

REAR BAFFLE
(Superseded to 532125035)

$9.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 132198X479

SUB= 144961

$

$

Not available

52

Electrolux/AYP 702084

KIT.HSG.20RD.FWBD

$

$

Not available

53

Electrolux/AYP 851084

SCREW
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 851074

"WASHER,HARDEN"
(Superseded to 532851074)

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 850972

BLADE.STAND.20INC
(Superseded to 532145106)

$20.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 851514

ADAPTOR.BLADE.LM
(Superseded to 581547901)

$17.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 851185

SUB= 128889

$

$

Not available

67

Electrolux/AYP 132655

GRASS BAG
(Superseded to 583327701)

$72.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 133413

CATCHER FRAME
(Superseded to 532149555)

$

$

Not available

70

CHECK WITH SUPPLIER

$

$

Not available

72

Electrolux/AYP 128415

BLIND RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 851101

DECAL ELEC START ENGINE

$

$

Not available

Electrolux/AYP 140755

MANUAL OPR GEN SP

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 140756

NLA

$

$

Not available

Electrolux/AYP 144454

MANUAL.P.2D779A

$2.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 133414

HOUSING DECAL

$

$

Not available

Electrolux/AYP MA36

CLIPPING DEFL

$47.99

$

Usually ships in 3-10 days

0

Electrolux/AYP MK20FRD

"KIT, MULCHER 20"""

$53.99

$

Usually ships in 3-10 days

0
