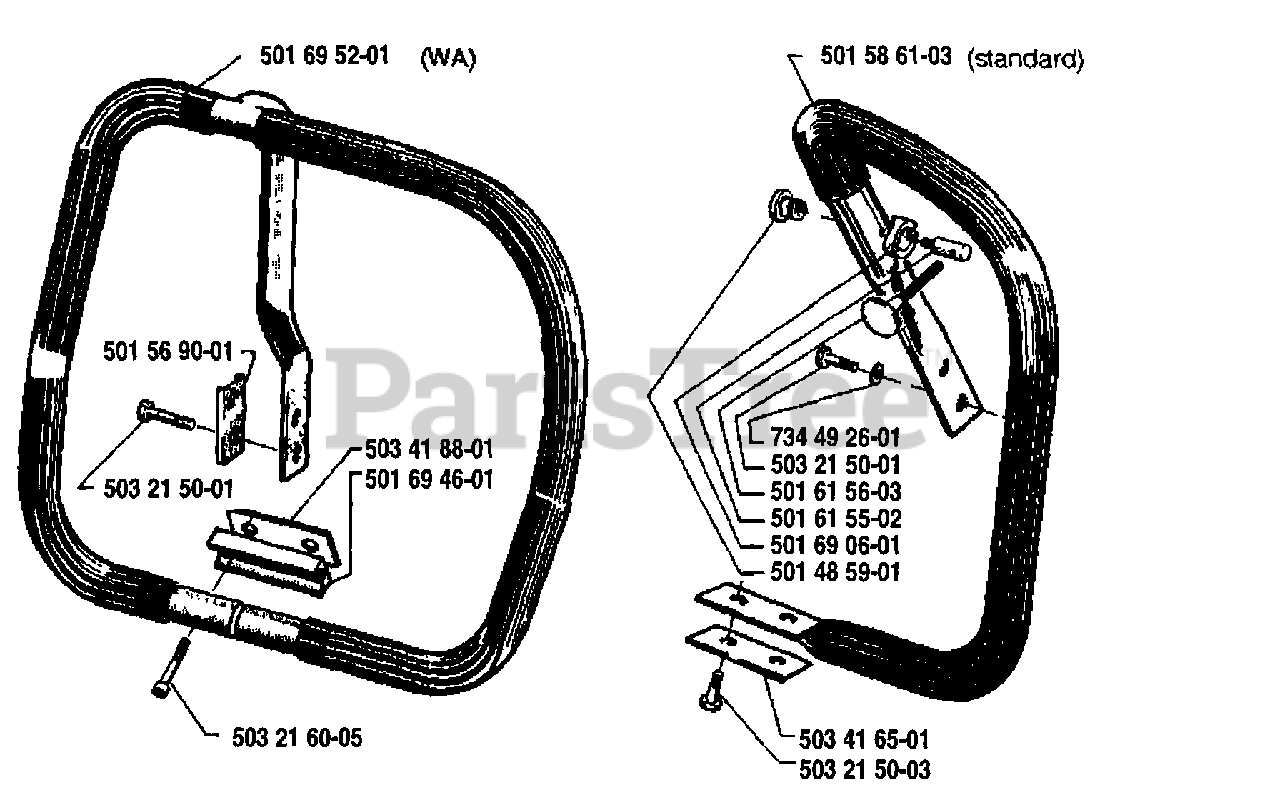

298 - Husqvarna Chainsaw (1987-01) Handles Parts Diagram

Chainsaw

Handles Parts Diagram

  • Title
501695201

Husqvarna 501695201

WRAP-AROUND HANDLE
(Superseded to 501695202)

$

$

Not available

501569001

Husqvarna 501569001

PLATE UPPER

$

$

Not available

503215001

Husqvarna 503215001

SCREW
(Superseded to 503215002)

$

$

Not available

503418801

Husqvarna 503418801

SPACER NLA

$

$

Not available

501694601

Husqvarna 501694601

HANDLE HOLDER

$

$

Not available

503216005

Husqvarna 503216005

SCREW MC6S 1/4''UNCX45

$

$

Not available

734492601

Husqvarna 734492601

FLAT WASHER 6.7X16
(Superseded to 734181251)

$

$

Not available

503215001

Husqvarna 503215001

SCREW
(Superseded to 503215002)

$

$

Not available

501615603

Husqvarna 501615603

ADJ SCREW, BRAKE
(Superseded to 503593102)

$

$

Not available

501615502

Husqvarna 501615502

STUD, BRAKE TRIP
(Superseded to 503593102)

$

$

Not available

501690601

Husqvarna 501690601

SPACER NLA

$

$

Not available

501485901

$

$

Not available

503416501

$

$

Not available

503215003

Husqvarna 503215003

SCREW 1/4 UNC

$

$

Not available

501586103

Husqvarna 501586103

FRONT HANDLE
(Superseded to 501697003)

$

$

Not available
