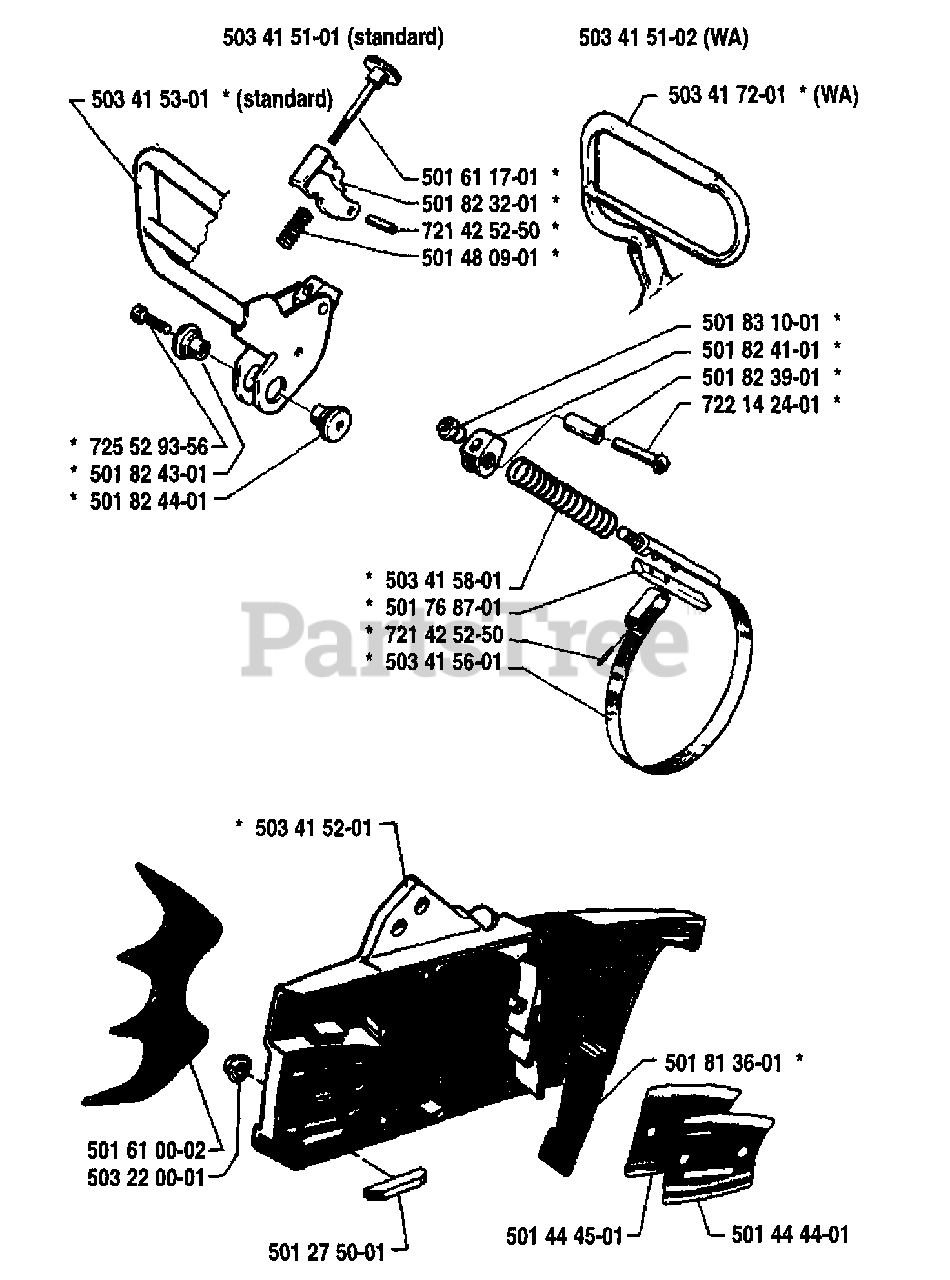

298 - Husqvarna Chainsaw (1987-01) Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title

503415101

Husqvarna 503415101

CHAIN BRAKE

$

$

Not available

503415301

Husqvarna 503415301

HANDGUARD

$

$

Not available

501611701

Husqvarna 501611701

SCREW NLA

$

$

Not available

501823201

Husqvarna 501823201

PAWL NLA

$

$

Not available

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

501480901

Husqvarna 501480901

SPRING

$

$

Not available

725529356

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

501824301

Husqvarna 501824301

PIVOT SLEEVE NLA

$

$

Not available

501824401

Husqvarna 501824401

PIVOT SLEEVE NLA

$

$

Not available

503415801

Husqvarna 503415801

BRAKE SPRING

$

$

Not available

501768701

Husqvarna 501768701

SPRING GUIDE NLA

$

$

Not available

721425250

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, only 1 left!

0

503415601

Husqvarna 503415601

BRAKE BAND NLA

$

$

Not available

503415201

Husqvarna 503415201

CLUTCH COVER

$

$

Not available

501610002

Husqvarna 501610002

FELLING DOG

$

$

Not available

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501275001

Husqvarna 501275001

GUIDE

$

$

Not available

501813601

Husqvarna 501813601

MUDFLAP

$

$

Not available

501444501

Husqvarna 501444501

GUIDE PLATE

$9.99

$

Usually ships in 3-10 days

0

501444401

Husqvarna 501444401

GUIDE PLATE

$6.99

$

In Stock, only 4 left!

0

503415102

Husqvarna 503415102

CHAINBRAKE CPL WA

$

$

Not available

503417201

Husqvarna 503417201

HANDGUARD

$

$

Not available

501831001

Husqvarna 501831001

NUT NLA

$

$

Not available

501824101

Husqvarna 501824101

CATCH NLA

$

$

Not available

501823901

Husqvarna 501823901

SPACER

$

$

Not available

722142401

Husqvarna 722142401

RIVET 4X18 NLA

$

$

Not available
