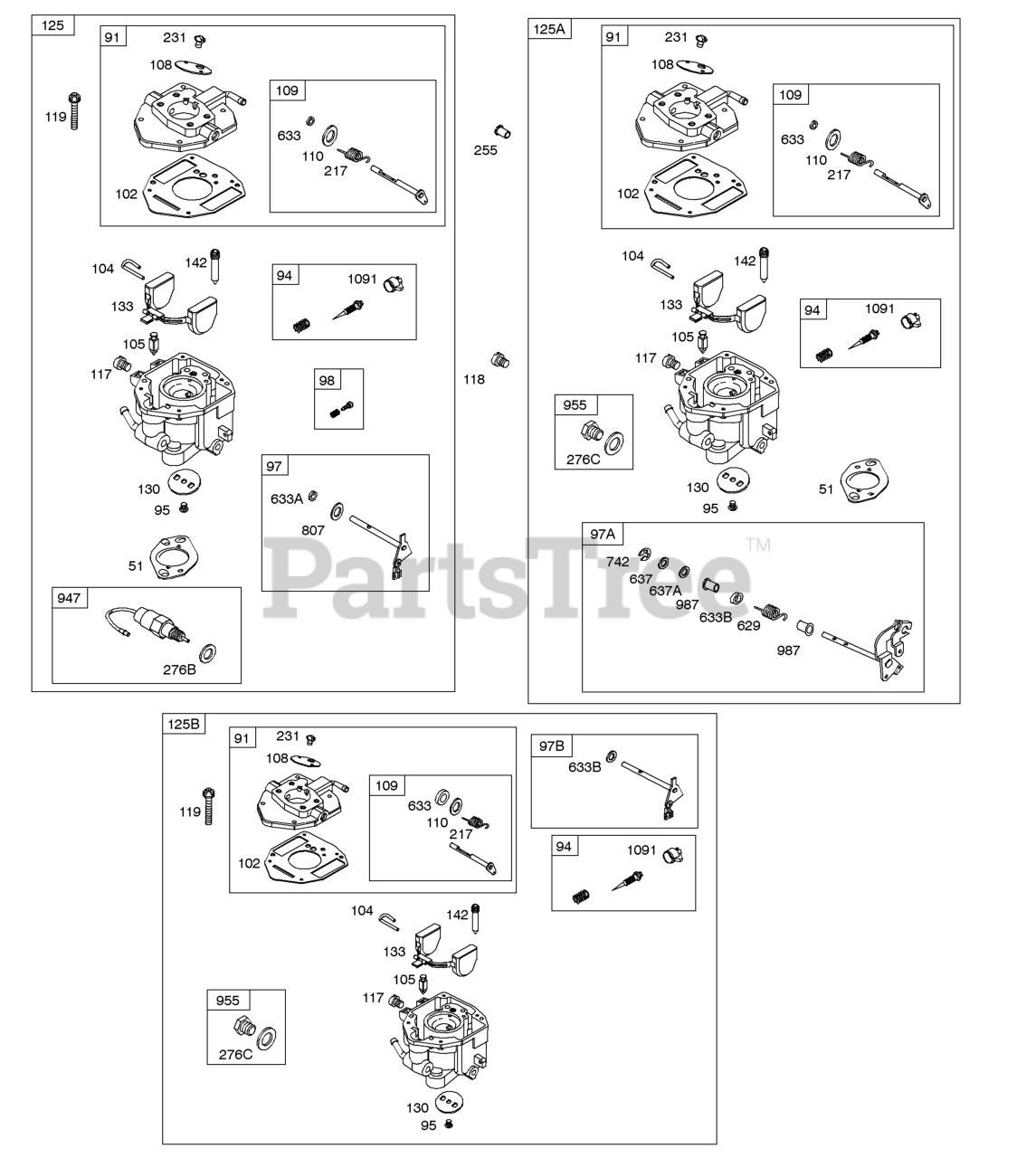

297347-0159-G2 - Briggs & Stratton Horizontal Engine Carburetors Parts Diagram

Horizontal Engine

Carburetors Parts Diagram

  • Title

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Intake Manifold To Carburetor)

$2.99

$

In Stock, Qty 20+

0

91

Briggs & Stratton 842835

Body-Upper Carburetor

$186.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 842870

Kit-Idle Mixture

$44.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

97

Briggs & Stratton 809007

Shaft-Throttle

$42.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 808177

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

102

Briggs & Stratton 692077

Gasket-Carburetor Body

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Briggs & Stratton 690719

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 809096

Shaft-Choke

$45.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 806861

Washer

Note: (Choke Shaft)

$4.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 842782

Jet-Main

Note: (Standard)

$15.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 842314

Jet-Main

Note: (High Altitude) (5000 > 9000 Feet)

$15.99

$

Usually ships in 2-12 days

0

119

Briggs & Stratton 842761

Screw

Note: (Upper Carburetor Body to Lower Carburetor Body)

$3.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 844745

Carburetor

$371.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 690726

Valve-Throttle

$18.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 844546

Float-Carburetor

$29.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 842240

Nozzle-Carburetor

$34.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 806862

Spring-Choke Return

$10.99

$

In Stock, only 1 left!

0

231

Briggs & Stratton 690718

SCREW

Note: (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

276B

Briggs & Stratton 693497

Washer-Sealing

Note: (Fuel Solenoid)

$7.99

$

Usually ships in 2-12 days

0

276C

Briggs & Stratton 690724

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, Qty 8

0

629

Briggs & Stratton 807004

Spring-Throttle Return

$10.99

$

Usually ships in 2-12 days

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

Note: (Choke Shaft)

$15.99

$

In Stock, only 4 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

Note: (Throttle Shaft)

$5.99

$

Usually ships in 2-12 days

0

633B

Briggs & Stratton 807003

Seal-Choke/Throttle Shaft

Note: (Throttle Shaft)

$6.49

$

Usually ships in 2-12 days

0

637

Briggs & Stratton 806999

Washer

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

637A

Briggs & Stratton 807000

Washer

Note: (Throttle Shaft)

$4.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 807001

Retainer-E Ring

$4.99

$

Usually ships in 2-12 days

0

807

Briggs & Stratton 805557

Spacer-Throttle

$6.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 842239

Solenoid-Fuel

$192.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 808176

Plug-Carburetor

$18.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 807002

Seal-Throttle Shaft

$6.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691516

Cap-Limiter

$8.49

$

Usually ships in 2-12 days

0
