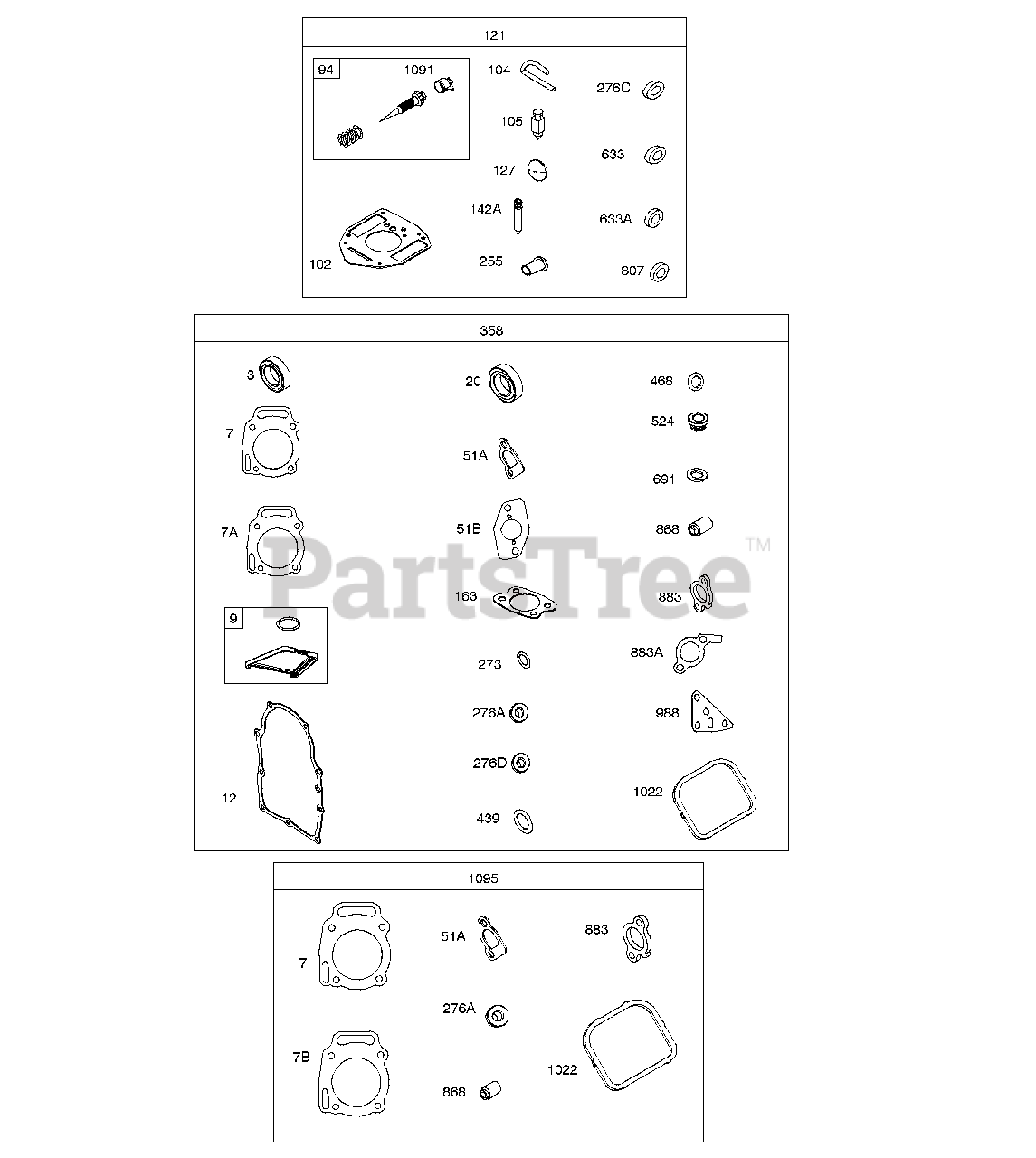

297340-0153-G2 - Briggs & Stratton Horizontal Engine Engine/Valve Gasket Sets, Carburetor Overhaul Kit Parts Diagram

Horizontal Engine

Engine/Valve Gasket Sets, Carburetor Overhaul Kit Parts Diagram

  • Title

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085S

Gasket-Cylinder Head

$28.99

$

In Stock, Qty 20+

0

7A

Briggs & Stratton 845884

Gasket-Cylinder Head

Note: (Graphite)

$30.99

$

In Stock, Qty 6

0

7B

Briggs & Stratton 807986

Gasket-Cylinder Head

Note: (Stainless)

$26.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 845254

Gasket-Crankcase

$45.99

$

In Stock, Qty 12

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 17

0

51B

Briggs & Stratton 806457

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

94

Briggs & Stratton 842870

Kit-Idle Mixture

$44.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 692077

Gasket-Carburetor Body

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

Pin-Float Hinge

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 797410

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

121

Briggs & Stratton 842877

Kit-Carburetor Overhaul

$107.99

$

In Stock, only 3 left!

0

127

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 2 left!

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, only 2 left!

0

255

Briggs & Stratton 690721

BUSHING, Choke Shaft

$8.49

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover) Used After Code Date 01081900

$3.99

$

In Stock, Qty 17

0

276C

Briggs & Stratton 690724

Washer-Sealing

Note: (Carburetor Plug)

$7.99

$

In Stock, Qty 8

0

276D

Briggs & Stratton 691766

Washer-Sealing

Note: (Carburetor Plug) Used Before Code Date 01082000

$6.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 808704

Gasket Set-Engine

$131.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

SEAL, O-Ring

Note: (Oil Pump Screen)

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 693172

Seal-Dipstick Tube

$5.49

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

Note: (Choke Shaft)

$15.99

$

In Stock, only 4 left!

0

633A

Briggs & Stratton 806131

SEAL, Choke/Throttle Shaft

Note: (Throttle Shaft)

$5.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

807

Briggs & Stratton 805557

Spacer-Throttle

$6.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

In Stock, only 3 left!

0

883A

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 9

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1091

Briggs & Stratton 691516

Cap-Limiter

$8.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 842723

Gasket Set-Valve

$72.99

$

In Stock, only 1 left!

0
