29734 - Toro 53cm Mulching Walk-Behind Mower (SN: 400000000 - 402099999) ELECTRICAL ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

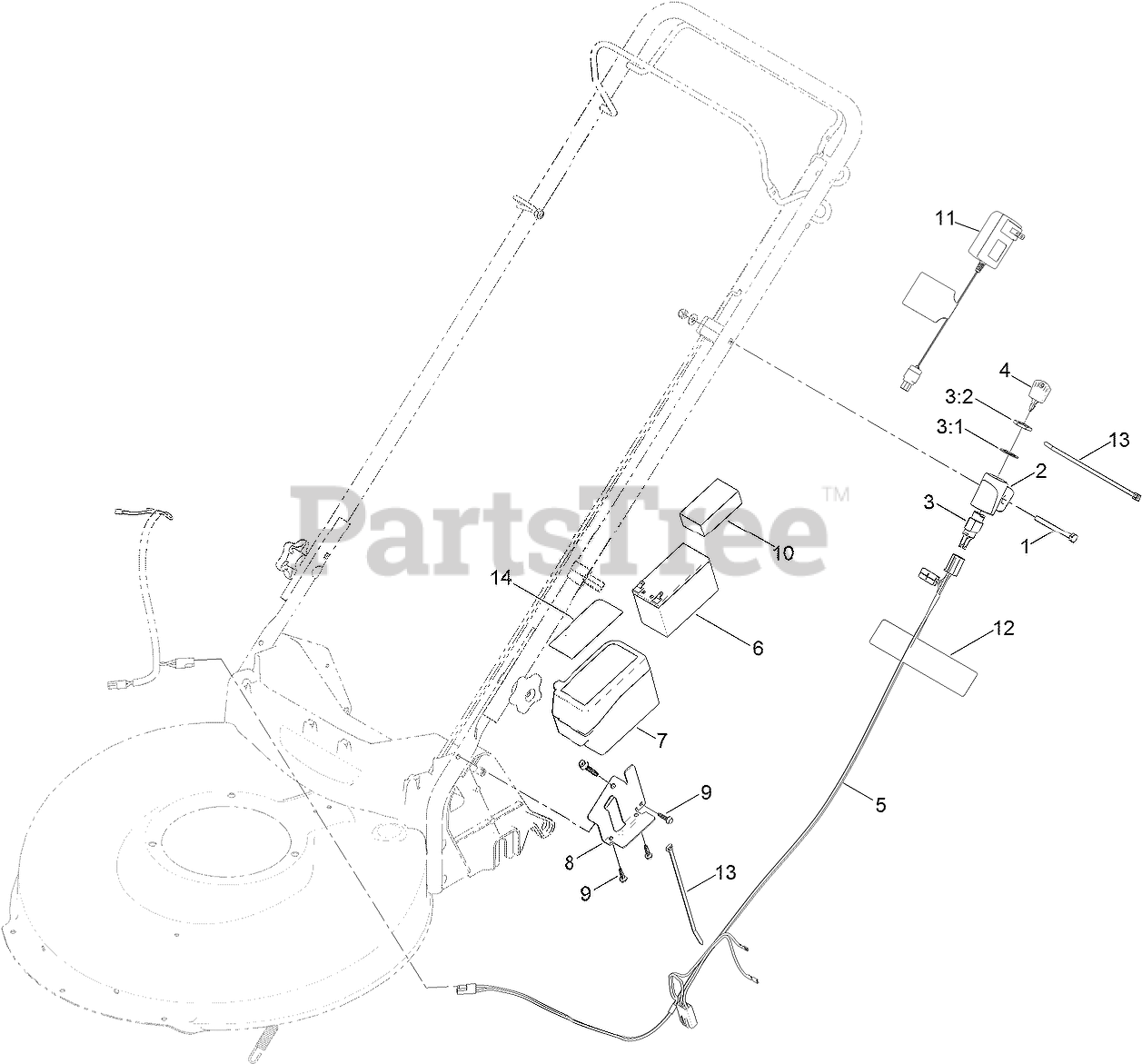

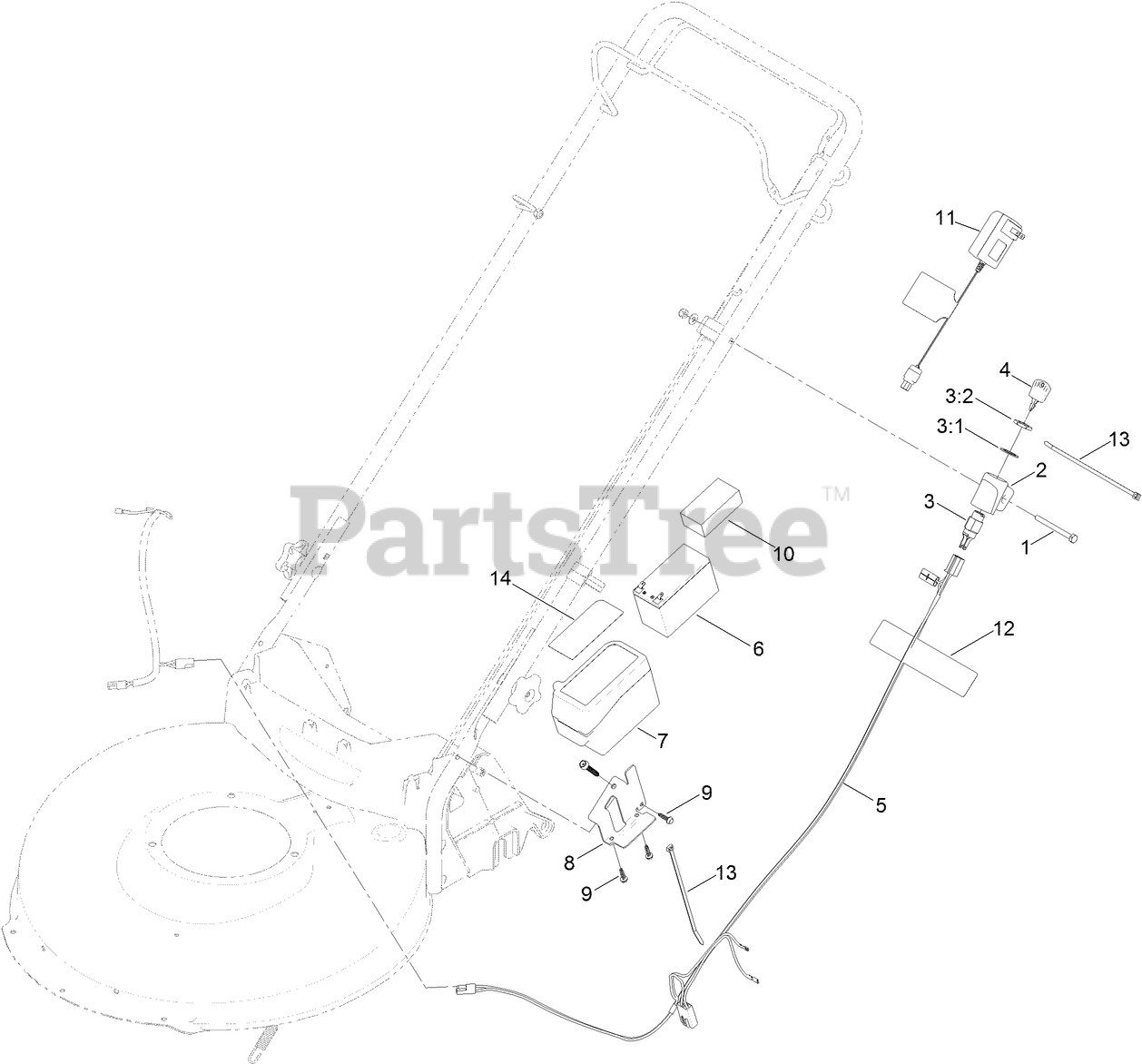

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

2

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

3

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

3:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

3:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

4

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0

5

Toro 127-6837

HARNESS-WIRE

$68.99

$

In Stock, only 1 left!

0

5:1

Toro 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0

6

Toro 127-0694

BATTERY-NONSPILLABLE, 12 V

$99.99

$

In Stock, only 1 left!

0

7

Toro 127-0695

BATTERY BOX ASM

$7.99

$

In Stock, only 1 left!

0

8

Toro 127-6835-03

BRACKET-BATTERY

$6.99

$

Usually ships in 3-6 days

0

9

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

10

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

11

Toro 136-9127

CHARGER-BATTERY
(Superseded to 137-9153)

$53.99

$

Usually ships in 3-6 days

0

12

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

13

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

14

Toro 130-6743

DECAL-BOX, BATTERY

$12.99

$

Usually ships in 3-6 days

0
