29734 - Toro 53cm Mulching Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

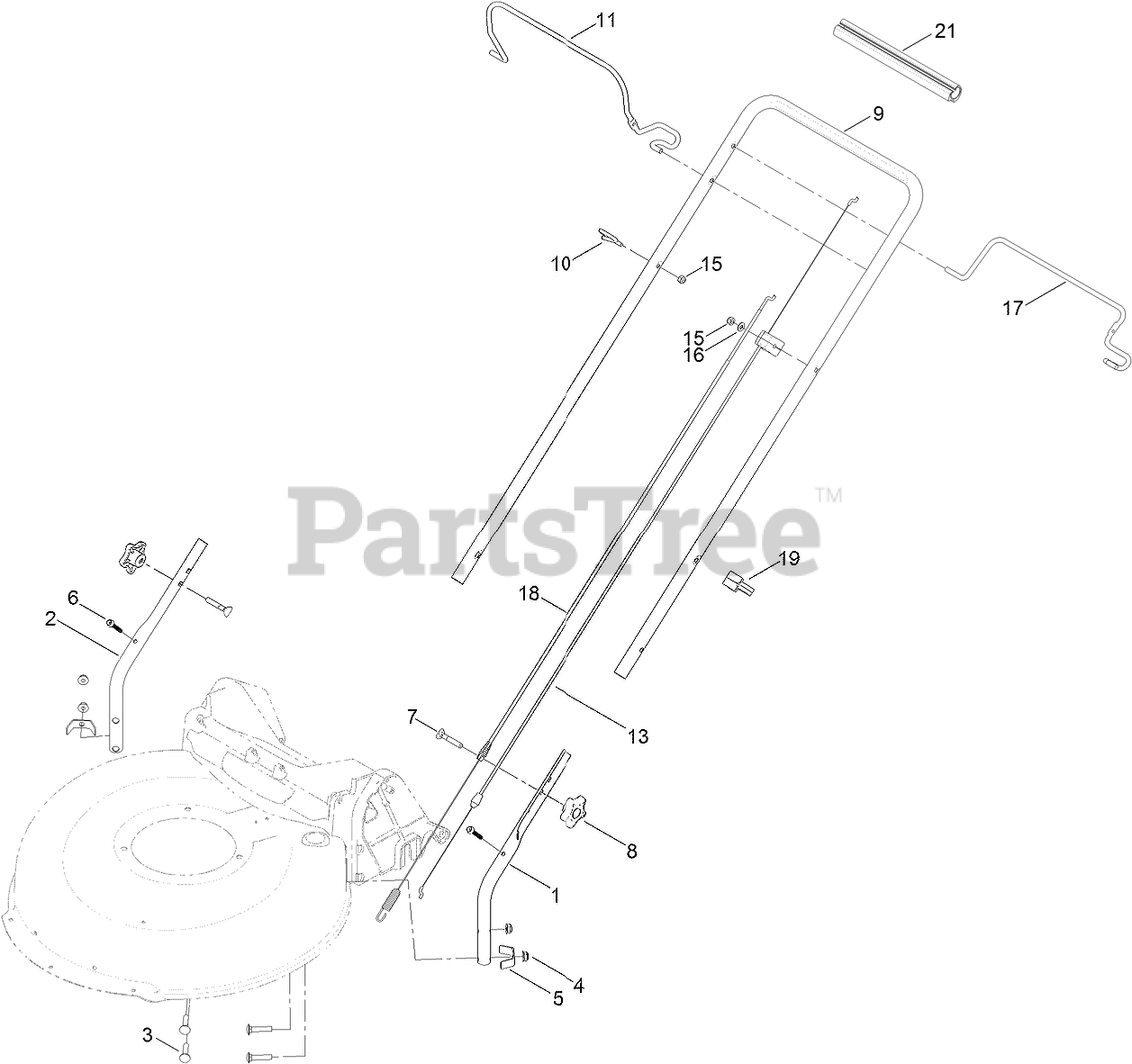

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 127-0657-05

HANDLE-LOWER, LH
(Superseded to 136-5923-05)

$47.99

$

In Stock, Qty 20+

0

2

Toro 127-0658-05

HANDLE-LOWER, RH
(Superseded to 136-5924-05)

$23.99

$

In Stock, Qty 20+

0

3

Toro 130-6654

BOLT-CARR

$1.49

$

In Stock, Qty 20+

0

4

Toro 130-6655

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 127-0699

BRACKET-CHUTE

$1.99

$

In Stock, Qty 20+

0

6

Toro 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 20+

0

7

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

8

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 11

0

9

Toro 127-0659-05

HANDLE-UPPER

$52.99

$

In Stock, only 1 left!

0

10

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

11

Toro 127-0718-03

BAIL-BRAKE
(Superseded to 138-3268-03)

$14.99

$

In Stock, only 2 left!

0

13

Toro 112-8818

CABLE-BRAKE

$35.99

$

In Stock, Qty 20+

0

15

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

16

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 127-0719-03

BAIL-TRACTION

$25.99

$

In Stock, only 3 left!

0

18

Toro 127-0733

CABLE-TRACTION

$18.99

$

In Stock, Qty 17

0

19

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

21

Toro 120-5216

GRIP-HANDLE, COMFORT

$12.99

$

Usually ships in 3-6 days

0
