29732 - Toro 53cm Mulching Walk-Behind Mower (SN: 315000001 - 315999999) (2015) HOUSING ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

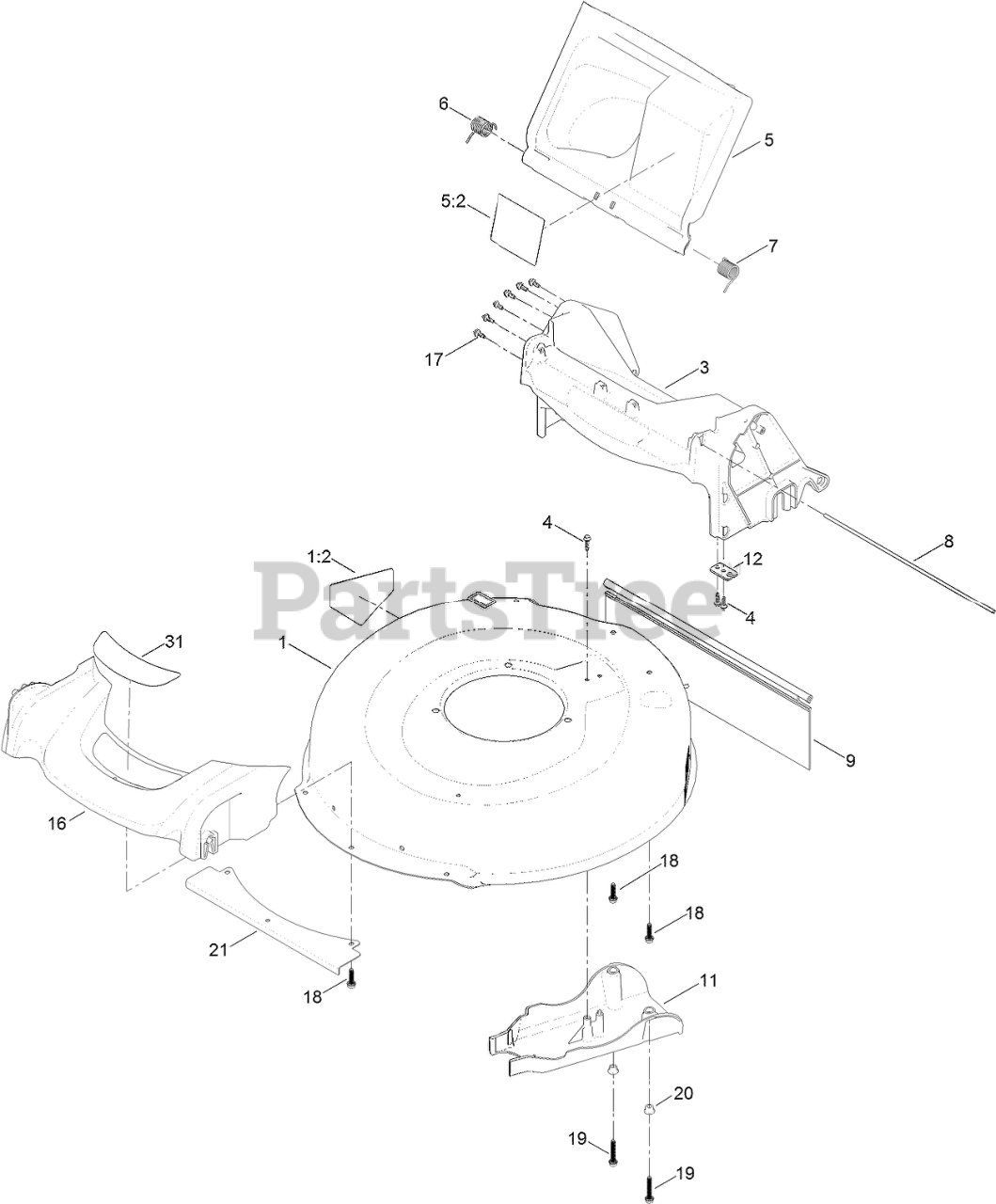

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 130-6745

HOUSING ASM

$

$

Currently unavailable

1:2

Toro 112-8760

DECAL-DANGER

$10.99

$

In Stock, Qty 5

0

3

Toro 130-6656

CHUTE ASM
(Superseded to 139-1805)

$38.99

$

In Stock, Qty 14

0

4

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

5

Toro 130-2368

REAR DEFLECTOR ASM

$26.99

$

Usually ships in 3-6 days

0

5:2

Toro 117-4143

DECAL-WARNING

$5.49

$

Usually ships in 3-6 days

0

6

Toro 127-6807

SPRING-TORSION

$3.49

$

In Stock, only 2 left!

0

7

Toro 127-6808

SPRING-TORSION

$

$

Not available

8

Toro 127-0698

ROD-DOOR

$2.99

$

In Stock, only 1 left!

0

9

Toro 127-0724

SHIELD-TRAILING

$13.99

$

In Stock, only 1 left!

0

11

Toro 127-0723

COVER-BELT

$11.99

$

In Stock, only 1 left!

0

12

Toro 127-0730

BRACKET-CABLE

$1.49

$

In Stock, Qty 8

0

16

Toro 127-0677

BUMPER

$22.99

$

In Stock, only 1 left!

0

17

Toro 130-2355

STUD

$0.99

$

In Stock, Qty 10

0

18

Toro 130-6658

SCREW-FLANGE, PLASTIC

$1.49

$

In Stock, Qty 6

0

19

Toro 130-6659

SCREW-FLANGE, SERRATED

$1.49

$

In Stock, Qty 15

0

20

Toro 130-2378

SPACER-FLANGE

$2.99

$

Usually ships in 3-6 days

0

21

Toro 131-0820-03

SHIELD-FRONT

$

$

Currently unavailable

31

Toro 130-6740

DECAL-DECK

$3.99

$

Usually ships in 0 days

0
