29732 - Toro 53cm Mulching Walk-Behind Mower (SN: 315000001 - 315999999) (2015) FRONT WHEEL ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

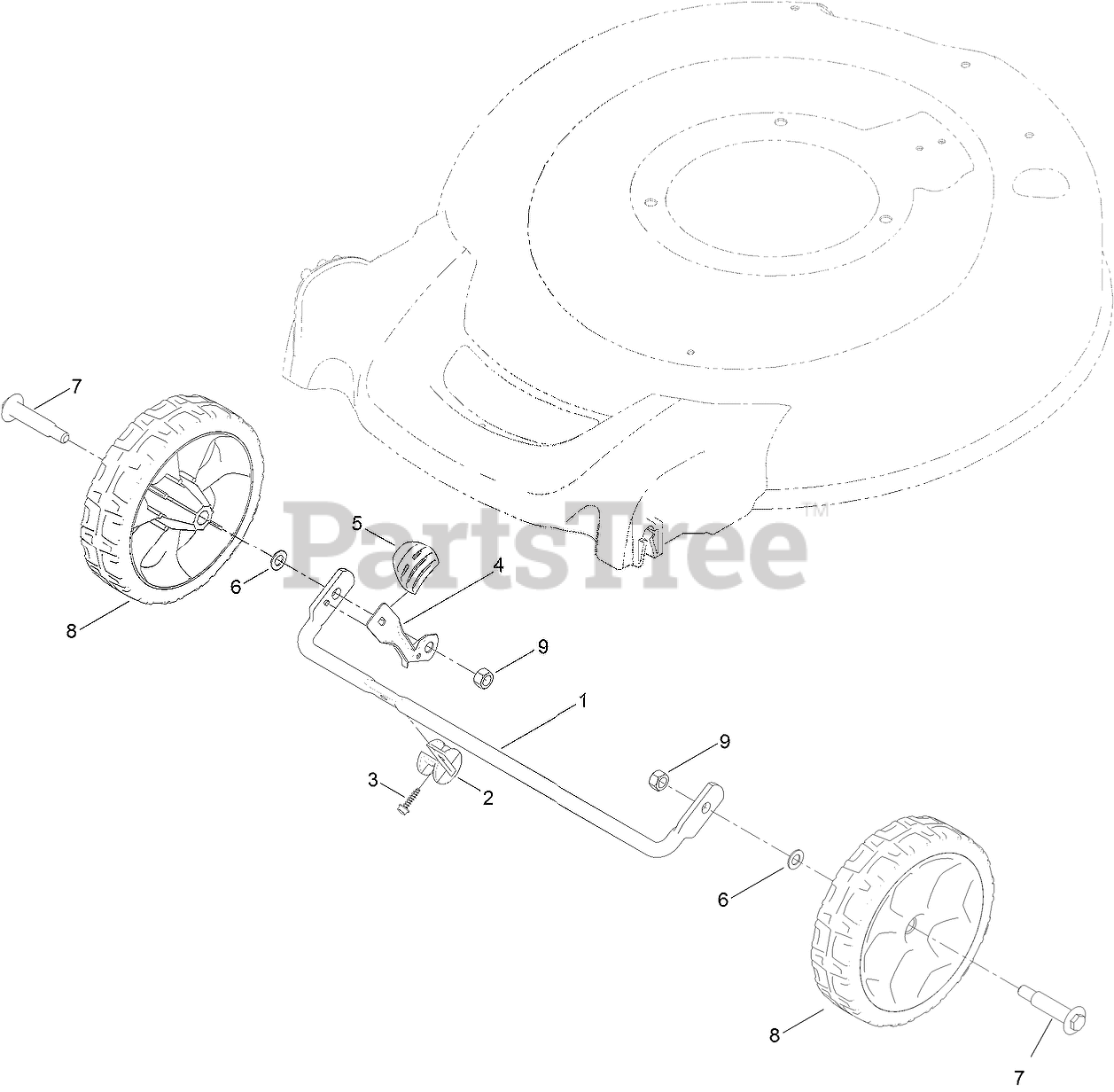

FRONT WHEEL ASSEMBLY Parts Diagram

  • Title
1

Toro 127-0668-03

AXLE-FRONT

$18.99

$

In Stock, only 2 left!

0

2

Toro 127-6800

STOP-AXLE

$1.49

$

In Stock, Qty 15

0

3

Toro 127-6831

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

4

Toro 127-0693

ARM-SPRING
(Superseded to 133-8154)

$8.99

$

In Stock, Qty 8

0

5

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

6

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

7

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

8

Toro 127-0683

7 INCH WHEEL ASM

$33.99

$

In Stock, Qty 7

0

9

Toro 125-5069

NUT-HEX
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0
