29732 - Toro 53cm Mulching Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE ASSEMBLY Parts Diagram

53cm Mulching Walk-Behind Mower

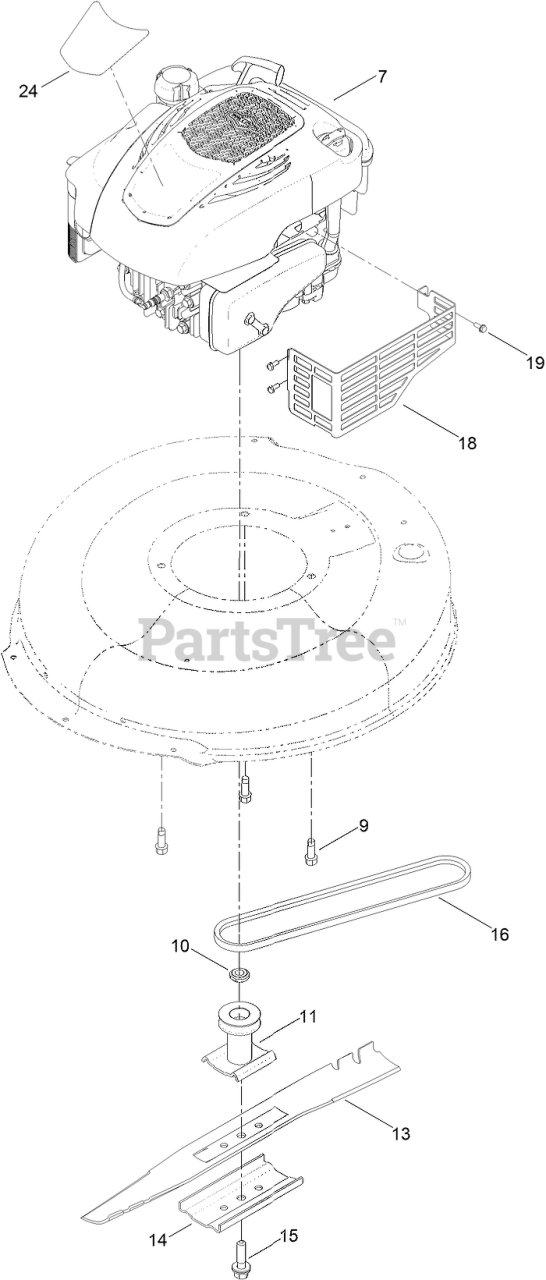

ENGINE ASSEMBLY Parts Diagram

  • Title

7

ENGINE-BRIGGS 126M020119F1

Note: Not serviced separately

$

$

Not available

7

ENGINE-BRIGGS 126M020119F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

10

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

11

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

13

Toro 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-S)

$20.99

$

In Stock, only 2 left!

0

14

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

15

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

16

Toro 110-9429

V-BELT

$17.99

$

In Stock, Qty 12

0

18

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

19

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

24

Toro 120-1935

DECAL-SHROUD

$8.49

$

Usually ships in 3-6 days

0
