29645 - Toro 50cm Mulching Walk-Behind Mower (SN: 315000001 - 315999999) (2015) TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

50cm Mulching Walk-Behind Mower

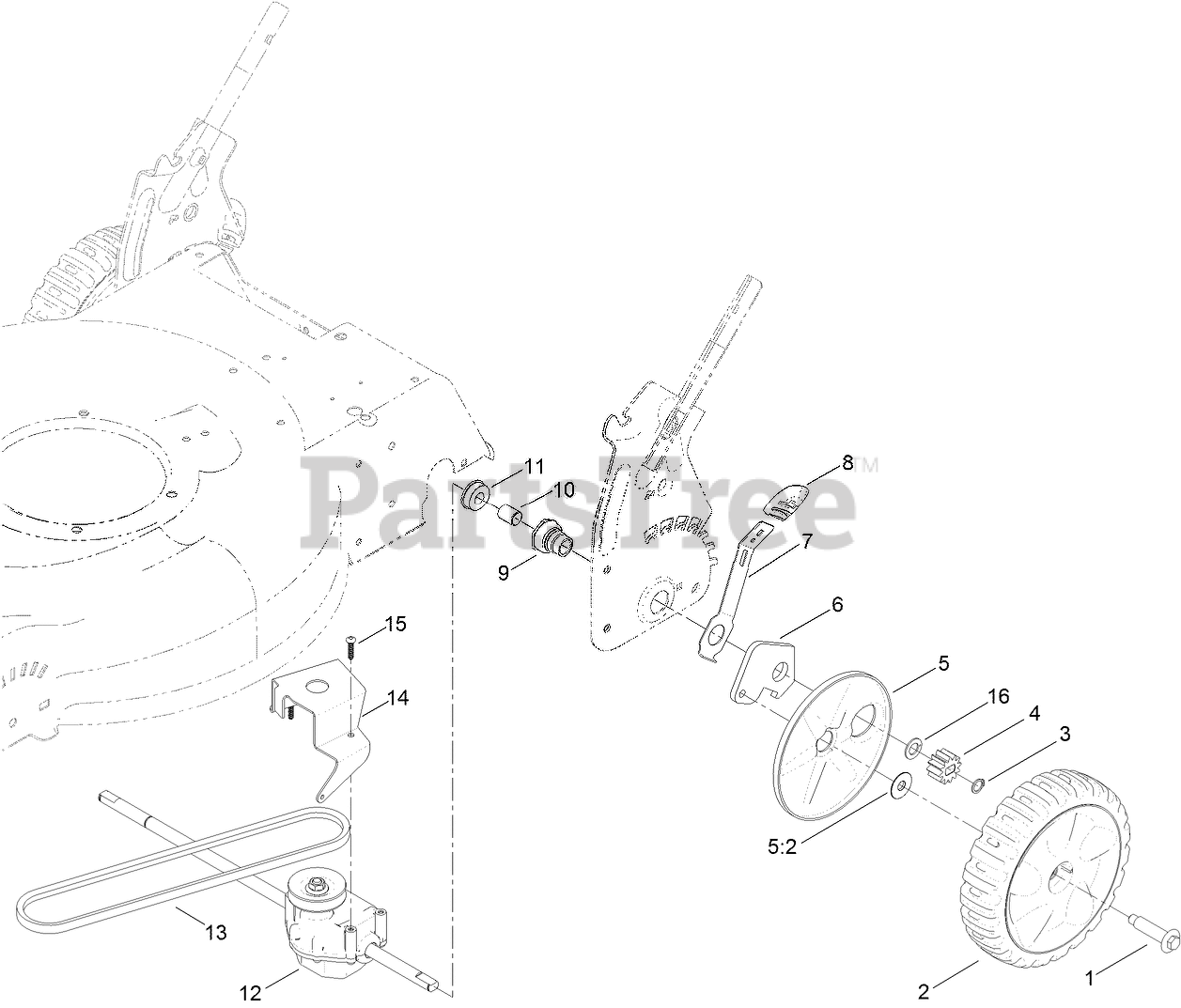

TRANSMISSION AND REAR WHEEL DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

2

Toro 119-7068

8 INCH WHEEL AND GEAR ASM

$50.99

$

In Stock, only 3 left!

0

3

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Toro 115-4668

GEAR-PINION

$15.99

$

In Stock, only 4 left!

0

5

Toro 110-1792

WHEEL COVER ASM
(Superseded to 127-6840)

$5.99

$

In Stock, Qty 9

0

5:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

6

Toro 108-9781

ARM-PIVOT, REAR

$20.99

$

In Stock, only 3 left!

0

7

Toro 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

8

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, only 4 left!

0

9

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

In Stock, only 2 left!

0

10

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 5

0

11

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

12

Toro 121-2332

TRANSMISSION ASM

$117.99

$

Usually ships in 3-6 days

0

13

Toro 110-9429

V-BELT

$17.99

$

In Stock, Qty 12

0

14

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

15

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 7

0

16

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 18

0
