29645 - Toro 50cm Mulching Walk-Behind Mower (SN: 315000001 - 315999999) (2015) ENGINE AND BLADE ASSEMBLY Parts Diagram

50cm Mulching Walk-Behind Mower

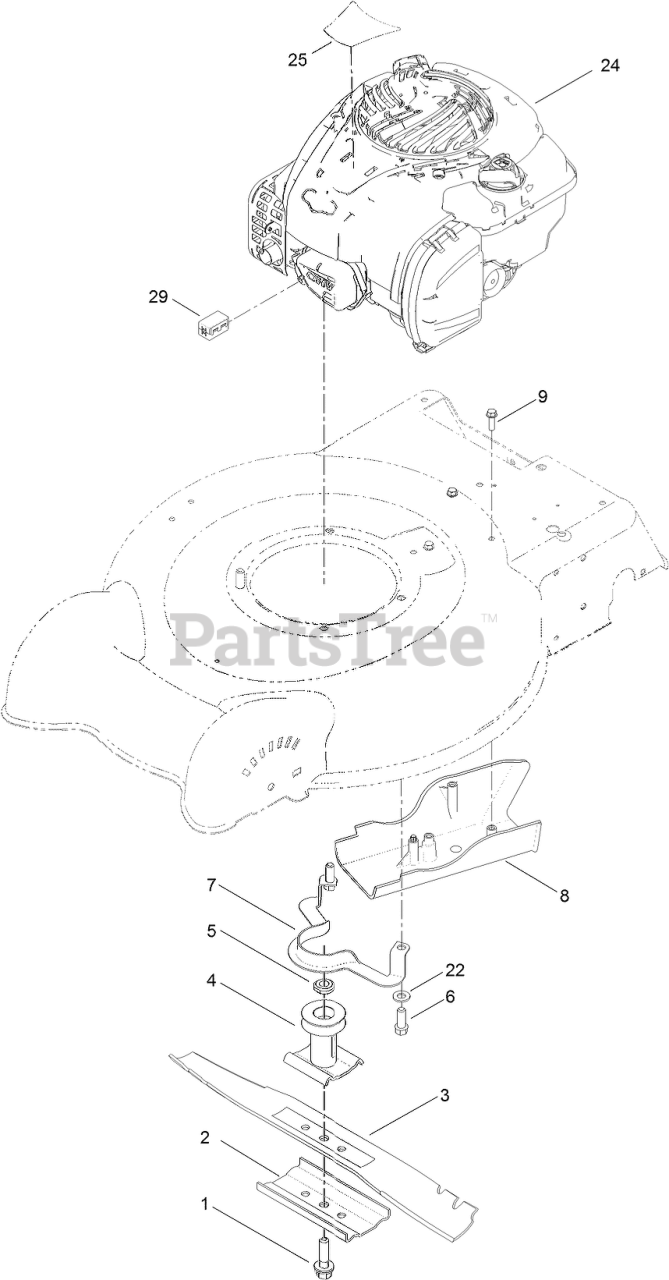

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 117-5270

BOLT-BLADE

$

$

Not available

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 125-2500

DRIVER-BLADE

$41.99

$

Usually ships in 3-6 days

0

5

Toro 125-2502

SPACER-DRIVER

$1.99

$

Usually ships in 3-6 days

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

ENGINE-BRIGGS, 09P7020098F1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

24

ENGINE-BRIGGS, 09P7020098F1

Note: Not serviced separately

$

$

Not available

25

Toro 127-6860

DECAL-ENGINE

$

$

Currently unavailable

29

Toro 125-5054

FERRITE-CLAMP

$4.99

$

Usually ships in 3-6 days

0
