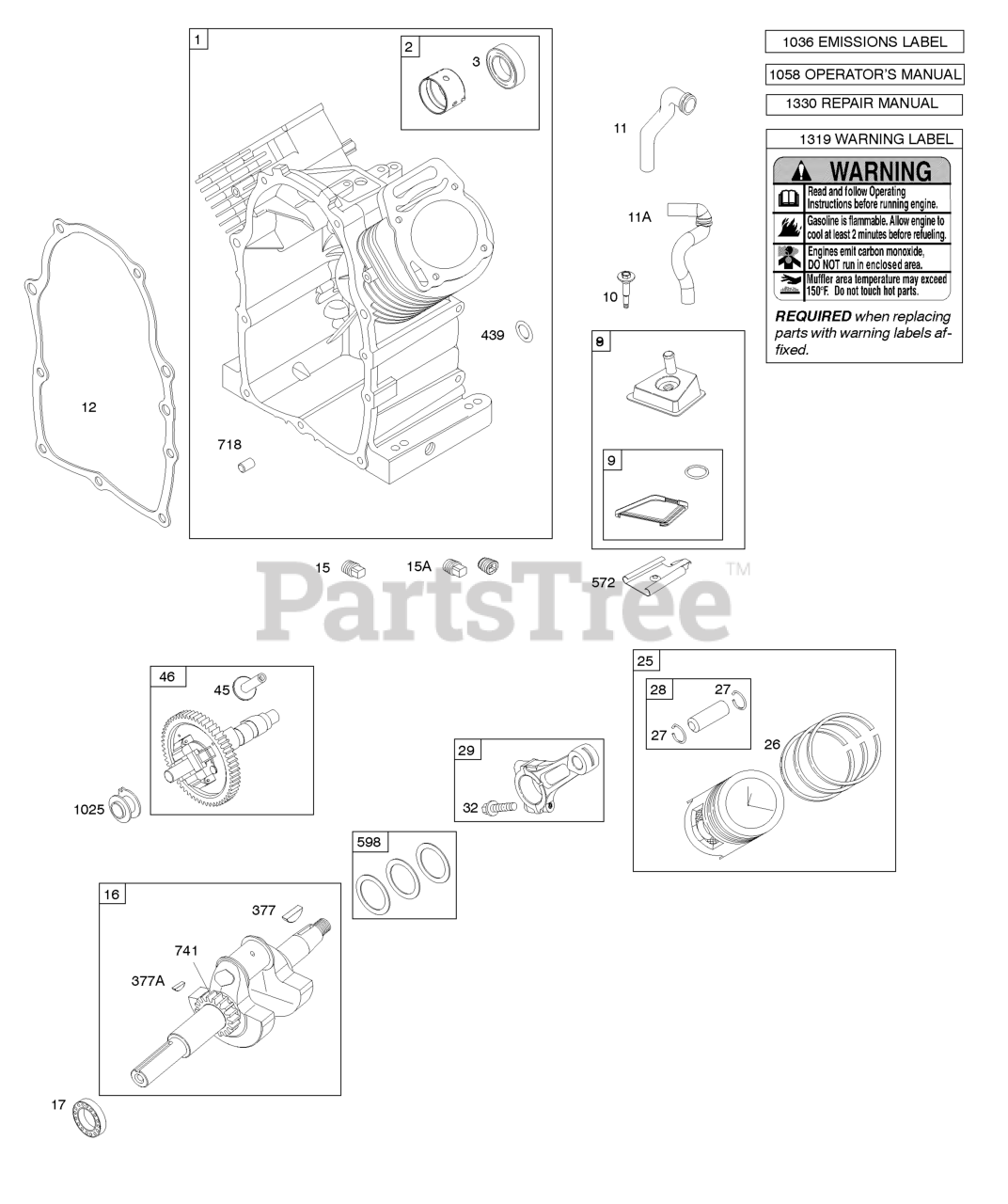

296442-0007-H1 - Briggs & Stratton Horizontal Engine Camsahft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, Breather Parts Diagram

Horizontal Engine

Camsahft, Crankshaft, Cylinder, Piston, Rings, Connecting Rod, Breather Parts Diagram

  • Title

1

Briggs & Stratton 692178

Cylinder Assembly

$677.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 808984

Breather Assembly

$53.99

$

In Stock, Qty 16

0

9

Briggs & Stratton 844986

Gasket-Breather

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690751

Screw

Note: (Breather Assembly)

$7.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 691556

Tube-Breather

$17.99

$

Usually ships in 2-12 days

0

11A

Briggs & Stratton 844921

Tube-Breather

$15.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 845254

Gasket-Crankcase

$45.99

$

In Stock, Qty 12

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8"-18 NPTF-External 7/16" Sq)

$5.99

$

In Stock, Qty 14

0

15A

Briggs & Stratton 691686

PLUG, Oil Drain

Note: (1/4"-18 NPTF - 3/8 External Sq)

$5.49

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (3/8"-18 NPTF - Internal 3/8" Sq)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 692161

Crankshaft
(Superseded to 84004501)

$425.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 843827

Bearing-Ball

$36.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 843956

Piston Assembly
(Superseded to 843958)

Note: (.020" Oversize)

$

$

Not available

25

Briggs & Stratton 843951

Piston Assembly

$

$

Not available

26

Briggs & Stratton 843957

Ring Set

Note: (.020" Oversize)

$55.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 843953

Ring Set

$53.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844541

Pin-Piston

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 807900S

Rod-Connecting

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod) (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 845649

Camshaft

$184.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

572

Briggs & Stratton 690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$19.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 846085

Gear-Timing

$19.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0

1036

LABEL, Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 279771TRI

Operator's Manual

$

$

Not available

1058

Briggs & Stratton 279771WST

Operator's Manual

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
