29643 - Toro 50cm Mulching Walk-Behind Mower (SN: 314000001 - 314999999) (2014) ENGINE AND BLADE ASSEMBLY Parts Diagram

50cm Mulching Walk-Behind Mower

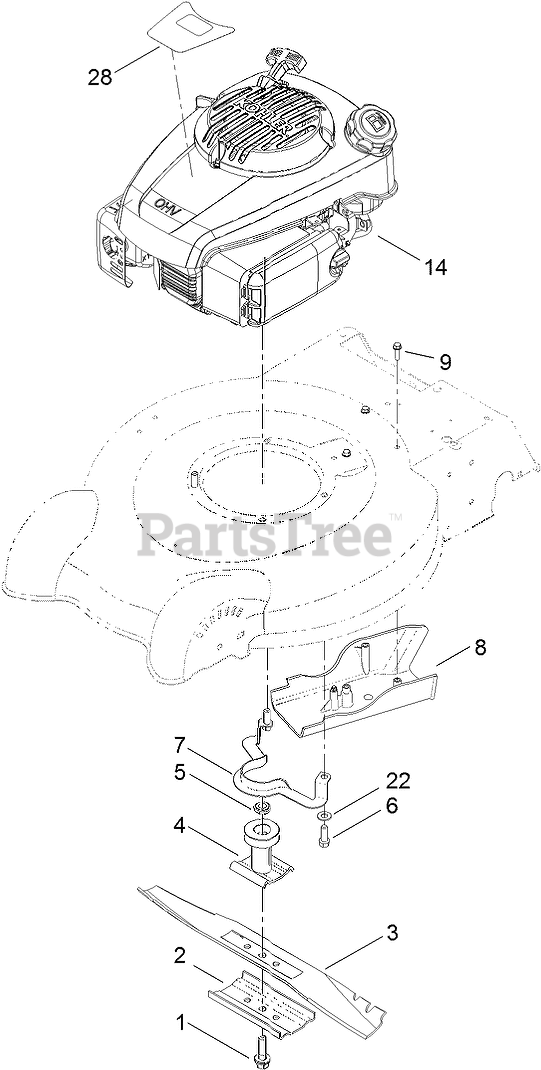

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 125-2466

BOLT-BLADE

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

14

ENGINE-KOHLER, PH-XT675-0041

Note: Not serviced separately

$

$

Not available

14

ENGINE-KOHLER, PH-XT675-0041

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 121-9139

DECAL-SHROUD

$

$

Currently unavailable
