29643 - Toro 50cm Mulching Walk-Behind Mower (SN: 314000001 - 314999999) (2014) ELECTRICAL ASSEMBLY Parts Diagram

50cm Mulching Walk-Behind Mower

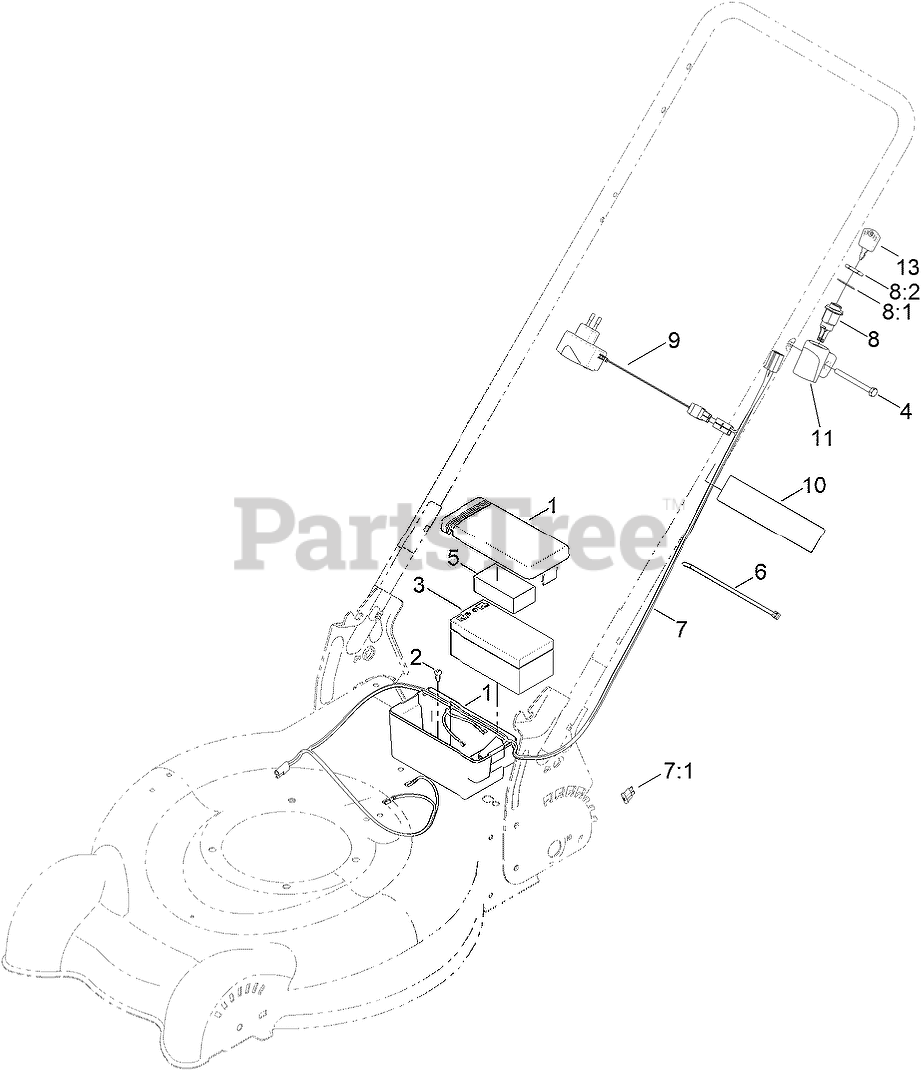

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Toro 105-6849

SCREW-FORMING, THREAD

$1.49

$

In Stock, only 3 left!

0

3

Toro 106-8397

BATTERY-WET

$79.99

$

Usually ships in 3-6 days

0

4

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

5

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

6

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

7

Toro 120-5214

HARNESS-WIRE

$81.99

$

Usually ships in 3-6 days

0

7:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

8

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

8:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

8:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

9

Toro 120-3947

CHARGER-CE
(Superseded to 137-9153)

$53.99

$

Usually ships in 3-6 days

0

10

Toro 104-7953

DECAL-WARNING

$9.99

$

Usually ships in 3-6 days

0

11

Toro 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, only 1 left!

0

13

Toro 700918

KEY

$6.49

$

In Stock, Qty 10

0
