29642 - Toro 50cm Walk-Behind Mower (SN: 311000001 - 311999999) (2011) TRANSMISSION, REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

50cm Walk-Behind Mower

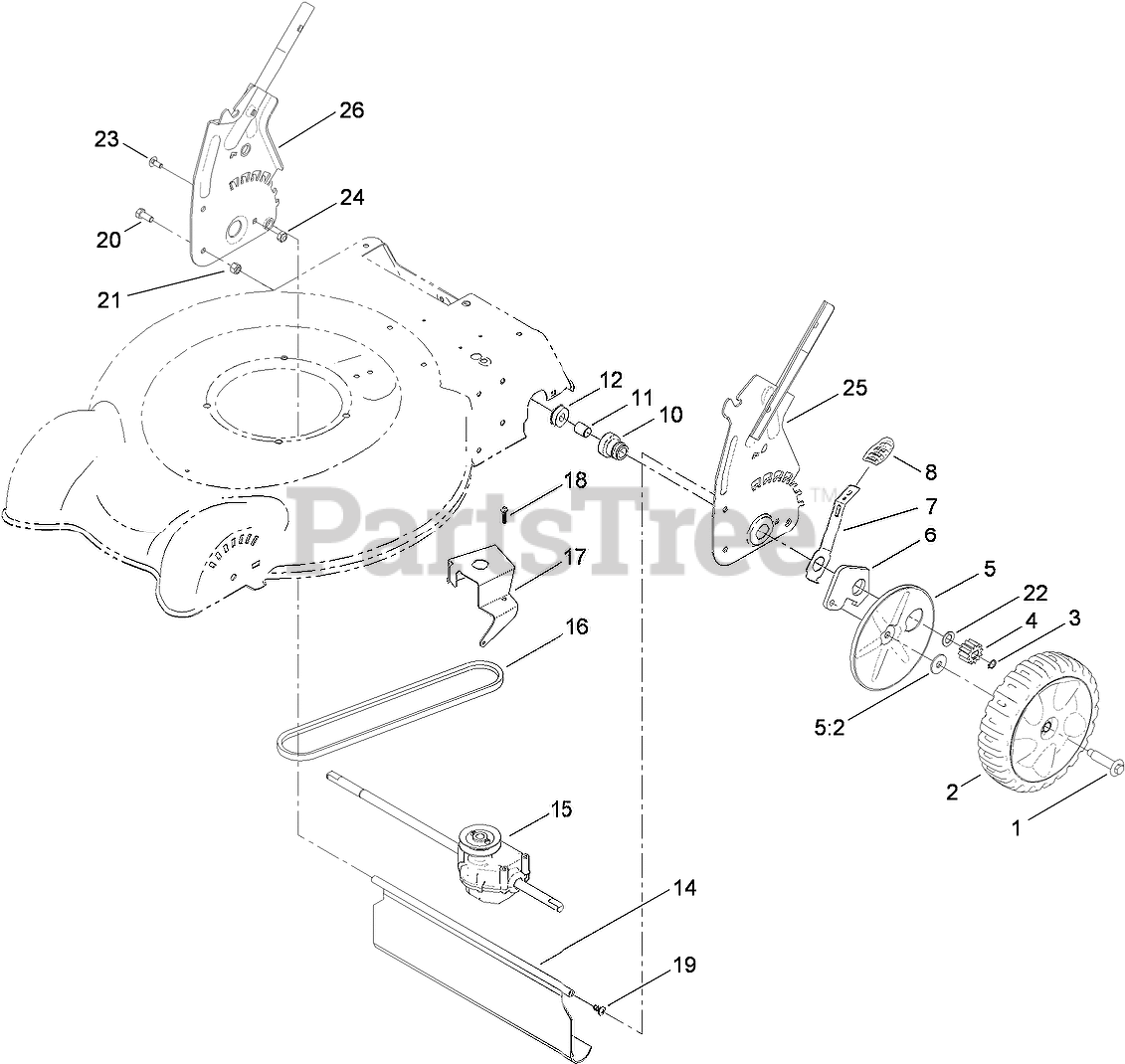

TRANSMISSION, REAR WHEEL AND HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

2

Toro 119-0321

8 INCH WHEEL GEAR ASM

$46.99

$

In Stock, only 2 left!

0

3

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

4

Toro 115-4668

GEAR-PINION

$15.99

$

In Stock, only 4 left!

0

5

Toro 117-4197

WHEEL COVER ASM
(Superseded to 131-4513)

$10.99

$

In Stock, only 3 left!

0

5:2

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0

6

Toro 108-9781

ARM-PIVOT, REAR

$20.99

$

In Stock, only 3 left!

0

7

Toro 108-9780

ARM-SPRING

$10.99

$

In Stock, only 3 left!

0

8

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 6

0

10

Toro 108-9779

RETAINER-BUSHING, HOC

$13.99

$

Usually ships in 3-6 days

0

11

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 7

0

12

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 18

0

14

Toro 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

Usually ships in 3-6 days

0

15

Toro 112-8831

TRANSMISSION ASM
(Superseded to 121-9181)

$117.99

$

In Stock, only 1 left!

0

16

Toro 110-9429

V-BELT

$17.99

$

In Stock, Qty 12

0

17

Toro 114-7977-03

BRACKET-TRANSMISSION

$13.99

$

In Stock, only 1 left!

0

18

Toro 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

19

Toro 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 13

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

23

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

25

Toro 119-3804-03

HOC-LH

$30.99

$

Usually ships in 3-6 days

0

26

Toro 119-3805-03

HOC-RH

$

$

Not available
