29642 - Toro 50cm Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

50cm Walk-Behind Mower

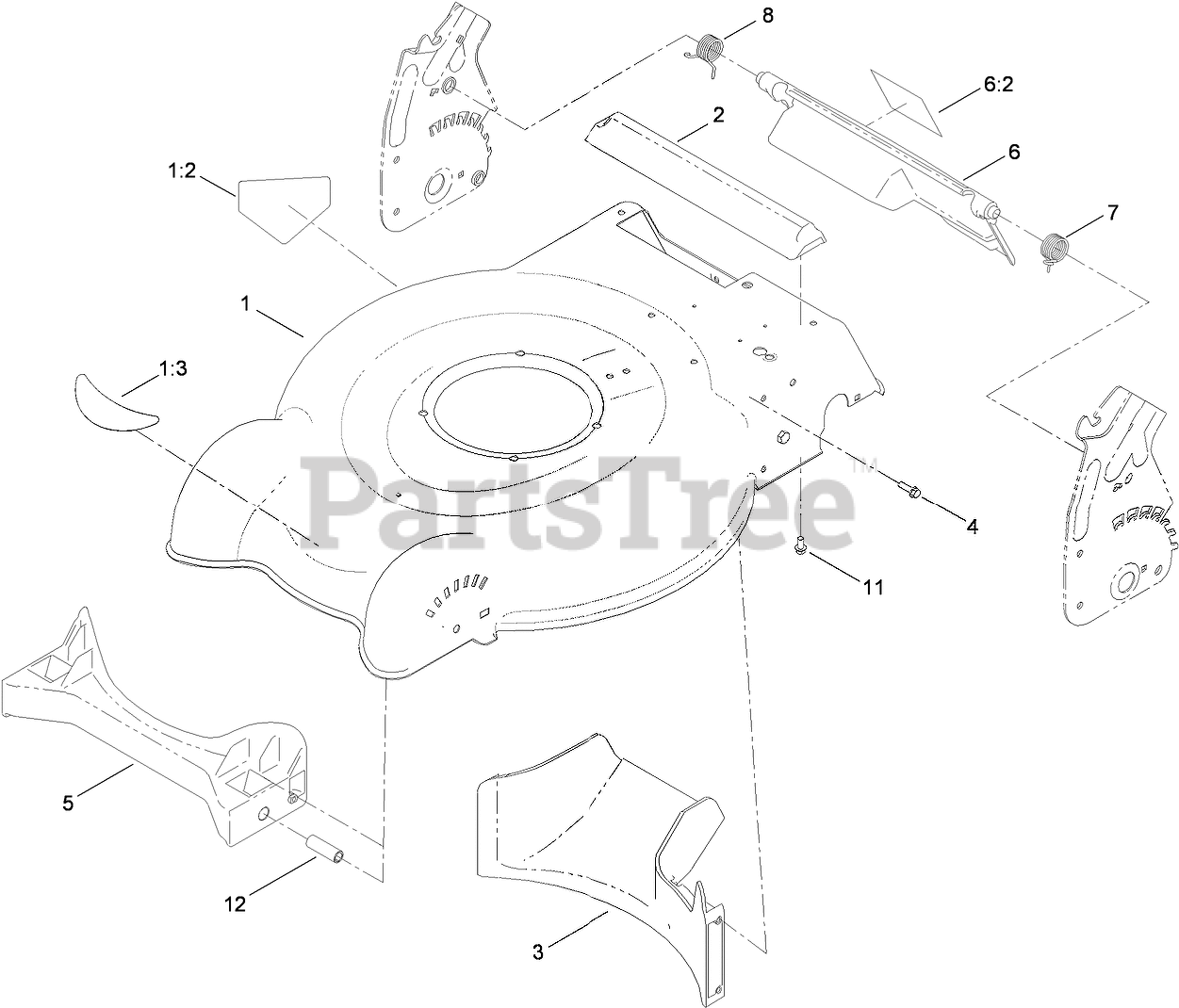

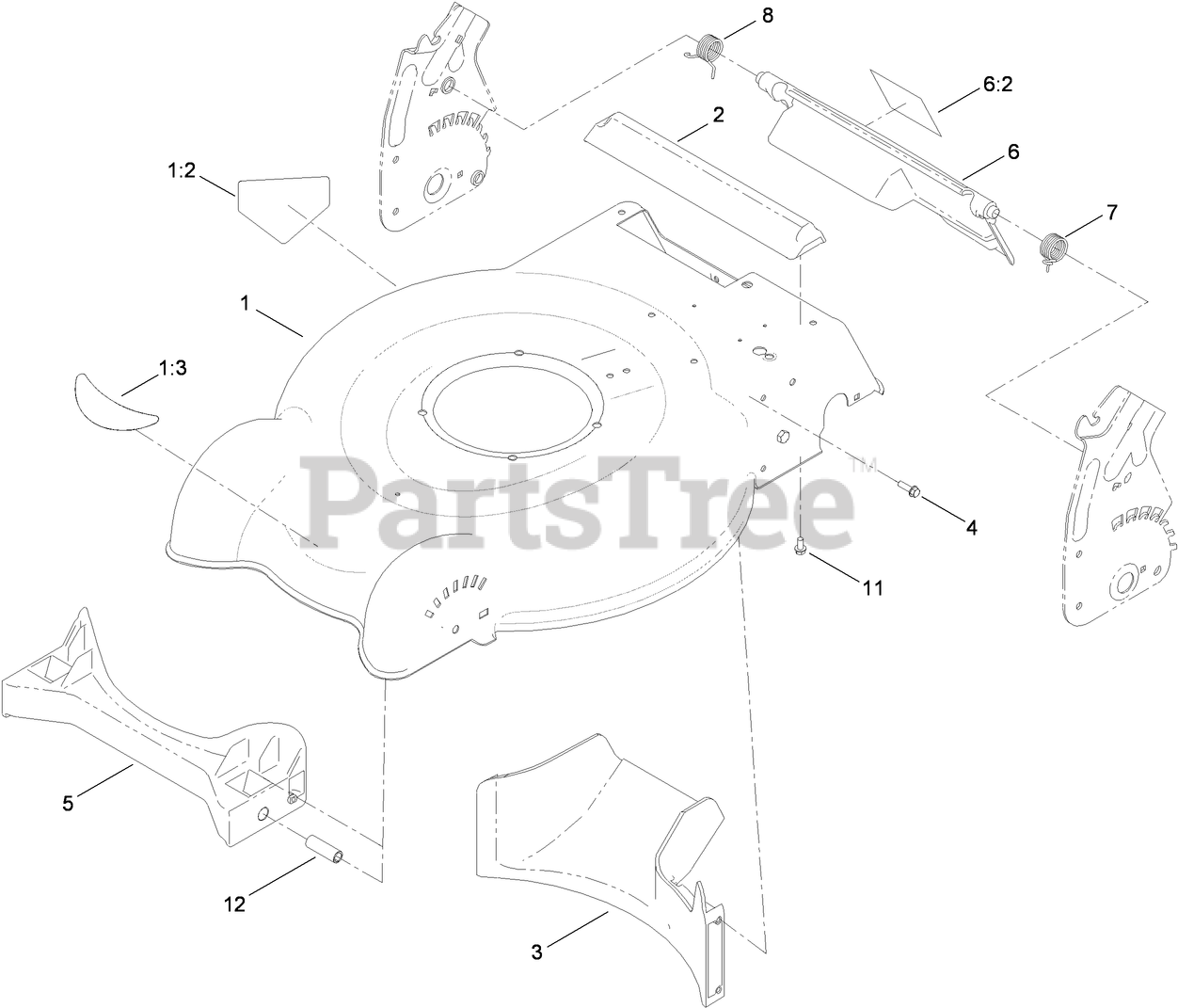

HOUSING AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 117-5944

HOUSING ASM

$250.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-8760

DECAL-DANGER

$11.99

$

In Stock, Qty 5

0

1:3

Toro 117-5947

DECAL-DECK

$22.99

$

Usually ships in 3-6 days

0

2

Toro 112-8845

CHUTE-REAR

$12.99

$

Usually ships in 3-6 days

0

3

Toro 112-8821

BAFFLE-REAR

$33.99

$

In Stock, only 1 left!

0

4

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

5

Toro 117-5971

BAFFLE-FRONT, RWD (CE)

$

$

Not available

6

Toro 117-5923

REAR DEFLECTOR ASM
(Superseded to 119-7029)

$22.99

$

In Stock, only 1 left!

0

6:2

Toro 117-4143

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

7

Toro 112-8848

SPRING-TORSION, LH

$5.99

$

In Stock, only 1 left!

0

8

Toro 112-8849

SPRING-TORSION, RH

$5.99

$

In Stock, only 2 left!

0

11

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 117-5992

SPACER-BAFFLE, FRONT

$2.99

$

Usually ships in 3-6 days

0
