29641 - Toro 50cm Walk-Behind Mower (SN: 290000001 - 290999999) (2009) FRONT AXLE ASSEMBLY Parts Diagram

50cm Walk-Behind Mower

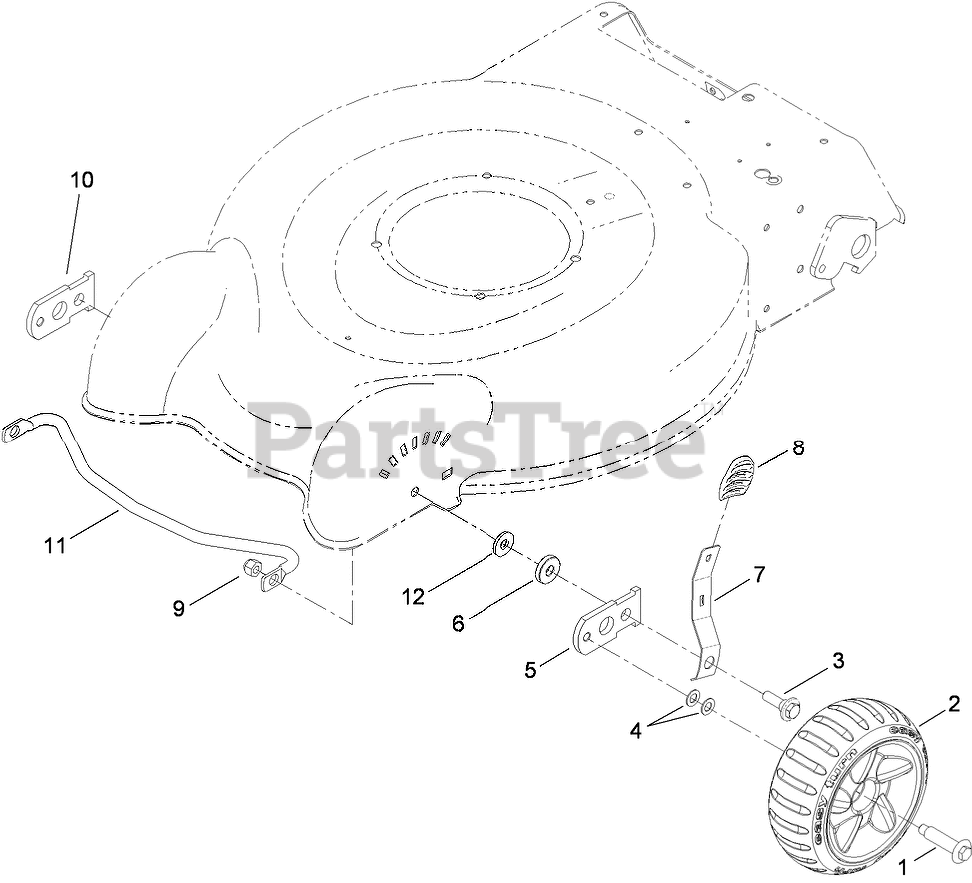

FRONT AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Toro 112-1548

7 INCH FRONT WHEEL ASM
(Superseded to 117-5964)

$22.99

$

In Stock, Qty 17

0

3

Toro 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

4

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Toro 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

6

Toro 92-4890

WASHER

$8.99

$

In Stock, only 2 left!

0

7

Toro 112-8828

ARM-SPRING, FRONT

$10.99

$

In Stock, only 4 left!

0

8

Toro 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

11

Toro 117-4161

BRACE-FRONT

$

$

Not available

12

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0
