29641 - Toro 50cm Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE AND BLADE ASSEMBLY Parts Diagram

50cm Walk-Behind Mower

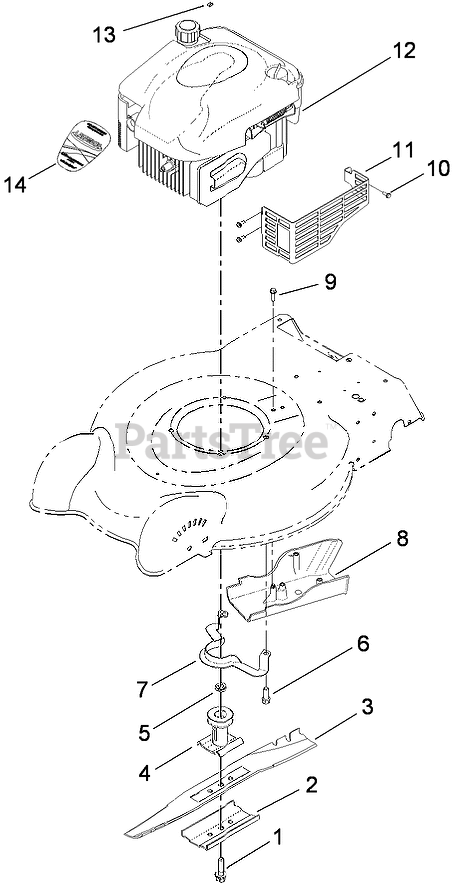

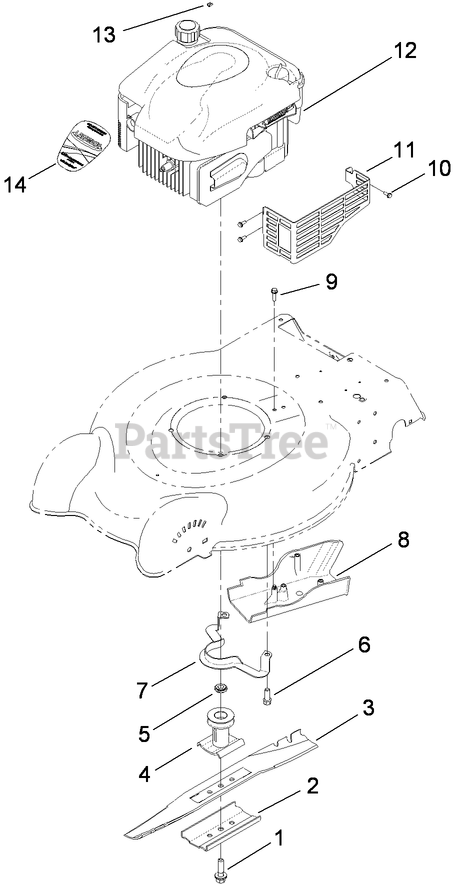

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Toro 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

3

Toro 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Toro 106-3987

DRIVER-BLADE

$31.99

$

In Stock, only 2 left!

0

5

Toro 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Toro 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Toro 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Toro 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

12

ENGINE-B&S, 124T02-0222-B

Note: Not serviced separately

$

$

Not available

12

ENGINE-B&S, 124T02-0222-B

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

13

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

14

Toro 117-5946

DECAL-ENGINE

$28.99

$

Usually ships in 3-6 days

0
