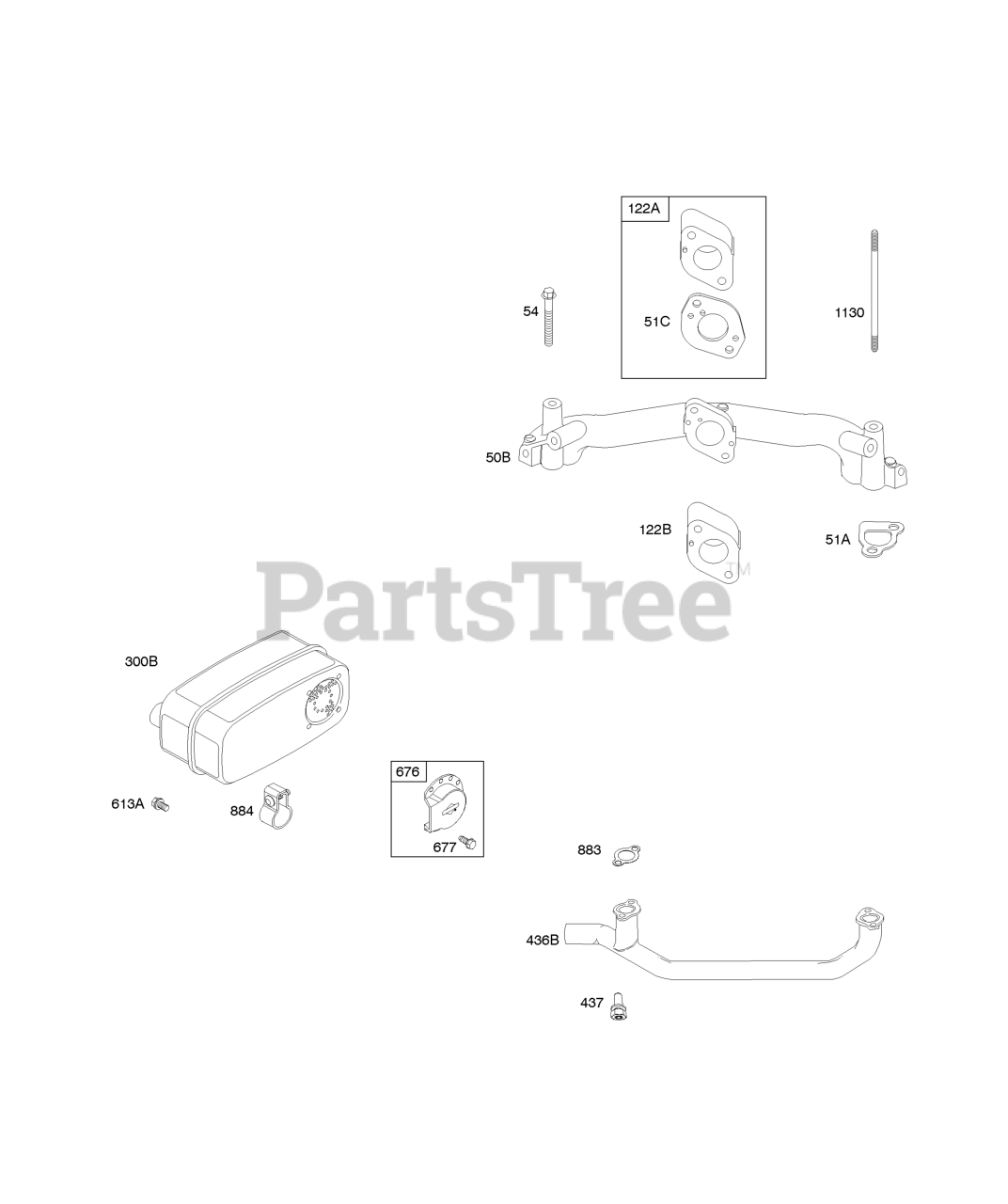

295777-0115-B1 - Briggs & Stratton Vertical Engine Exhaust System, itake Mnifold Parts Diagram

Vertical Engine

Exhaust System, itake Mnifold Parts Diagram

  • Title

50B

Briggs & Stratton 690754

Manifold-Intake

$131.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 692035

Gasket-Intake

$3.49

$

In Stock, Qty 12

0

51C

Briggs & Stratton 846597

Gasket-Intake

$2.99

$

In Stock, Qty 11

0

54

Briggs & Stratton 846604

Screw

Note: (Intake Manifold) (M8x67mm) (Dog Point)

$5.99

$

Usually ships in 2-12 days

0

122A

Briggs & Stratton 846596

Spacer-Carburetor

Note: (19mm) Used After Code Date 10010100

$11.99

$

Usually ships in 2-12 days

0

122B

Briggs & Stratton 690753

Spacer-Carburetor

Note: Used Before Code Date 10010200

$14.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 498984S

Muffler

$84.99

$

Usually ships in 2-12 days

0

436B

Briggs & Stratton 691502

Manifold-Exhaust

$128.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold)

$3.49

$

In Stock, Qty 8

0

613A

Briggs & Stratton 690297

Screw

Note: (Muffler)

$3.49

$

In Stock, Qty 12

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

677

Briggs & Stratton 794845

SCREW

Note: (Muffler Deflector)

$3.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

Usually ships in 2-12 days

0

884

Briggs & Stratton 691956

Clamp-Muffler

$15.99

$

In Stock, only 3 left!

0

1130

Briggs & Stratton 690746

Stud

Note: (Intake Manifold)

$8.49

$

Usually ships in 2-12 days

0
