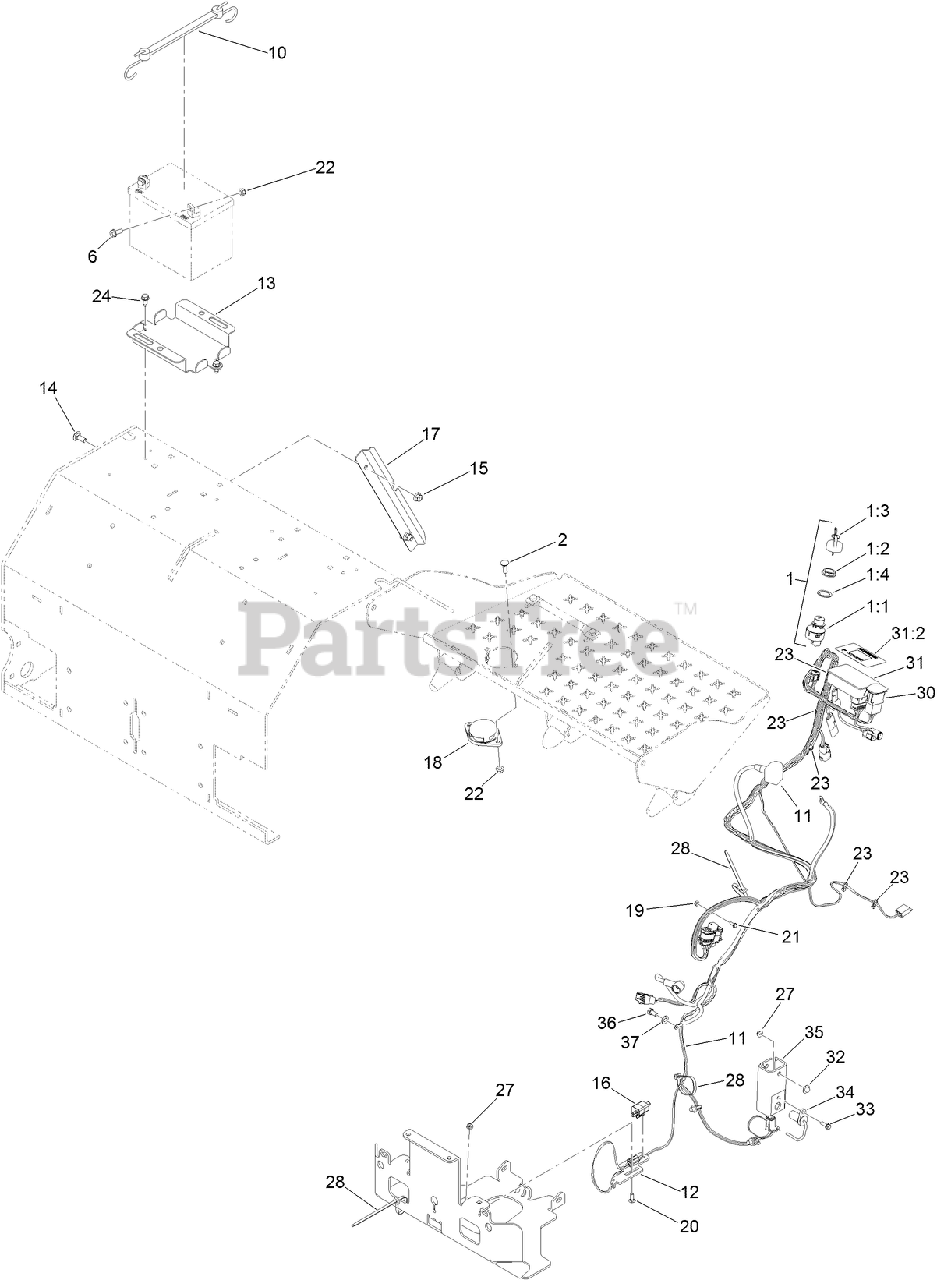

29521 - Toro 30" Stand-On Aerator (SN: 400000000 - 408863719) Electrical Assembly Parts Diagram

30" Stand-On Aerator

Electrical Assembly Parts Diagram

  • Title
1

Toro 126-6285

IGNITION SWITCH ASM

$54.99

$

In Stock, Qty 20+

0

1:1

HUB and BEARING ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 108-8660

NUT-MOUNTING

$35.99

$

In Stock, only 3 left!

0

1:3

Toro 106-5270

IGNITION KEY SET

$22.99

$

In Stock, Qty 18

0

1:4

Toro 108-8659

WASHER-BACKUP

$14.99

$

In Stock, only 1 left!

0

2

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

6

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

10

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

11

Toro 135-5919

HARNESS-WIRE

Note: Use dielectric grease on all unsealed connectors and terminals only. Do not apply in sealed connectors.

$546.99

$

Usually ships in 3-6 days

0

12

Toro 116-7589

MOUNT-SWITCH

$43.99

$

Usually ships in 3-6 days

0

13

Toro 116-9383-03

BRACKET-BATTERY

$42.99

$

Usually ships in 3-6 days

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

17

Toro 116-9394-03

GUARD-HARNESS

$21.99

$

Usually ships in 3-6 days

0

18

Toro 92-6282

SWITCH-SEAT

$34.99

$

In Stock, Qty 5

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

21

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

30

Toro 100-1535

SWITCH

$90.99

$

In Stock, only 3 left!

0

31

Toro 135-6910

HOUR METER ASM

$

$

Not available

31:2

Toro 135-1854

DECAL-METER, HOUR

$12.99

$

Usually ships in 3-6 days

0

32

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

33

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

34

Toro 135-4381

SENSOR, QUADRATURE

$234.99

$

Usually ships in 3-6 days

0

35

Toro 135-6609

HOUSING-DEPTH CONTROL 30

$69.99

$

Usually ships in 3-6 days

0

36

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

37

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!
