29519 - Toro 30" Stand-On Aerator (SN: 400000000 - 999999999) MAIN FRAME ASSEMBLY Parts Diagram

30" Stand-On Aerator

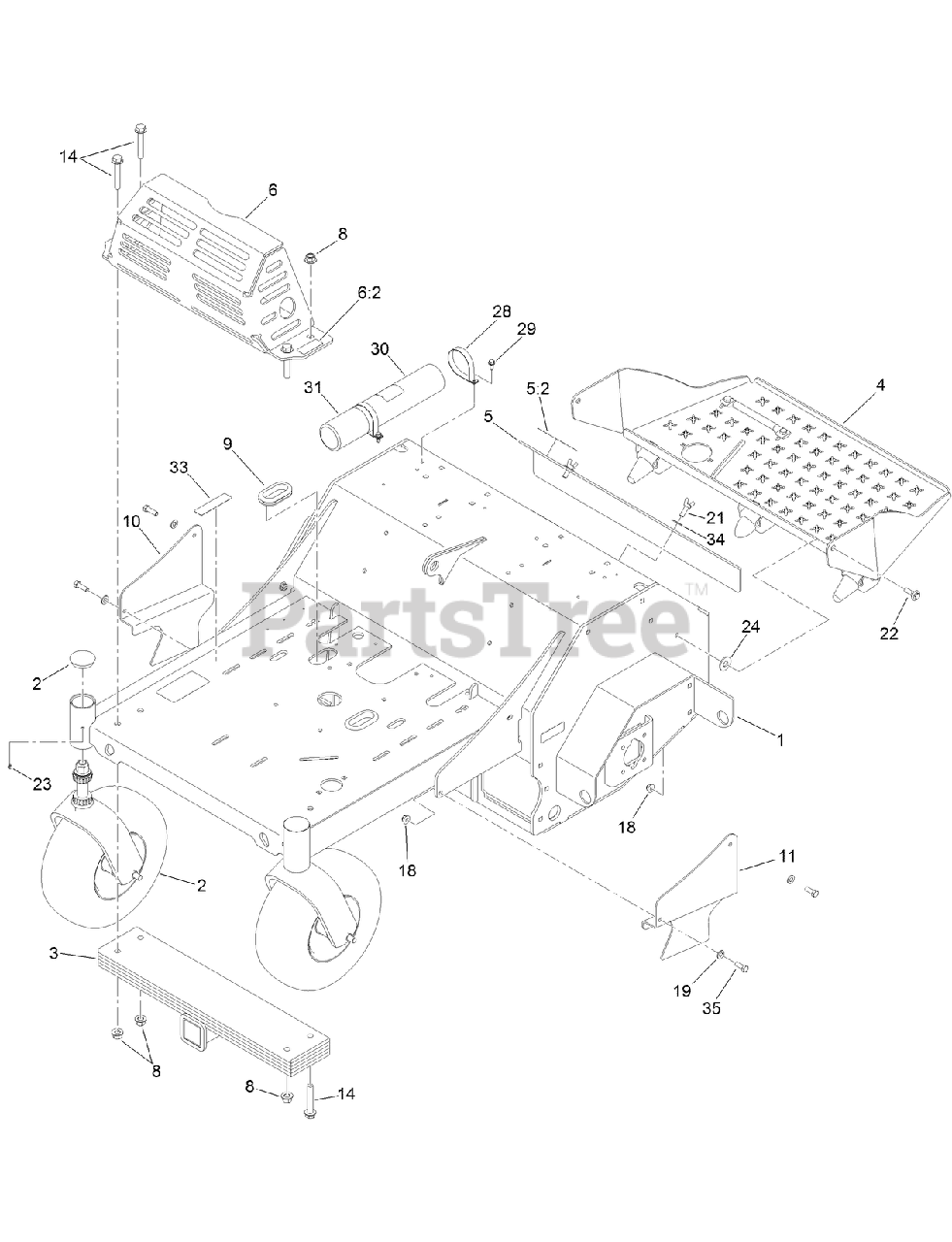

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 116-8138

MAIN FRAME ASM
(Superseded to 135-2517)

$2187.99

$

Usually ships in 3-6 days

0

2

FRONT CASTER ASM

Note: Not serviced separately

$

$

Not available

3

Toro 116-6536-01

WEIGHT

$564.99

$

Usually ships in 3-6 days

0

4

Toro 116-9135

PLATFORM W/ROCKER ASM

$533.99

$

Usually ships in 3-6 days

0

5

Toro 116-7300

ACCESS COVER ASM

$130.99

$

Usually ships in 3-6 days

0

5:2

Toro 121-6163

DECAL-OPERATION, TINE GROUND (CE)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 116-8258

MUFFLER GUARD ASM

$314.99

$

Usually ships in 3-6 days

0

6:2

Toro 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

8

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

9

Toro 126-0015

GROMMET

$5.99

$

Usually ships in 3-6 days

0

10

Toro 116-6612-01

GUARD-CHAIN, RH

$61.99

$

In Stock, only 2 left!

0

11

Toro 116-6611-01

GUARD-CHAIN, LH

$61.99

$

In Stock, only 2 left!

0

14

Toro 3234-40

SCREW-HF

$13.99

$

Usually ships in 3-6 days

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 126-6752

SCREW-THUMB

$7.49

$

In Stock, only 1 left!

0

22

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

23

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

24

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 107-1865

R-Clamp

$11.99

$

Usually ships in 3-6 days

0

29

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

30

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

31

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

33

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0

34

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

35

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+
