29519 - Toro 30" Stand-On Aerator (SN: 400000000 - 999999999) ENGINE ASSEMBLY Parts Diagram

30" Stand-On Aerator

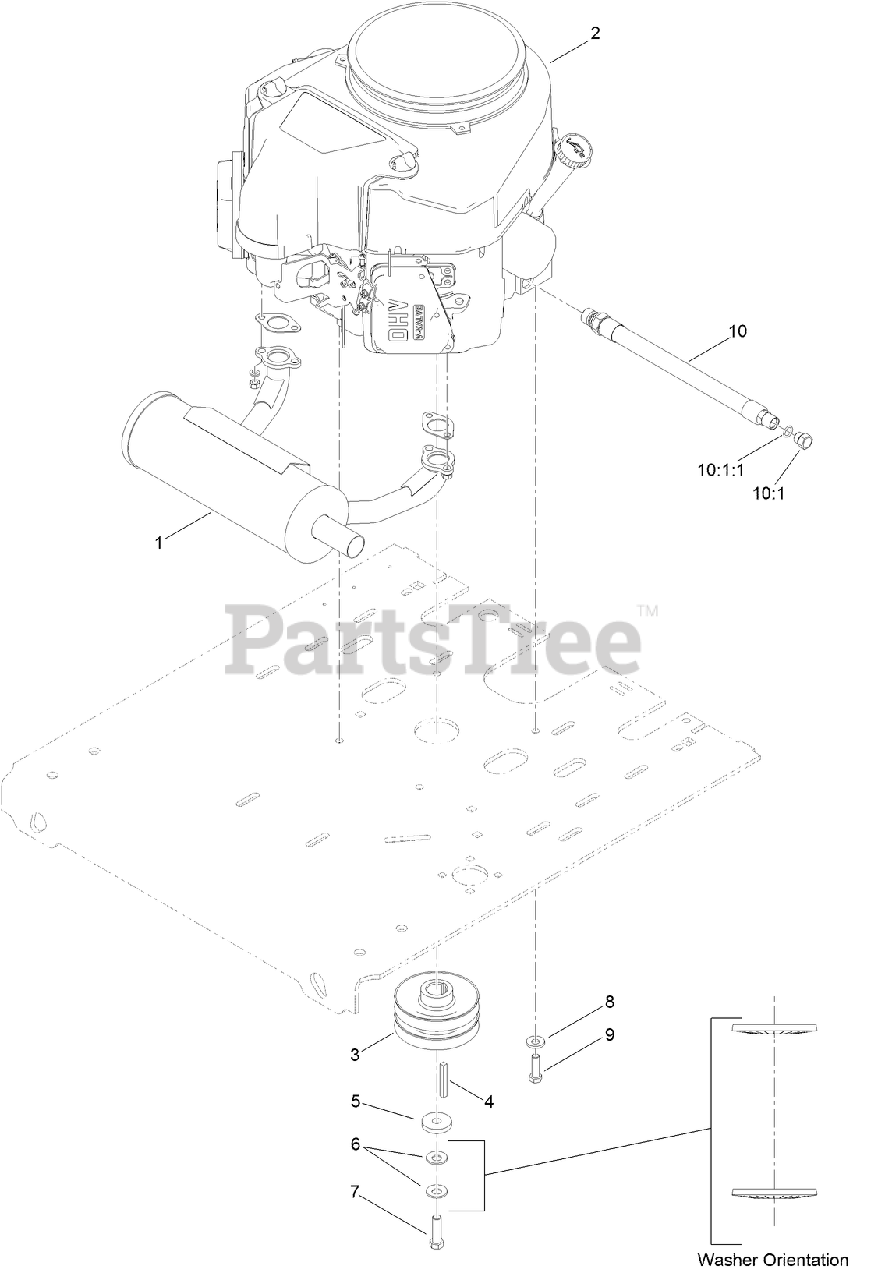

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-3735

MUFFLER-HORIZONTAL

$210.99

$

Usually ships in 3-6 days

0

2

ENGINE-KAWASAKI, FS541

Note: Not serviced separately

$

$

Not available

2

ENGINE-KAWASAKI, FS541

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Toro 116-9709

PULLEY

$148.99

$

Usually ships in 3-6 days

0

4

Toro 103-4177

KEY

$5.49

$

In Stock, only 1 left!

0

5

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 6

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

7

Toro 109-9761

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 7

0

8

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Toro 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$36.99

$

In Stock, Qty 5

0

10:1

Toro 353-508

PLUG-HH

Note: Torque to 24-26 ft-lb

$8.49

$

In Stock, only 1 left!

0

10:1:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0
