29518 - Toro 30" Stand-On Aerator (SN: 315000001 - 315999999) (2015) FUEL ASSEMBLY Parts Diagram

30" Stand-On Aerator

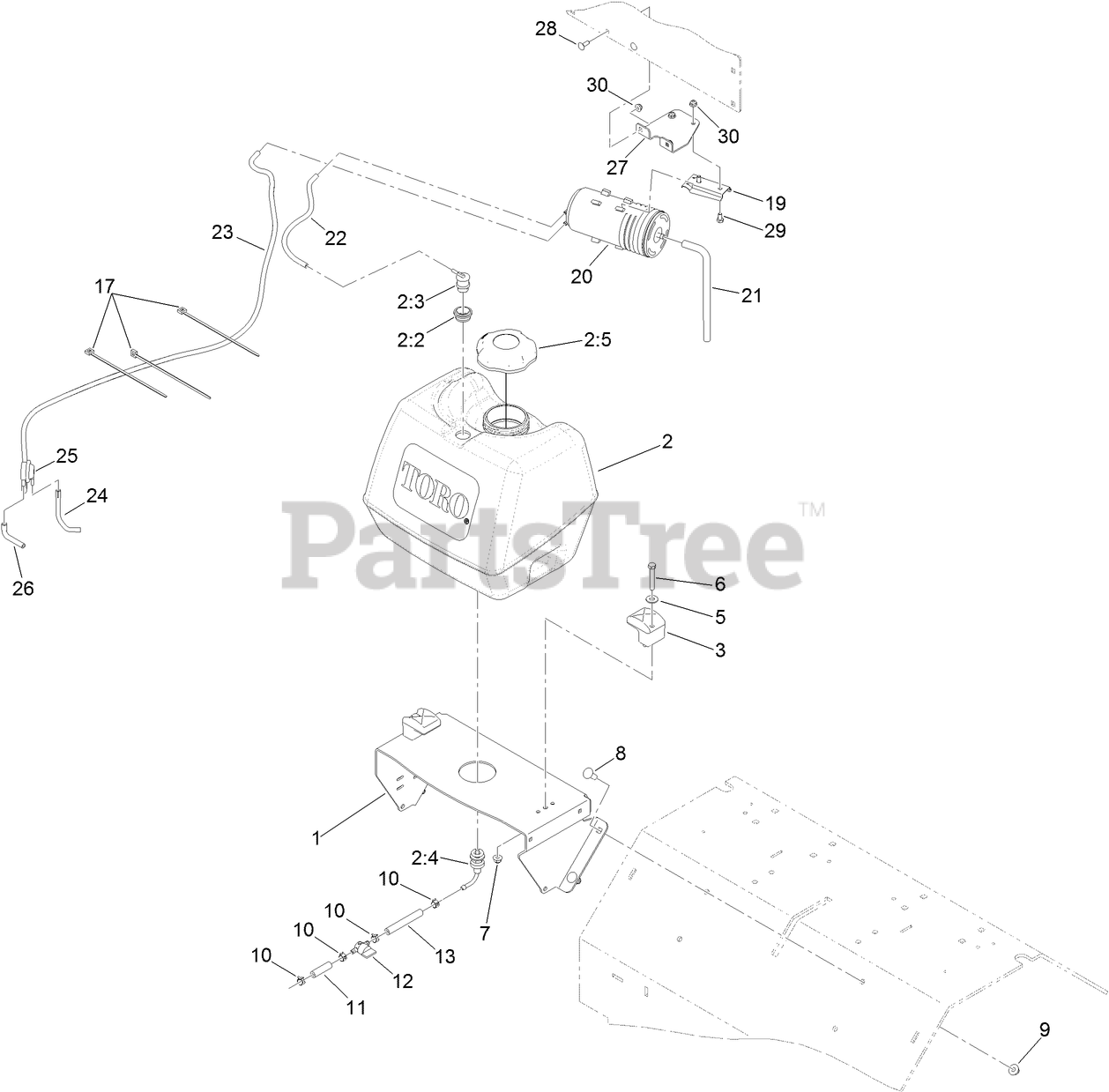

FUEL ASSEMBLY Parts Diagram

  • Title

1

Toro 116-9541-01

SUPPORT-TANK, FUEL

$106.99

$

Usually ships in 3-6 days

0

2

Toro 126-1526

FUEL TANK ASM

$

$

Not available

2:2

Toro 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

2:3

Toro 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

2:4

Toro 103-2605

FITTING-FUEL, BULKHEAD

$35.99

$

In Stock, only 3 left!

0

2:5

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$26.99

$

In Stock, only 1 left!

0

3

Toro 107-4543

CLAMP

$13.99

$

Usually ships in 3-6 days

0

5

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Toro 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

12

Toro 1-603770

VALVE-FUEL

$7.99

$

In Stock, Qty 8

0

13

Toro 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

17

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

20

Toro 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 1 left!

0

21

Toro 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

22

Toro 126-3703

HOSE-EMISSIONS

$6.49

$

Usually ships in 3-6 days

0

23

Toro 116-3116

HOSE-VENT, FORMED

$15.99

$

Usually ships in 3-6 days

0

24

Toro 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

25

Toro 116-2232

VALVE-CONTROL, VACUUM

$25.99

$

In Stock, only 3 left!

0

26

Toro 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

27

Toro 126-2991-03

BRACKET-MOUNTING, CANISTER

$30.99

$

Usually ships in 3-6 days

0

28

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

29

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

30

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
