29517 - Toro 24" Stand-On Aerator (SN: 400000000 - 404319999) Ground Drive Assembly Parts Diagram

24" Stand-On Aerator

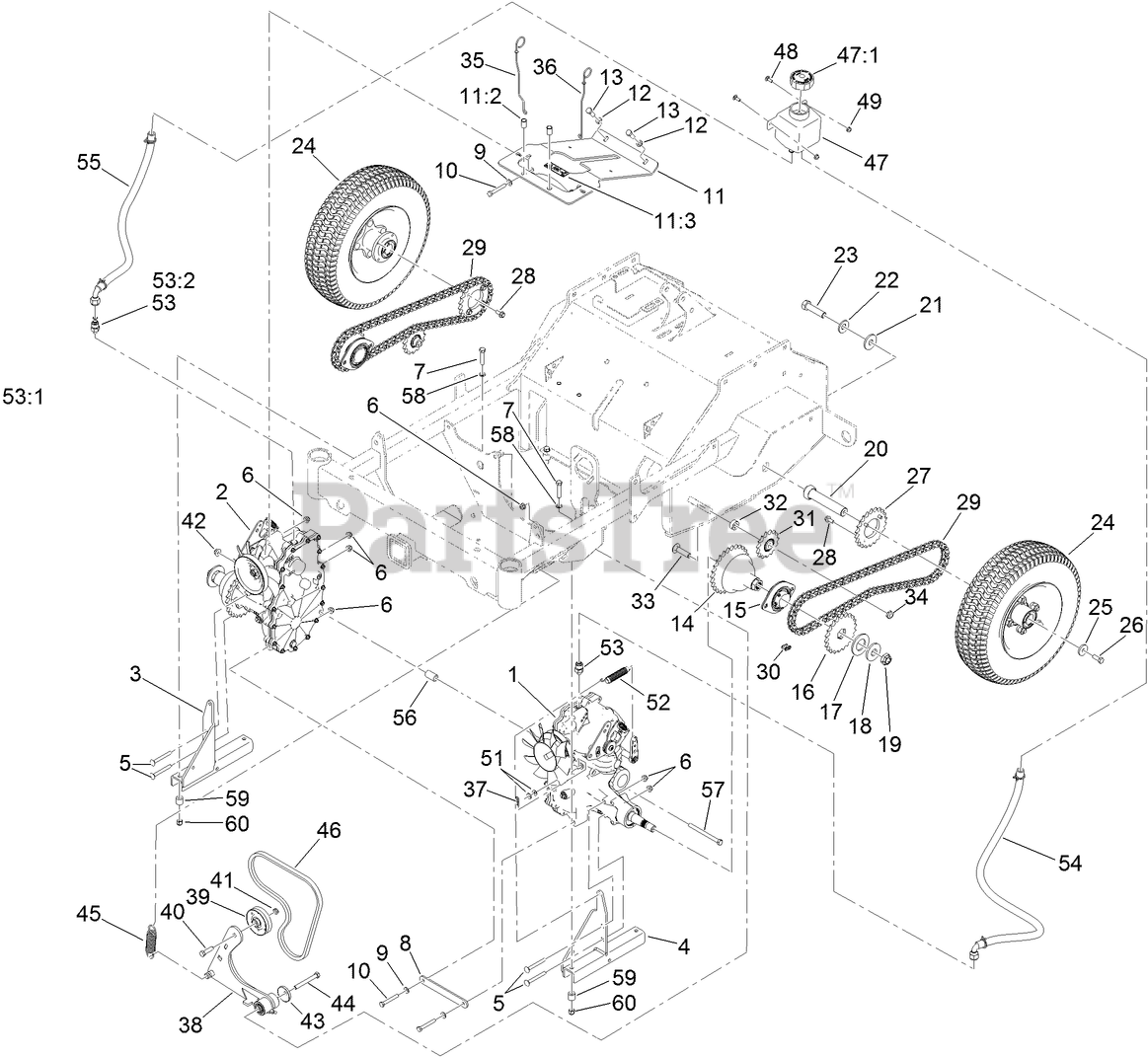

Ground Drive Assembly Parts Diagram

  • Title

1

Toro 126-9064

HYDRO-ZT3100, LH
(Superseded to 142-6970)

$1476.99

$

Usually ships in 3-6 days

0

2

Toro 126-9065

HYDRO-ZT3100, RH
(Superseded to 142-6971)

$1476.99

$

Usually ships in 3-6 days

0

3

Toro 135-2004-03

MOUNT-HYDRO, RH

$67.99

$

Usually ships in 3-6 days

0

4

Toro 135-2006-03

MOUNT-HYDRO, LH

$67.99

$

Usually ships in 3-6 days

0

5

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

8

Toro 126-9092-03

CROSSMEMBER-TRANSMISSION

$6.49

$

Usually ships in 3-6 days

0

9

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

10

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

11

Toro 135-2497

SUPPORT-COVER

$101.99

$

Usually ships in 3-6 days

0

11:2

Toro 32148-10

NUT-CLINCH

$8.49

$

Usually ships in 3-6 days

0

11:3

Toro 121-6161

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 135-0537

HUB-BELL

$435.99

$

Usually ships in 3-6 days

0

15

Toro 135-1056

BEARING-FLANGED

$66.99

$

Usually ships in 3-6 days

0

16

Toro 135-0347

SPROCKET

$64.99

$

Usually ships in 3-6 days

0

17

Toro 135-0360

WASHER-SPACER

$2.99

$

Usually ships in 3-6 days

0

18

Toro 26-1990

WASHER-BELLEVILLE

$19.99

$

Usually ships in 3-6 days

0

19

Toro 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

20

Toro 135-1895

AXLE-WHEEL, DRIVE

$56.99

$

Usually ships in 3-6 days

0

21

Toro 135-1894

WASHER-SPACER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 2 left!

0

23

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 2 left!

0

24

Toro 126-9846

WHEEL AND TIRE ASM
(Superseded to 142-4438)

$150.99

$

Usually ships in 3-6 days

0

25

Toro 53-6380

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

26

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

27

Toro 126-9075

SPROCKET

$64.99

$

In Stock, only 2 left!

0

28

Toro 98-9940

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

29

Toro 135-1100

CHAIN-ROLLER

$212.99

$

Usually ships in 3-6 days

0

30

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

31

Toro 126-9108

SPROCKET-IDLER, 15T

$103.99

$

In Stock, only 2 left!

0

32

Toro 126-9498

SPACER

$6.99

$

Usually ships in 3-6 days

0

33

Toro 323-34

SCREW-HH

$6.49

$

In Stock, only 2 left!

0

34

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

35

Toro 135-0683

ROD-BYPASS, LH

$18.99

$

Usually ships in 3-6 days

0

36

Toro 135-0685

ROD-BYPASS, RH

$18.99

$

Usually ships in 3-6 days

0

37

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

38

Toro 126-9116

IDLER ARM ASM

$177.99

$

Usually ships in 3-6 days

0

39

Toro 116-9715

PULLEY-IDLER

$63.99

$

In Stock, only 1 left!

0

40

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

41

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 18

0

42

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Toro 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

44

Toro 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

45

Toro 1-603402

SPRING-EXTENSION

$7.99

$

In Stock, only 3 left!

0

46

Toro 126-9834

BELT-V, COGGED

$33.99

$

In Stock, only 2 left!

0

47

Toro 109-2250

TANK-HYD

$63.99

$

In Stock, Qty 8

0

47:1

Toro 109-3320

CAP-RESERVOIR, HYD

$27.99

$

In Stock, only 1 left!

0

48

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

51

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

52

Toro 109-7124

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

53

Toro 135-3138

FITTING-STRAIGHT

$6.49

$

Usually ships in 3-6 days

0

53:1

Toro 237-78

O-RING

$3.99

$

Usually ships in 3-6 days

0

53:2

Toro 1-603992

O-RING

$2.99

$

In Stock, Qty 20+

0

54

Toro 135-0061

HOSE ASM

$47.99

$

Usually ships in 3-6 days

0

55

Toro 135-0062

HOSE ASM

$41.99

$

Usually ships in 3-6 days

0

56

Toro 135-0124

SPACER

$10.99

$

Usually ships in 3-6 days

0

57

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

58

Toro 106-5592

SPACER-BRAKE, PARKING

$15.99

$

Usually ships in 3-6 days

0

59

Toro 98-8895

SPACER

$26.99

$

Usually ships in 3-6 days

0

60

Toro 112-0236

NUT-LOCK

$5.99

$

Usually ships in 3-6 days

0
