295 (190-295-100) - Cub Cadet 54" Mower Deck Deck Wheels And Rollers Parts Diagram

54" Mower Deck

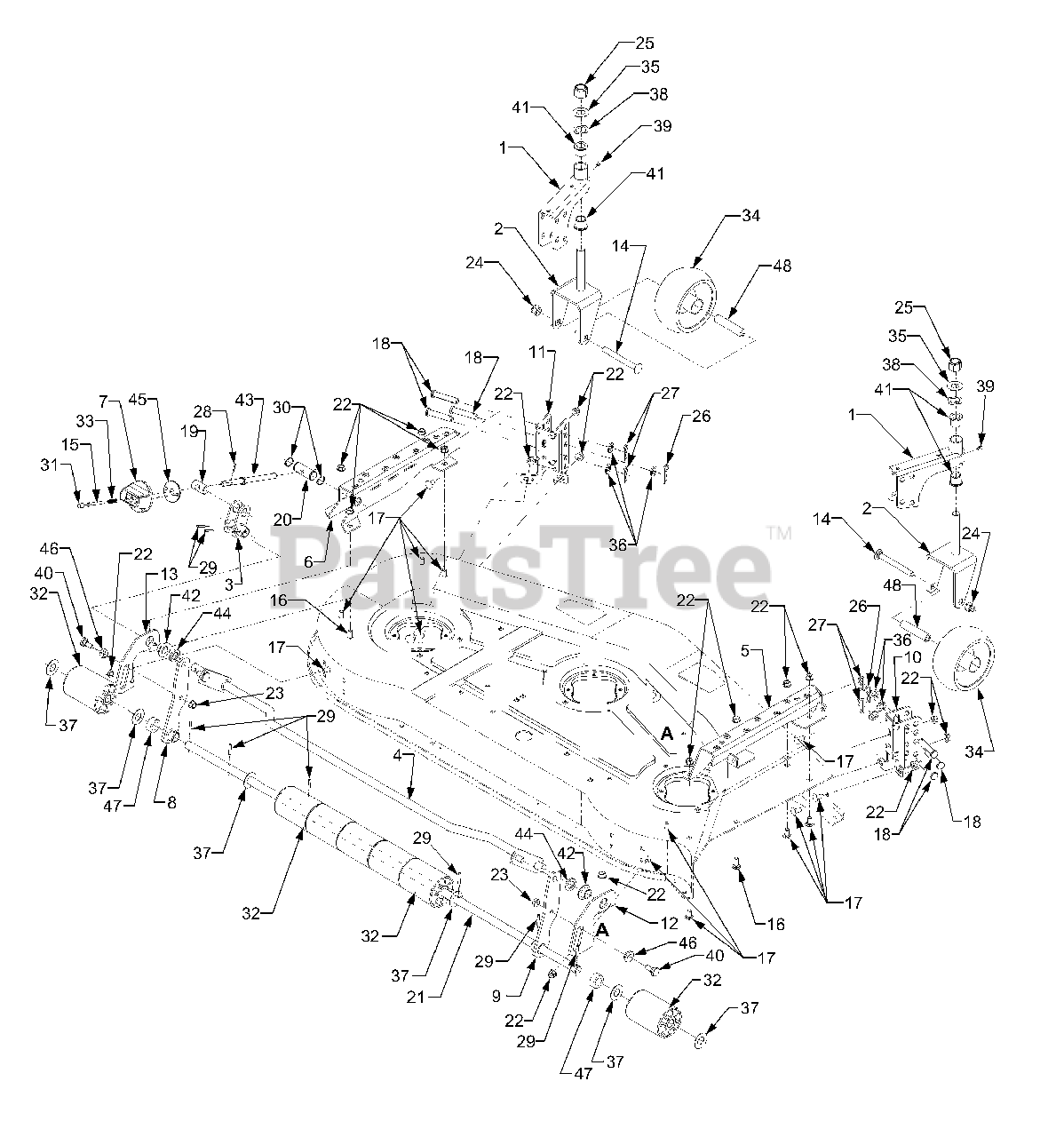

Deck Wheels And Rollers Parts Diagram

  • Title

1

Cub Cadet 603-0611-0716

Assembly, Arm- Caster Wheel

$117.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0612-0716

Assembly, Yoke - Caster Wheel
(Superseded to 603-0612-4021)

$77.99

$

In Stock, only 2 left!

0

3

Cub Cadet 603-0614-0716

Assembly, Collar

$76.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0617-0637

Assembly, Arm
(Superseded to 603-0617)

$

$

Not available

5

Cub Cadet 603-0631-0716

Assembly, Brace (R.H.)

$

$

Not available

6

Cub Cadet 603-0632-0716

Assembly, Brace (L.H.)

$167.99

$

In Stock, only 1 left!

0

7

Cub Cadet 603-0693

Assembly, Knob w/detent pin

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20466

Label, Height Adjust

$

$

Not available

8

Cub Cadet 603-0777

Assembly, Pivot Link (L.H.)
(Superseded to 903-0777)

$124.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 603-0778

Assembly, Pivot Link (R.H.)

$

$

Not available

10

Cub Cadet 703-3216-0716

Bracket, Height Adjuster (R.H.)
(Superseded to 703-3216-4021)

$68.99

$

In Stock, only 3 left!

0

11

Cub Cadet 703-3295-0716

Bracket, Height Adjuster (L.H.)

$73.99

$

In Stock, only 1 left!

0

12

Cub Cadet 703-3519

Bracket Guide (R.H.)

$

$

Not available

13

Cub Cadet 703-3520

Bracket, Guide (L.H.)

$41.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-1638

Bolt, Carriage 1/2-13 x 4.5"

$10.99

$

In Stock, Qty 10

0

15

Cub Cadet 710-1800

Screw, Socket Hd Lock 1/4-20 x 2.0

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-3168

Bolt, Carriage 3/8-16 x 1"

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3178

Bolt, Carriage 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 711-0761

Pin, Clevis

$19.99

$

In Stock, only 4 left!

0

19

Cub Cadet 711-1294

Ferrule, Adjustable

$49.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-1403

Ferrule, Adjust. Thrd, 1/2-13

$49.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 711-1426

Axle, Roller

$170.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0431

Nut, Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3004A

Nut, Flanged Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3083

Nut, Hex Lock 1/2-13

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-3107

Nut, Hex Lock 3/4-10

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 714-0147

Pin, Internal Cotter

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.49

$

In Stock, Qty 18

0

28

Cub Cadet 715-0129

Pin, Spirol, .125 x .812

$4.99

$

In Stock, only 1 left!

0

29

Cub Cadet 715-0150

Pin, Roll 3/16" Dia. x 1.1"

$4.49

$

In Stock, Qty 15

0

30

Cub Cadet 716-0111

Ring, External Retaining

$6.99

$

In Stock, only 4 left!

0

31

Cub Cadet 731-3287

Cap, Tube

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-3305

Roller, Deck

$32.99

$

In Stock, Qty 20+

0

33

Cub Cadet 732-0437

Spring, Compression

$10.99

$

In Stock, only 1 left!

0

34

Cub Cadet 734-3195

Caster, Wheel w/Bearings
(Superseded to 734-3195A)

$125.99

$

Usually ships in 3-6 days

0

Cub Cadet 741-3090

Bearing, Flange

$17.99

$

In Stock, Qty 5

0

35

Cub Cadet 736-0188

Washer, Flat .76" I.D.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0192

Washer, Flat .535" I.D.

$4.49

$

In Stock, Qty 18

0

37

Cub Cadet 736-0316

Washer, Flat .78" I.D.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0526

Washer, Wave .88" I.D.

$6.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0138A

Screw, Shoulder

$6.99

$

In Stock, only 2 left!

0

41

Cub Cadet 741-0339

Bearing, Flange .75" I.D.
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

42

Cub Cadet 741-0376

Bearing, Flange .75" I.D.
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

43

Cub Cadet 747-3409

Screw, Adjustable

$108.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 748-0160

Spacer, .75 ID x 1.25 OD x .175
(Superseded to 948-0160)

$6.99

$

In Stock, Qty 9

0

45

Cub Cadet 748-3092

Hub, Spring Detent

$29.99

$

In Stock, only 1 left!

0

46

Cub Cadet 748-3097

Bushing, Sq. Hgt. Adjust

$10.99

$

In Stock, only 4 left!

0

47

Cub Cadet 750-0456

Spacer, .790 ID x .347 Lg.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 750-3222

Axle, Caster Wheel

$27.99

$

In Stock, Qty 6

0
