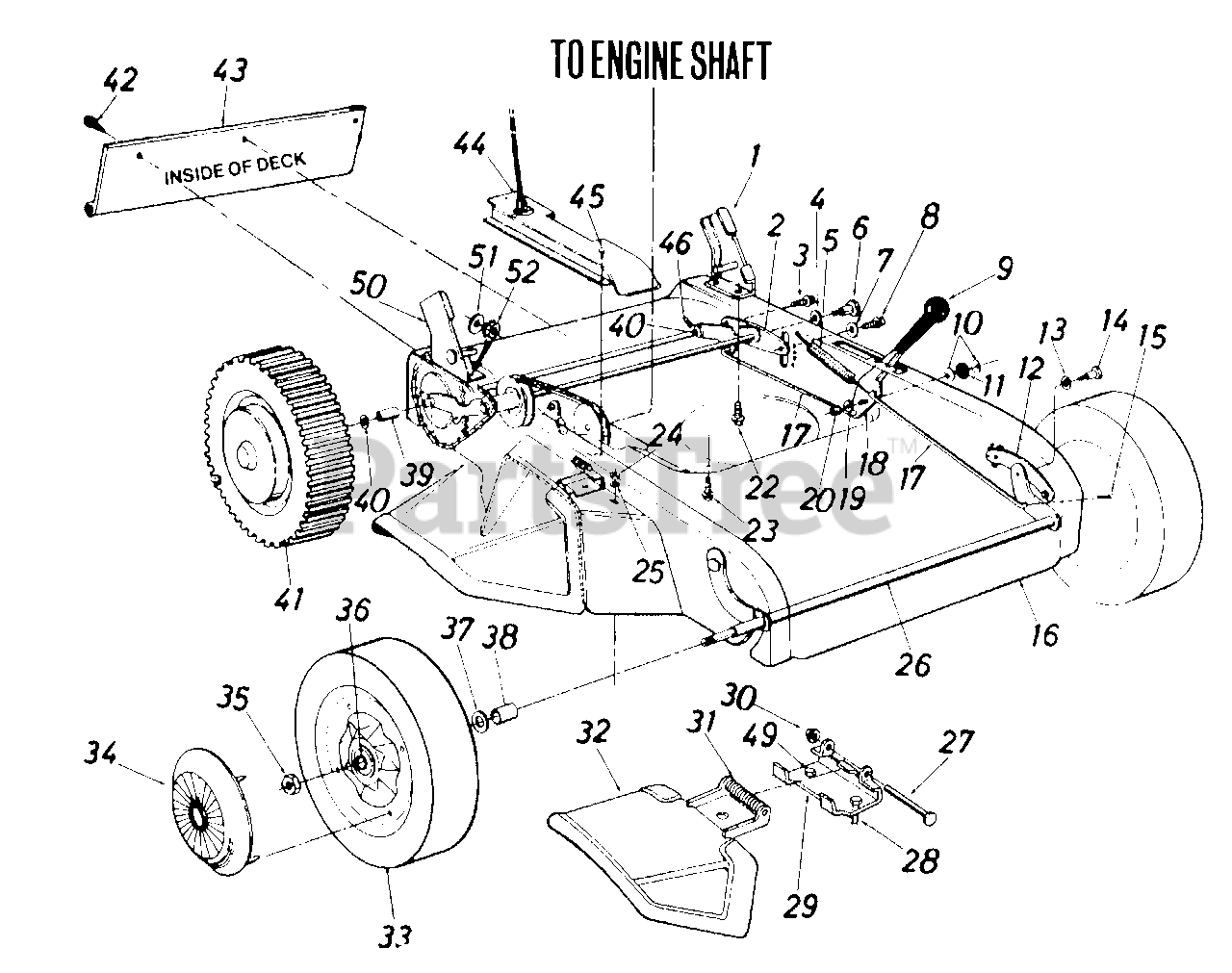

294 (294123) - Cub Cadet Walk-Behind Mower (1983) Wheel, Chute And Upper Deck Assemblies Parts Diagram

Walk-Behind Mower

Wheel, Chute And Upper Deck Assemblies Parts Diagram

  • Title

1

Cub Cadet 12935

Handle Mount Brkt. Ass'y - L.H.

$

$

Not available

2

Cub Cadet 14190

Rear Pivot Brkt.

$

$

Not available

3

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 736-0221

Int. L-Wash. 3/8 I.D.

$

$

Not available

5

Cub Cadet 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

6

Cub Cadet 738-0149

Shld. Bolt .625 Dia. x .425

$

$

Not available

7

Cub Cadet 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 720-0143

Grip - Black

$

$

Not available

10

Cub Cadet 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 14189

Front Pivot Brkt.

$

$

Currently unavailable

13

Cub Cadet 736-0221

Int. L-Washer 3/8 I.D.

$

$

Not available

14

Cub Cadet 738-0149

Shld. Bolt .625 Dia. x .425

$

$

Not available

15

Cub Cadet 714-0507

Cotter Pin 3/32 x 3/4 Lg.

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 14939

Upper Deck Ass'y.

$

$

Currently unavailable

17

Cub Cadet 10080

Height Adj. Rod

$

$

Not available

18

Cub Cadet 10666

Height Adj. Lever

$

$

Not available

19

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D.

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

24

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 10662

Front Axle Ass'y.

$

$

Currently unavailable

27

Cub Cadet 711-0555

Pivot Pin

$

$

Not available

28

Cub Cadet 710-0352

Hex B-Tap Scr. 1/4 x .38 Lg.

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 11130

Adapter Plate

$

$

Not available

30

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

32

Cub Cadet 11679

Chute Deflector Ass'y. - Comp.

$

$

Not available

33

Cub Cadet 734-0920

Wheel Ass'y. Comp. 8 x 1.75

$

$

Currently unavailable

34

Cub Cadet 731-0354

Hub Cap - Front

$

$

Not available

35

Cub Cadet 712-0200

Hex Ins. L-Nut 1/4-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

36

Cub Cadet 741-0180

Flanged Ball Brg. .500" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D.

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

39

Cub Cadet 750-0190

Spacer

$

$

Not available

40

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D.

$4.49

$

In Stock, only 2 left!

0

41

Cub Cadet 734-0880

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

42

Cub Cadet 710-0252

Hex Bolt, 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 731-0586

Rear Flap Ass'y.

$

$

Currently unavailable

44

Cub Cadet 14186

Belt Guard

$

$

Currently unavailable

45

Cub Cadet 710-0224

Hex Self-Tap Scr. #10 x .50" Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, only 2 left!

0

46

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

?47

Cub Cadet 741-0324

Hex Flange Brg.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

49

Cub Cadet 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 12936

Handle Mount Brkt. Ass'y. - R.H.

$

$

Not available

51

Cub Cadet 736-0173

Fl-Wash. .281 I.D. x .73 O.D.

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0

?53

Cub Cadet 15735

Rear Flap Stop Brkt.

Note: (Not Shown)

$

$

Currently unavailable
