294 (294123) - Cub Cadet Walk-Behind Mower (1983) Handle, Wheel And Deck Assemblies Parts Diagram

Walk-Behind Mower

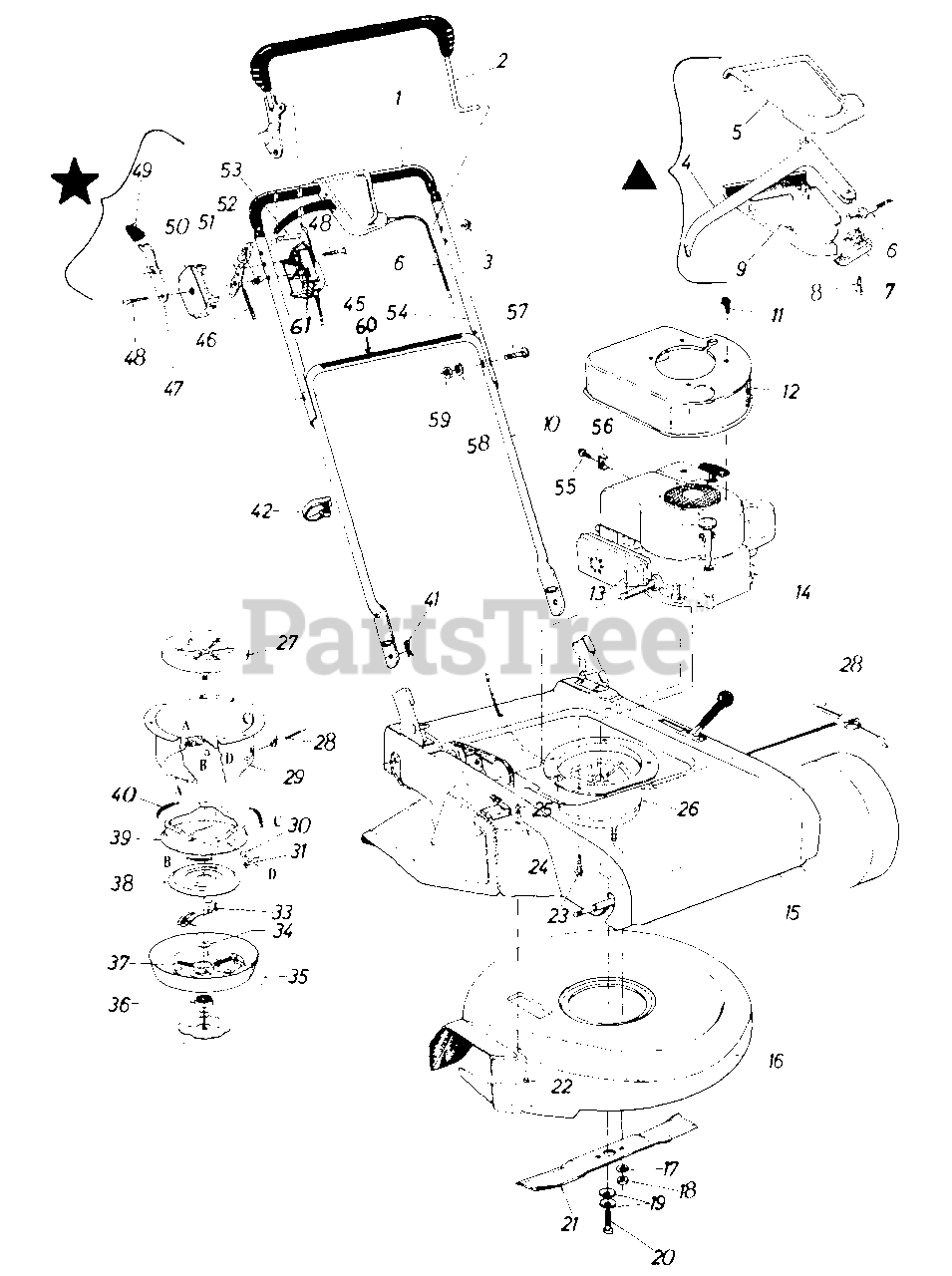

Handle, Wheel And Deck Assemblies Parts Diagram

  • Title

Cub Cadet 753-0361

Control Housing Complete

Note: Incl. Ref. Nos. 45, 47, 48, 49, 50 & 51, 52, 53, 61

$

$

Not available

Cub Cadet 753-0362

Clutch Control Housing Complete

Note: Incl. Ref. Nos. 4, 5, 7, 8 & 9

$

$

Not available

1

Cub Cadet 718-0145

Grip

$

$

Currently unavailable

2

Cub Cadet 731-0610

Control Handle - R.H.

$

$

Not available

3

Cub Cadet 726-0135

Cap Speed Nut 5/16 Rod

$6.99

$

In Stock, only 1 left!

0

4

Cub Cadet 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 731-0617

Control Cover Half - Upper
(Superseded to 731-0617A)

$

$

Not available

6

Cub Cadet 746-0464

Drive Clutch Cable - 59"

$

$

Not available

7

Cub Cadet 731-0619

Cable Mounting Cap

$

$

Not available

8

Cub Cadet 710-0841

Flat C'Sunk Hd. Tap Scr. #10 x 1" Lg.

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-0618

Control Cover Half - Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

10

Cub Cadet 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 15492

Shroud

$

$

Currently unavailable

13

Cub Cadet 715-0144

Spring Pin 3/16 Dia. x 1.5" Lg.

$

$

Not available

14

Engine

$

$

Not available

15

Cub Cadet 14939

Upper Deck Ass'y.

Note: Color Code 499

$

$

Currently unavailable

16

Cub Cadet 11425

Lower Deck Ass'y.

Note: Color Code 499

$

$

Currently unavailable

17

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

19

Cub Cadet 736-0105

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0818

Hex Bolt 3/8-24 x 2" Lg. (Grade 8)

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 742-0221

21" Blade

$

$

Not available

22

Cub Cadet 710-0260

Carr. Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 717-0488

Blade Brake/Clutch Ass'y. Comp.

$

$

Not available

27

Cub Cadet 719-0256

Fan Adapter

$

$

Not available

28

Cub Cadet 746-0400

Blade Clutch Cable - 46"

$

$

Not available

29

Cub Cadet 14308

Clutch Housing

$

$

Currently unavailable

30

Cub Cadet 741-0326

Steel Ball 1/2" Dia.

$

$

Not available

31

Cub Cadet 731-0520

Ball Block

$

$

Not available

33

Cub Cadet 710-0875

Hex TT-Tap L-Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

34

Cub Cadet 736-0333

Fl-Wash. .69" I.D. x 1.06" O.D.

$

$

Not available

35

Cub Cadet 14300

Clutch Blade Housing Ass'y.

$

$

Not available

36

Cub Cadet 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

37

Cub Cadet 732-0396

Compression Spring

$

$

Not available

38

Cub Cadet 14304

Clutching Cone

$

$

Not available

39

Cub Cadet 14305

Brake Cup Cone

$

$

Currently unavailable

40

Cub Cadet 732-0397

Extension Spring

$

$

Not available

41

Cub Cadet 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 726-0192

Cable Tie

$

$

Not available

45

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

46

Cub Cadet 746-0417

Throttle Wire - 43"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

47

Cub Cadet 732-0401

Lockout Spring

$

$

Not available

48

Cub Cadet 710-0796

Truss Mach. Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

49

Cub Cadet 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

50

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

51

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

53

Cub Cadet 731-0607

Lock Pin

$

$

Not available

54

Cub Cadet 749-0537

Upper Handle

$

$

Not available

55

Cub Cadet 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 751-0333

Casing Clamp

$

$

Not available

57

Cub Cadet 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

58

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 777-3453

Control Label-Handle

$

$

Currently unavailable

61

Cub Cadet 777-3456

Control Label-Throttle

$

$

Not available
