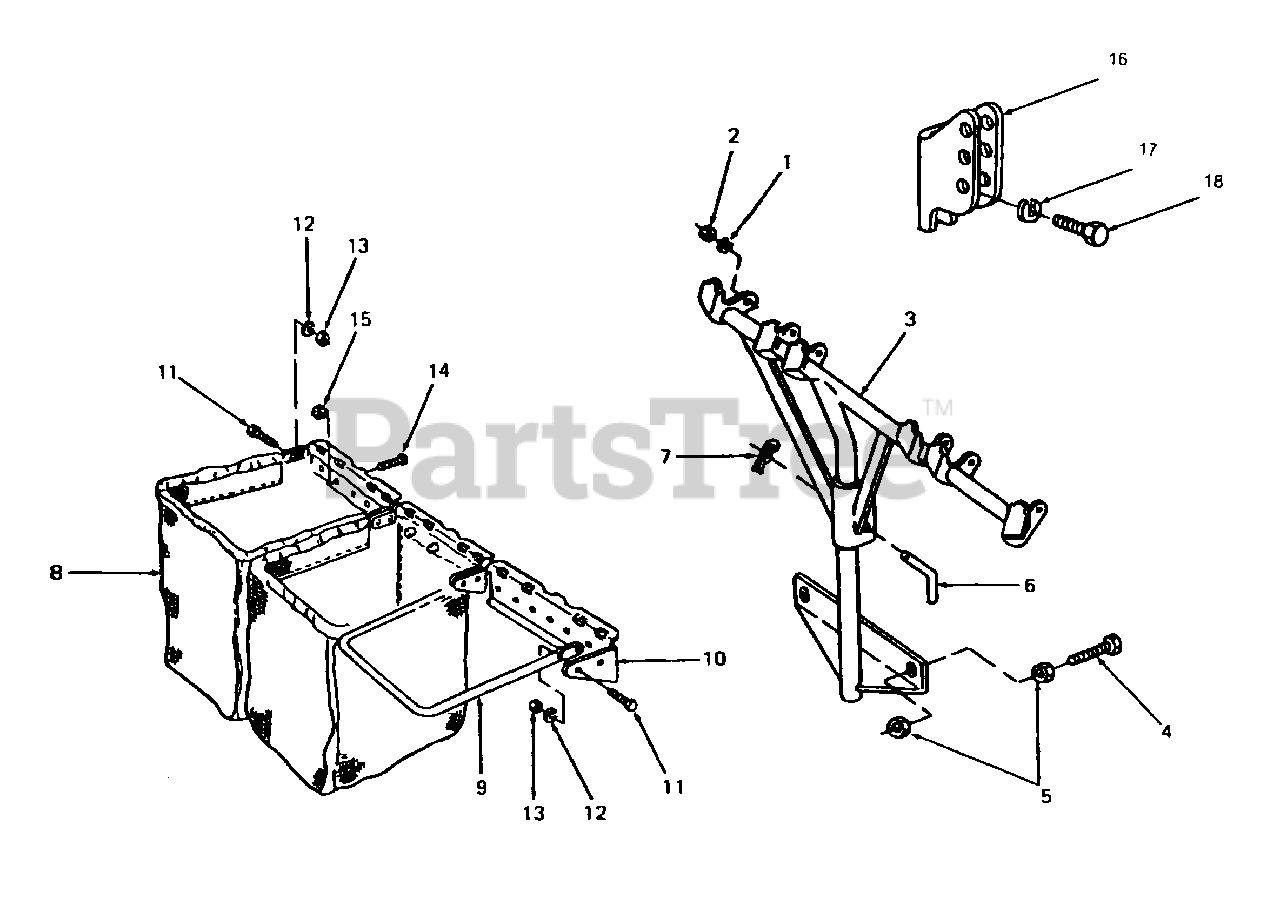

293 (190-293-100) - Cub Cadet Fan Assist. Bagger Bag & Support Parts Diagram

Fan Assist. Bagger

Bag & Support Parts Diagram

  • Title

1

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 6

0

3

Cub Cadet 603-0621-0637

Tube Assy, Catcher Support

$

$

Not available

4

Cub Cadet 710-0342

Screw, Hex Cap, 3/8-16 X 1.25 Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

6

Cub Cadet 711-3285

Pin, Right Angle Clevis

$34.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 714-0117

Pin, Internal Cotter, 5/8 Dia.

$4.49

$

In Stock, Qty 16

0

8

Cub Cadet 964-0251

Bag, Grass Catcher

$87.99

$

In Stock, Qty 15

0

9

Cub Cadet 749-0745A-0637

Frame, Catcher Bag

$

$

Not available

10

Cub Cadet 17201A-0637

Bracket, Bag Frame Hanger

$71.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg.

$5.99

$

In Stock, Qty 9

0

12

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

13

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg.

$3.99

$

In Stock, Qty 12

0

15

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 13026-0637

Hitch Bracket

$60.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .88 Lg.

$7.49

$

In Stock, Qty 9

0
