293 (190-293-100) - Cub Cadet Fan Assist. Bagger att Blower & Chute Parts Diagram

Fan Assist. Bagger

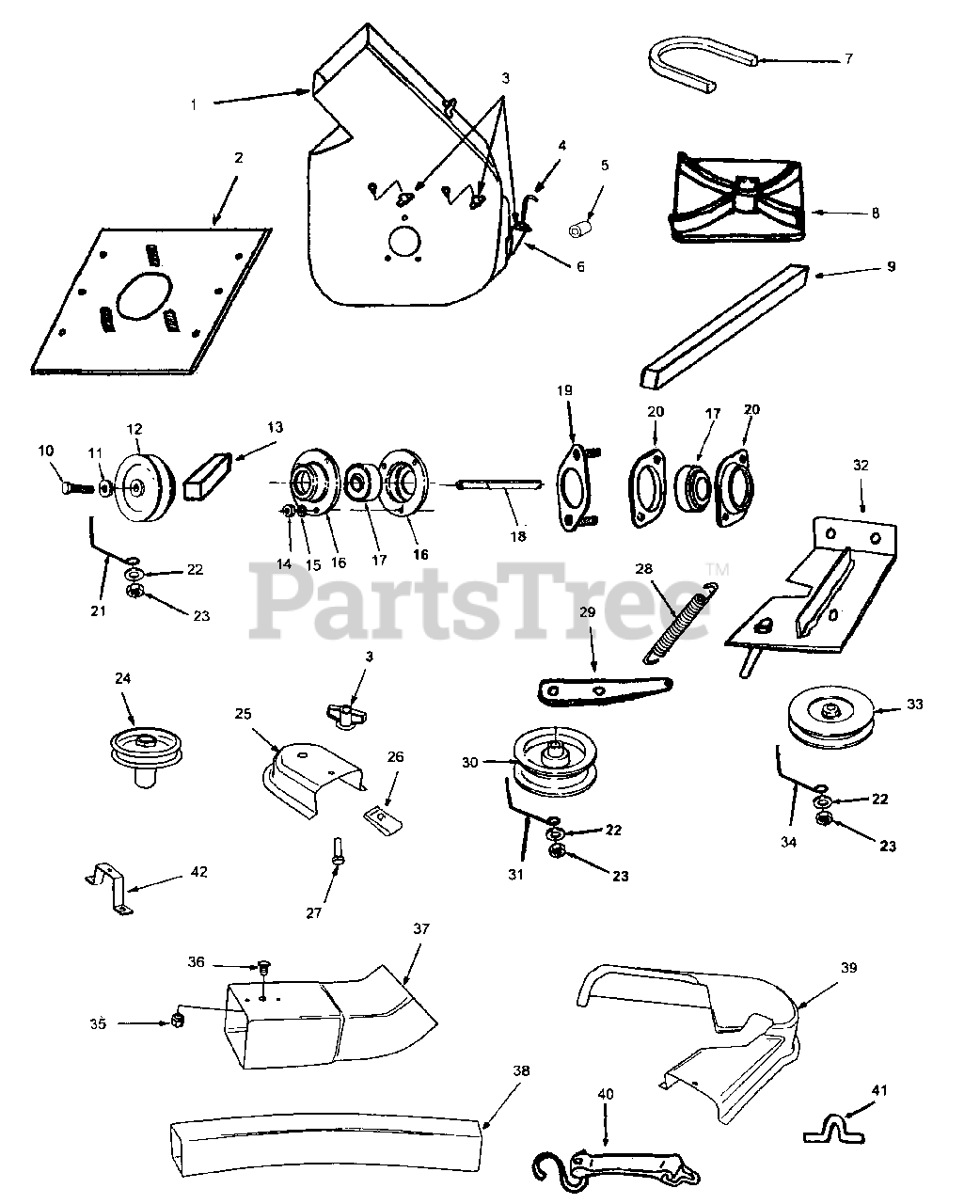

Blower & Chute Parts Diagram

  • Title

1

Cub Cadet GP-48-54-01A

Blower Hsg. w/Liner

$569.99

$

Usually ships in 3-6 days

0

2

Cub Cadet GP-48-54-02A

Brg. Supt. Plate Assy.

$

$

Not available

3

Cub Cadet GP-48-54-35

Wing Nuts
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet GP-48-54-34

Frt. Supt. Mounting Rod

$

$

Not available

5

Cub Cadet 750-0755

Spacer, .320 X .625 X .92

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet GP-48-54-25

Deck Stop Brkt.

$

$

Not available

7

Cub Cadet 754-3018

Belt
(Superseded to 954-3018)

$55.99

$

Usually ships in 3-6 days

0

8

Cub Cadet GP-48-54-08

Blade Implr.

$

$

Not available

9

Cub Cadet GP-48-54-07

Implr. Shaft Key
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

10

Hex Bolt 5/16-18 X 3/4 Lg.

Note: (Purchase Locally)

$

$

Not available

11

Wsh .345 I.d. X 1.385 o.d. X .120 Thk.

Note: (Purchase Locally)

$

$

Not available

12

Cub Cadet GP-48-54-10A

Implr. Pulley

$

$

Not available

13

Cub Cadet GP-48-54-11

Implr. Pulley Key
(Superseded to 714-3009)

$3.99

$

Usually ships in 3-6 days

0

14

Nut Nylon Lock 5/16-18

Note: (Purchase Locally)

$

$

Not available

15

(Not Used In Application) (Purchase Locally)

$

$

Not available

16

Cub Cadet GP-48-54-04

Outer Brg. Supt. Flange

$

$

Not available

17

Cub Cadet GP-48-54-09

Implr. Shaft Brg.
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

18

Cub Cadet GP-48-54-06

Implr. Shaft

$

$

Not available

19

Cub Cadet GP-48-54-03

Supt. Brg. Flange

$

$

Not available

20

Cub Cadet GP-48-54-05

Inner Supt. Brg. Flange

$

$

Not available

21

Cub Cadet GP-48-54-12

Implr. Pulley Belt Guide

$

$

Not available

22

Wsh. .305 I.d. X .740 o.d. X .062 Thk.

Note: (Purchase Locally)

$

$

Not available

23

Nut Lock 5/16-18

Note: (Purchase Locally)

$

$

Not available

24

Cub Cadet GP-48-54-29

Driven Threaded Pulley

$

$

Not available

25

Cub Cadet GP-48-54-36

Small Belt Guard

$

$

Not available

26

Cub Cadet 712-0292

U-Type Clip Nut 1/4-20

$10.99

$

In Stock, only 2 left!

0

27

Cub Cadet 710-0206

Hex Cap Screw 1/4-20 X 7/8

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet GP-48-54-23

Idler Tension Spring

$

$

Not available

29

Cub Cadet GP-48-54-22

Idler Arm

$

$

Not available

30

Cub Cadet GP-48-54-20

Flat Idler Pulley

$

$

Not available

31

Cub Cadet GP-48-54-21

Flat Idler Pulley Belt Guide

$

$

Not available

32

Cub Cadet GP-48-54-17

Idler Plate Assy.

$

$

Not available

33

Cub Cadet GP-48-54-18

V Idler Pulley

$

$

Not available

34

Cub Cadet GP-48-54-19

V Idler Pulley Belt Guide

$

$

Not available

35

Rnd. Hd. Machine Scw. 1/4-20 X 1.0

Note: (Purchase Locally)

$

$

Not available

36

Nut Nylon Lock 1/4-20

Note: (Purchase Locally)

$

$

Not available

37

Cub Cadet GP-48-54-32

Short Chute

$

$

Not available

38

Cub Cadet GP-48-54-31

Long Chute

$

$

Not available

39

Cub Cadet GP-48-54-27

Large Belt Guard

$

$

Not available

40

Cub Cadet GP-48-54-24

Strap

$

$

Not available

41

Cub Cadet GP-48-54-14

Rope Tie

$

$

Not available

42

Cub Cadet 703-3151

Blower Hsg. Retaining Brkt.

$

$

Not available

Cub Cadet GP-48-54-13A

Mnt. Wear Plt.:Comes w/Blower Hsg.

Note: (Not shown)

$

$

Not available

Cub Cadet GP-48-54-38A

Steel Liner

Note: (Not shown)

$

$

Not available
