2925 (1694068) - Massey Ferguson 60" Garden Tractor, 25hp Transaxle SERVICE PARTS - Peerless Model 2600-025 (1715820) Parts Diagram

60" Garden Tractor, 25hp

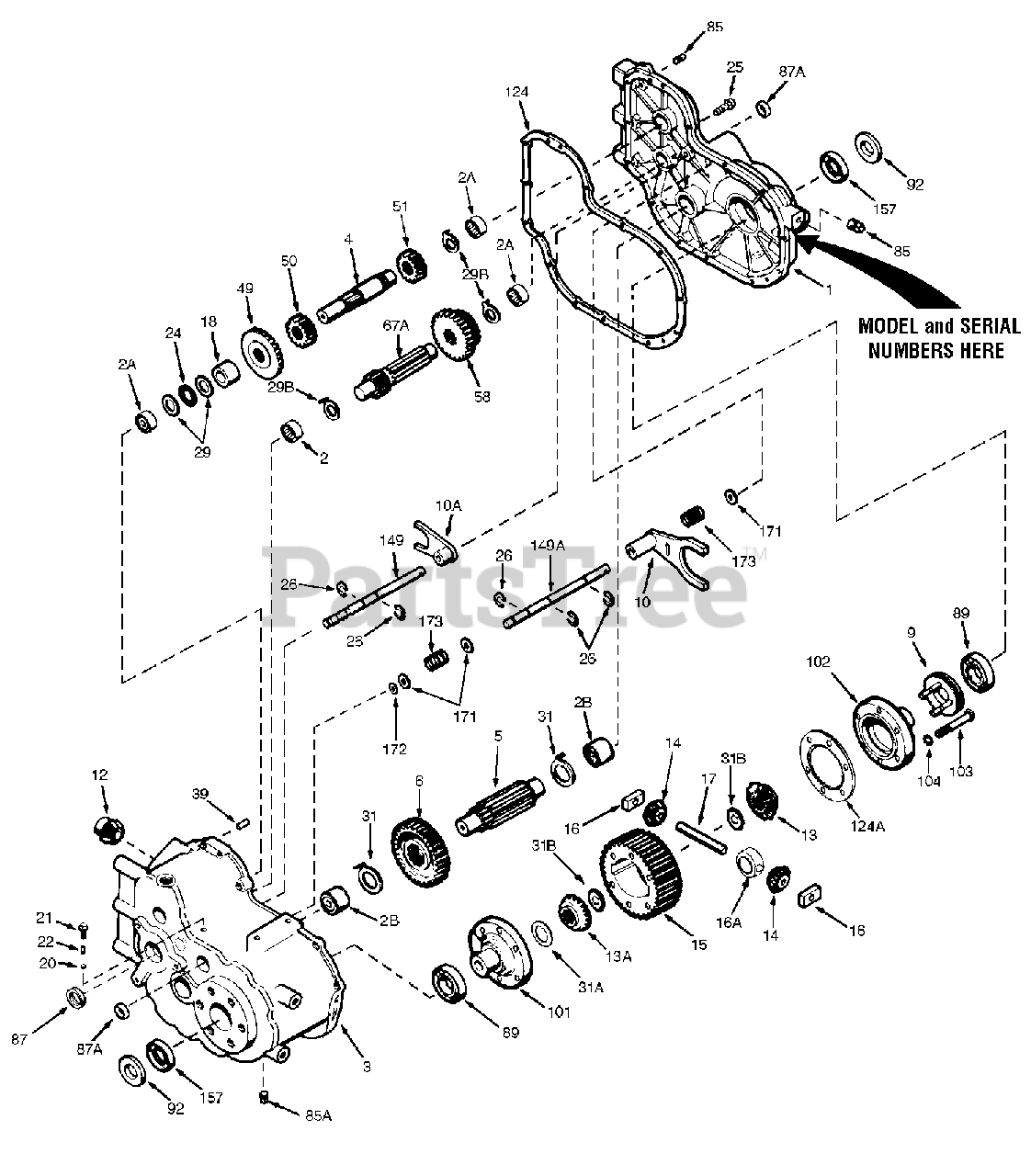

Transaxle SERVICE PARTS - Peerless Model 2600-025 (1715820) Parts Diagram

  • Title

1

Simplicity 772086

Transaxle Cover (Includes Ref. Nos. 2A & 2B)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$46.99

$

In Stock, only 2 left!

0

2

Simplicity 780097

Needle Bearing 1 ID

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$3.49

$

Usually ships in 2-12 days

0

2A

Simplicity 780100

Needle Bearing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$6.99

$

Usually ships in 2-12 days

0

2B

Simplicity 780099

Needle Bearing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

3

Simplicity 770130

Transaxle Case (Includes Ref. Nos. 2, 2A & 2B)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

4

Simplicity 776209A

Countershaft

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

5

Simplicity 776120A

Output Pinion

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

6

Simplicity 778098

Output Gear (37 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

9

Simplicity 784325A

SHIFT COLLAR ASSEMBLY

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

10

Simplicity 784328

Shift Fork (Diff-Lock)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

10A

Simplicity 784195

Shift Fork

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

12

Simplicity 778155

Bevel Pinion(13 teeth-steel)(Ship Loose Part)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

13

Simplicity 778159

Bevel Gear (16 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

13A

Simplicity 778158

Bevel Gear (16 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

14

Simplicity 778157

Bevel Pinion (10 teeth-steel)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

15

Simplicity 778156

Ring Gear

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

16

Simplicity 786098

Drive Block

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

16A

Simplicity 786171

Spacer Block

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

17

Simplicity 786096

Drive Pin

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

18

Simplicity 786094

Spacer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

20

Simplicity 792004

Ball, 3/16 dia.
(Superseded to 799063)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$91.99

$

In Stock, Qty 5

0

21

Simplicity 792100

CAPSCREW, 1/4-20 x 5/8

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

22

Simplicity 792003

Detent Spring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

24

Simplicity 780012

Thrust Bearing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

25

Simplicity 792067

CAPSCREW, 5/16-18 x 1

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

26

Simplicity 792064

Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

29

Simplicity 780045

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$1.99

$

Usually ships in 2-12 days

0

29B

Simplicity 780157

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

31

Simplicity 780156

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

31A

Simplicity 780130

Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$1.99

$

Usually ships in 2-12 days

0

31B

Simplicity 792158

Belleville Washer

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

39

Simplicity 786026

Dowel Pin

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

49

Simplicity 778087

Bevel Gear (30 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

50

Simplicity 778088

Spur Gear (16 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

51

Simplicity 778099

Spur Gear (20 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

58

Simplicity 778100

Shifter Gear (23 & 27 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

67A

Simplicity 776122

Shifter & Brake Shaft (13 teeth)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

85

Simplicity 792039

Plug, 1/8-27

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

85A

Simplicity 792019

Magnetic Drain Plug, 3/8-18

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$4.99

$

Usually ships in 2-12 days

0

87A

Simplicity 788034

Oil Seal, 1/2

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

87

Simplicity 788008

Oil Seal 1

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

89

Simplicity 780125

Ball Bearing

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

92

Simplicity 786097

Spacer (Ship Loose Part)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

101

Simplicity 774486A

Differential Carrier (Includes Ref. No 31A)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

102

Simplicity 774487

Differential Carrier

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

103

Simplicity 792101

CAPSCREW, 3/8-16 x 2-3/4

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$21.99

$

In Stock, only 1 left!

0

104

Simplicity 792011

Lockwasher, 3/8

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

124

Simplicity 788058B

Gasket

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

124A

Simplicity 780190

Shim

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

149

Simplicity 784326A

Shift Rod (High-Low)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

149A

Simplicity 784331A

Shift Rod (Diff-Lock)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

157

Simplicity 788049

Oil Seal 1-1/8

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

171

Simplicity 780070

Thrust Washer .502 ID

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

172

Simplicity 792099

Retaining Ring

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available

173

Simplicity 792102

Spring (Diff-Lock)

Note: Peerless transmission parts must be ordered through your local Tecumseh/Peerless distributor. © Copyright 1998 Tecumseh Products Company. All Rights Reserved. Used with permission.

$

$

Not available
