2925 (1694068) - Massey Ferguson 60" Garden Tractor, 25hp Front PTO Group Parts Diagram

60" Garden Tractor, 25hp

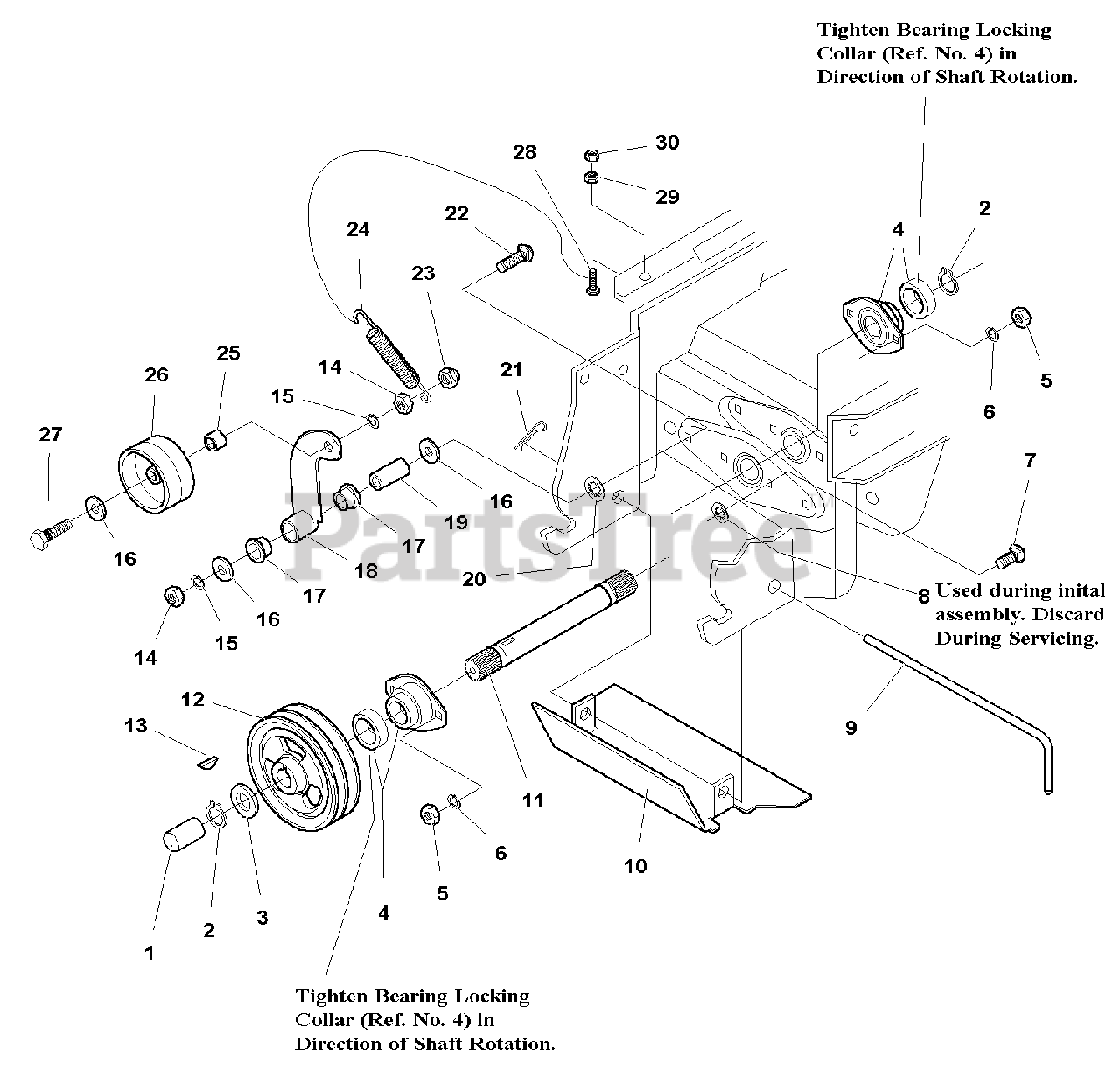

Front PTO Group Parts Diagram

  • Title

1

Simplicity 1717632SM

COVER, P.T.O. Shaft

$

$

Not available

2

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1960201SM

WASHER, 1.0

$4.99

$

In Stock, Qty 14

0

4

Simplicity 1715419SM

BEARING, Ball

$67.99

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1931334SM

CARRIAGE BOLT, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

8

Simplicity 1933988SM

NUT, Push, Used for initial assembly only, Discard During Service.
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 1715872SM

PIN, 1/2 x 12

$47.99

$

Usually ships in 2-12 days

0

10

Simplicity 1716975SM

GUARD PLATE, P.T.O.
(Superseded to 1716975ASM)

$18.99

$

Usually ships in 2-12 days

0

11

Simplicity 1715314SM

SHAFT, P.T.O.

$335.99

$

In Stock, only 1 left!

0

12

Simplicity 1716476SM

PULLEY, P.T.O., Double
(Superseded to 1716476BMYP)

$

$

Not available

13

Simplicity 2830671SM

KEY, Hi Pro, 3/4 Dia.

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

16

Simplicity 1924940SM

WASHER, 13/32
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 2176444SM

BUSHING, 41/64 x 3/4 x 1/2

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1717047SM

ARM ASSEMBLY, Idler

$

$

Not available

19

Simplicity 1669105SM

SPACER, 25/64 x 5/8 x 1-1/2

$13.99

$

In Stock, only 2 left!

0

20

Simplicity 1931942SM

NUT, Push, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 1960098SM

HAIRPIN, Cotter
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 1931355SM

CARRIAGE BOLT, 3/8-16 x 2-1/4

$5.99

$

In Stock, Qty 11

0

23

Simplicity 1960339SM

NUT, Hex, Flange Lock, 3/8-16

$

$

Not available

24

Simplicity 1608395SM

SPRING, Tension

$17.99

$

Usually ships in 2-12 days

0

25

Simplicity 1665699SM

SPACER, 25/64 x 5/8 x 5/8

$7.49

$

In Stock, only 1 left!

0

26

Simplicity 1674736SM

PULLEY, Idler, 3-1/4 Dia.

$55.99

$

In Stock, only 1 left!

0

27

Simplicity 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2
(Superseded to 703873)

$4.49

$

In Stock, only 3 left!

0
