2924 D (1694260) - Massey Ferguson 54" Garden Tractor, 24.5hp Diesel Wheels & Tires Group Parts Diagram

54" Garden Tractor, 24.5hp Diesel

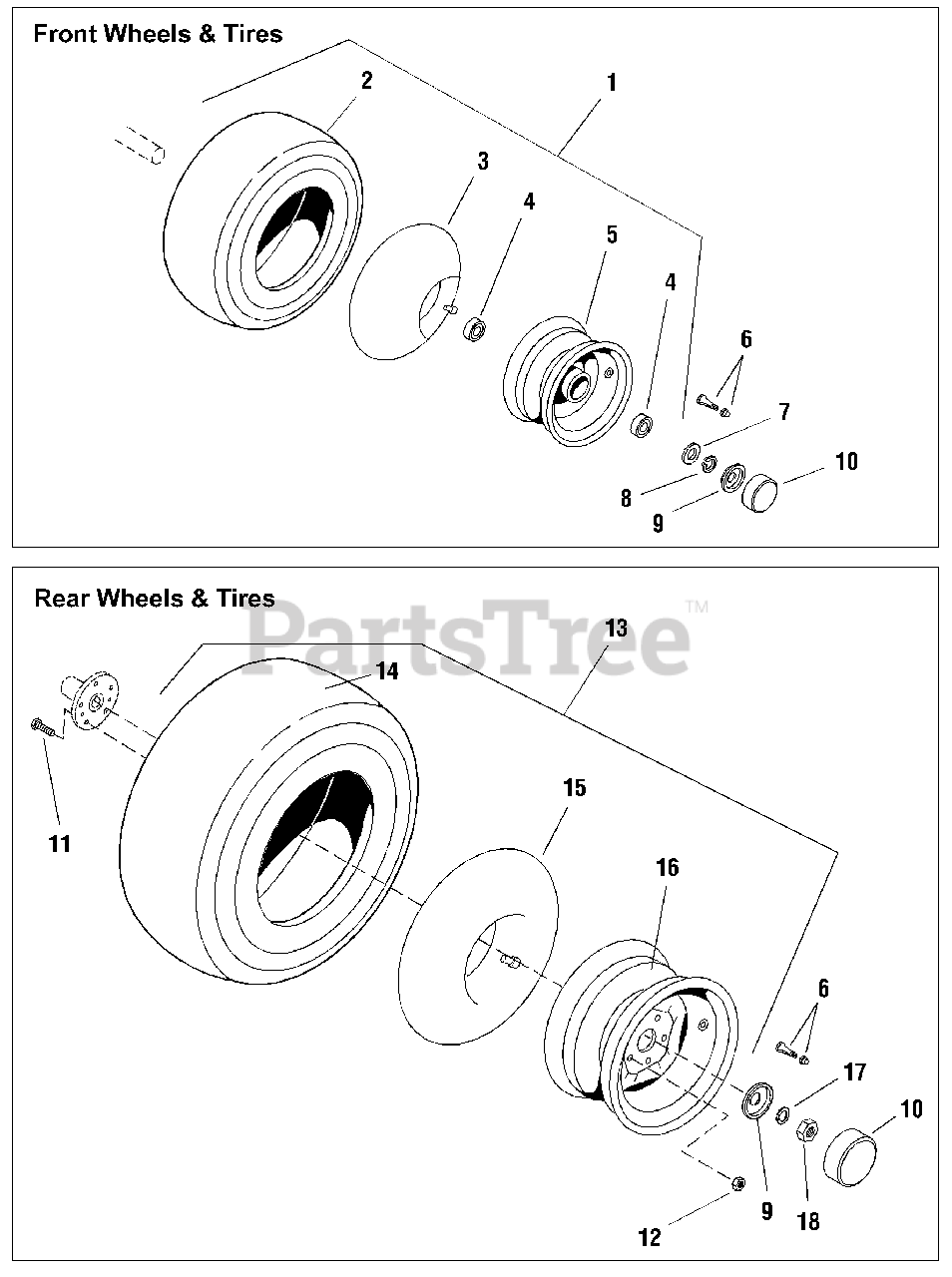

Wheels & Tires Group Parts Diagram

  • Title

1

Simplicity 1715414SM

WHEEL & TIRE ASSEMBLY, Front, 18 x 8.5 - 8 Tires

Note: (Includes Ref 2, 3, 4)

$

$

Not available

2

Simplicity 1713170SM

TIRE, Standard, Front, 18 x 8.5 - 8

$

$

Not available

2

Simplicity 1717633SM

TIRE, Optional 4-Ply, Front, 18 x 8.5 - 8 (For tractors equipped with front end loaders)
(Superseded to 1725720SM)

Note: No exchange program available on optional tires.

$105.99

$

Usually ships in 2-12 days

0

3

Simplicity 2164247SM

TUBE, Inner, Front

Note: For all 18 x 18.5 - 8 tire applications. (Optional)

$40.99

$

Usually ships in 2-12 days

0

4

Simplicity 1717056SM

BEARING, Ball

$

$

Not available

5

Simplicity 1717059SM

WHEEL ASSEMBLY, Front.

Note: For 18 x 8.5 - 8 Tires.

$

$

Not available

6

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

7

Simplicity 1919394SM

WASHER, 1.0
(Superseded to 703149)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2832577SM

RING, Retainer

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 1676520SM

RETAINER, Cap

$10.99

$

In Stock, Qty 13

0

10

Simplicity 1676519SM

HUBCAP

$8.49

$

In Stock, Qty 20+

0

11

Simplicity 1663805SM

STUD, Wheel, 7/16-20 x 1.23

$5.49

$

Usually ships in 2-12 days

0

12

Simplicity 2177725SM

NUT, Lug Bolt, 7/16-20

$6.49

$

In Stock, only 3 left!

0

13

Simplicity 1715416SM

WHEEL & TIRE ASSEMBLY, Rear, 26 x 12.00-12 Tires
(Superseded to 1724845SM)

Note: (Includes Ref 13, 14)

$501.99

$

Usually ships in 2-12 days

0

14

Simplicity 1701345SM

TIRE, Optional with AG-Tread, Large Rear, 26 x 12 - 12

Note: No exchange program available on optional tires.

$307.99

$

Usually ships in 2-12 days

0

14

Simplicity 1717062SM

TIRE, Standard, Rear, 26 x 12.00-12

$168.99

$

Usually ships in 2-12 days

0

15

Simplicity 2157638SM

TUBE, Inner, Rear, for all 26 x 12.00 - 12 tire applications

Note: (Optional)

$86.99

$

In Stock, only 2 left!

0

16

Simplicity 1717061SM

WHEEL ASSEMBLY, Rear, for 26 x 12.00-12 Tires

$176.99

$

Usually ships in 2-12 days

0

17

Simplicity 1679383SM

RETAINER, Spec. Washer

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 1960259SM

NUT, Hex Jam, 1 x 14

$3.99

$

Usually ships in 2-12 days

0
