2920 H (1692507) - Massey Ferguson Garden Tractor, 20hp Service Parts - Peerless Transaxle Model 2600-020 Parts Diagram

Garden Tractor, 20hp

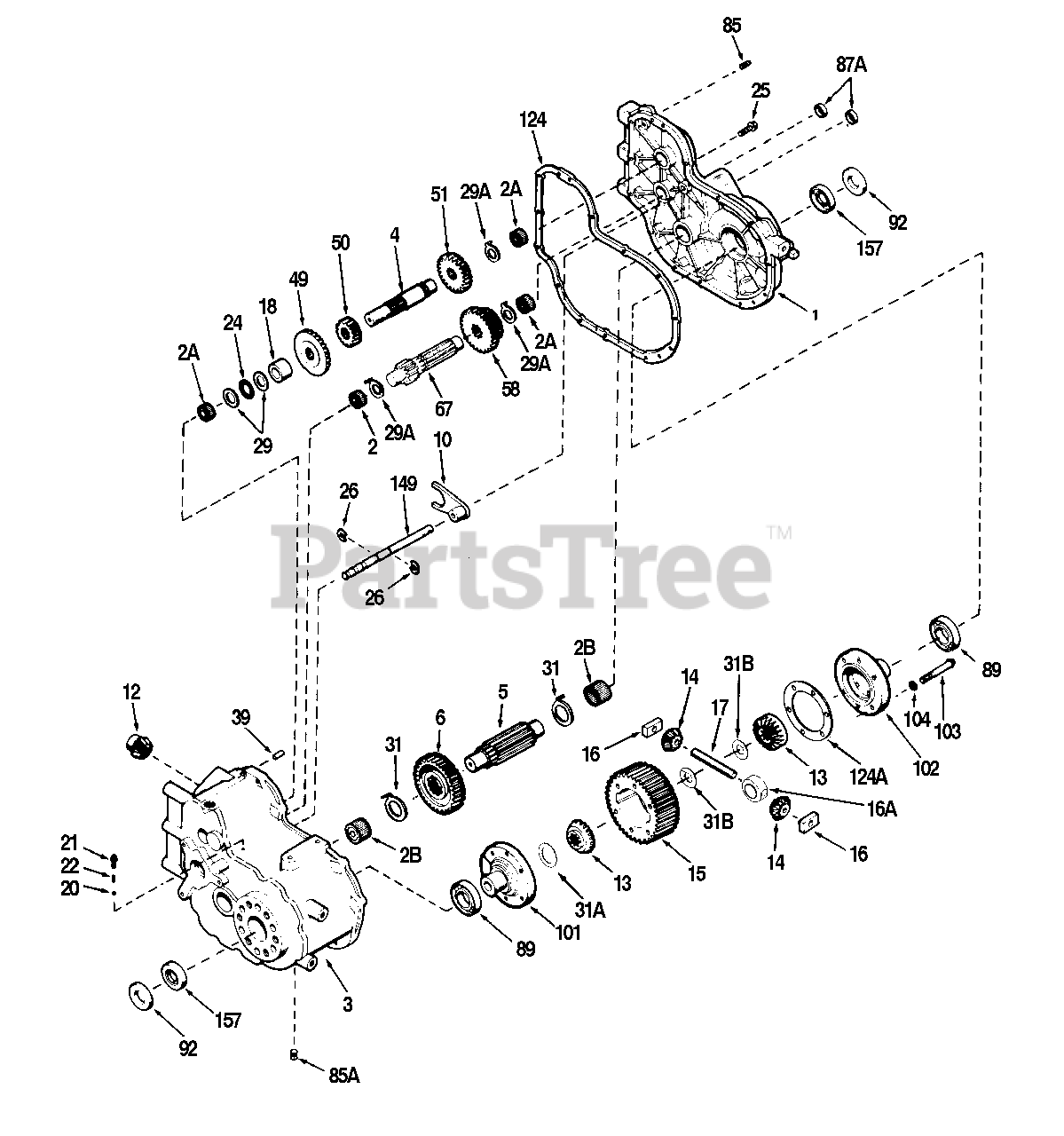

Service Parts - Peerless Transaxle Model 2600-020 Parts Diagram

  • Title

1

Simplicity 772104

TRANSAXLE COVER

Note: (Incl. 2A & 2B)

$179.99

$

Usually ships in 2-12 days

0

2

Simplicity 780126

NEEDLE BEARING

$6.49

$

Usually ships in 2-12 days

0

2A

Simplicity 780100

NEEDLE BEARING

$6.99

$

Usually ships in 2-12 days

0

2B

Simplicity 780099

NEEDLE BEARING

$

$

Not available

3

Simplicity 770073A

TRANSAXLE CASE

Note: (Incl. 2, 2A & 2B)

$

$

Not available

4

Simplicity 776209A

COUNTERSHAFT

$

$

Not available

5

Simplicity 776120A

OUTPUT PINION

$

$

Not available

6

Simplicity 778098

OUTPUT GEAR (37 teeth)

$

$

Not available

10

Simplicity 784195

SHIFT FORK

$

$

Not available

12

Simplicity 778155

BEVEL PINION

$

$

Not available

13

Simplicity 778158

BEVEL GEAR (16 teeth)

$

$

Not available

14

Simplicity 778157

BEVEL PINION (10 teeth)

$

$

Not available

15

Simplicity 778156

RING GEAR

$

$

Not available

16

Simplicity 786098

DRIVE BLOCK

$

$

Not available

16A

Simplicity 786168

SPACER BLOCK

$

$

Not available

17

Simplicity 786096

DRIVE PIN

$

$

Not available

18

Simplicity 786094

SPACER

$

$

Not available

20

Simplicity 792004

Ball, 3/16" dia.
(Superseded to 799063)

$91.99

$

In Stock, only 4 left!

0

21

Simplicity 792100

SCREW, 1/4-20 x 5/8

$

$

Not available

22

Simplicity 792003

DETENT SPRING

$

$

Not available

24

Simplicity 780012

THRUST BEARING

$

$

Not available

25

Simplicity 792067

SCREW, 5/16-18 x 1"

$

$

Not available

26

Simplicity 792064

RETAINING RING

$

$

Not available

29

Simplicity 780045

WASHER

$1.99

$

Usually ships in 2-12 days

0

29A

Simplicity 780157

WASHER

$

$

Not available

31

Simplicity 780156

WASHER

$

$

Not available

31A

Simplicity 780130

WASHER

$1.99

$

Usually ships in 2-12 days

0

31B

Simplicity 792158

BELLEVILLE WASHER

$

$

Not available

39

Simplicity 786026

DOWEL PIN

$

$

Not available

49

Simplicity 778087

BEVEL GEAR (30 teeth)

$

$

Not available

50

Simplicity 778088

SPUR GEAR (16 teeth)

$

$

Not available

51

Simplicity 778099

SPUR GEAR (20 teeth)

$

$

Not available

58

Simplicity 778100

SHIFTER GEAR (23 & 27 teeth)

$

$

Not available

67

Simplicity 776212

SHIFTER SHAFT

$

$

Not available

85

Simplicity 792039

PLUG, 1/8-27

$

$

Not available

85A

Simplicity 792019

MAGNETIC DRAIN PLUG, 3/8-18

$4.99

$

Usually ships in 2-12 days

0

87A

Simplicity 788034

OIL SEAL, 1/2"

$

$

Not available

89

Simplicity 780125

BALL BEARING

$

$

Not available

92

Simplicity 786097

SPACER

$

$

Not available

101

Simplicity 774486A

DIFFERENTIAL CARRIER

Note: (Incl. 31A)

$

$

Not available

102

Simplicity 774490A

DIFFERENTIAL CARRIER

Note: (Incl. 31A)

$

$

Not available

103

Simplicity 792101

SCREW, 3/8-16 x 2-3/4"

$21.99

$

In Stock, only 1 left!

0

104

Simplicity 792011

LOCKWASHER, 3/8"

$

$

Not available

124

Simplicity 788058B

GASKET

$

$

Not available

124A

Simplicity 780190

SHIM

$

$

Not available

149

Simplicity 784326A

SHIFT ROD (High-Low)

$

$

Not available

157

Simplicity 788049

OIL SEAL 1-1/8"

$

$

Not available
