2920 H (1692505) - Massey Ferguson Garden Tractor, 20hp Hood & Grille Parts Diagram

Garden Tractor, 20hp

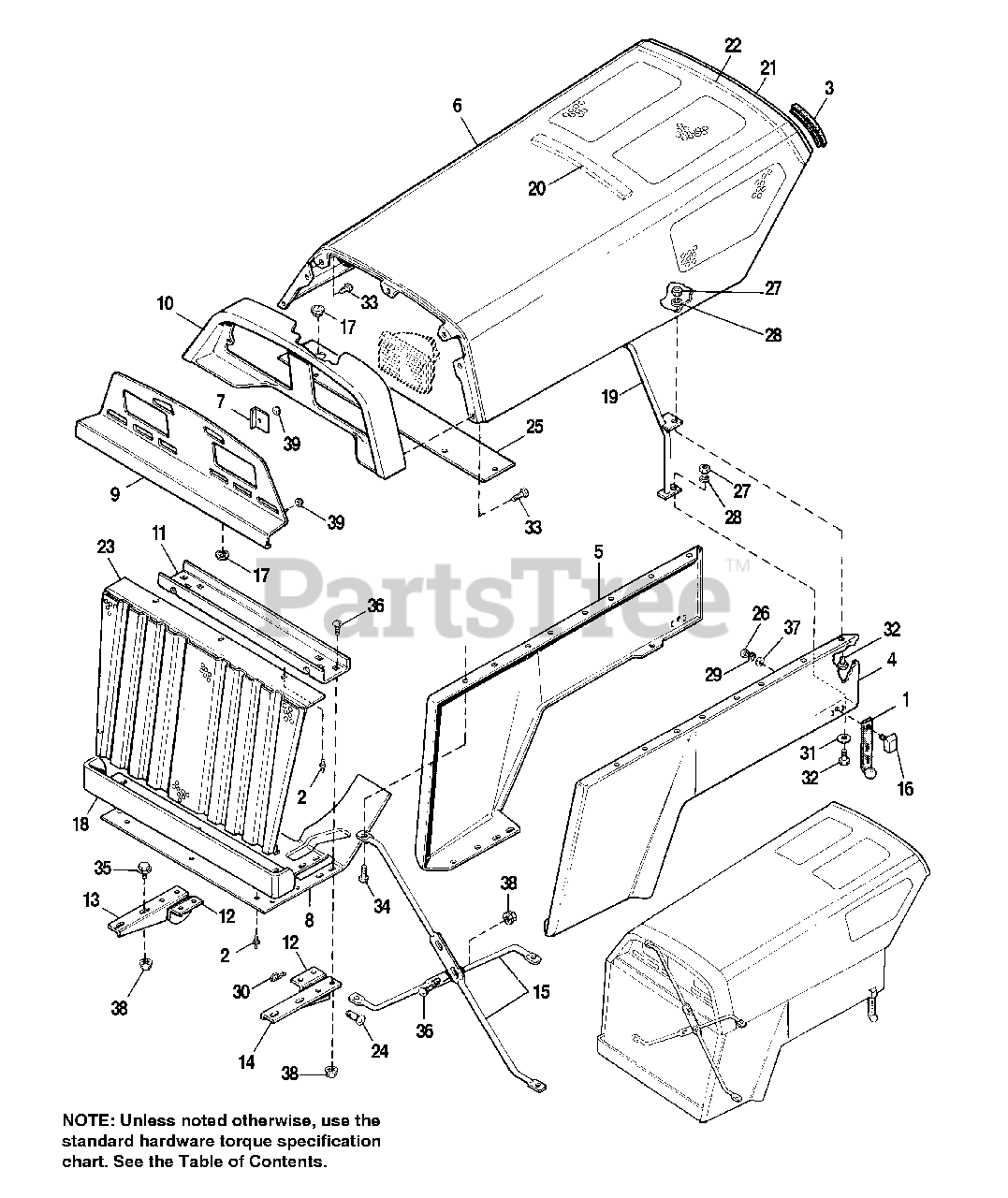

Hood & Grille Parts Diagram

  • Title

1

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

2

Simplicity 1675044SM

RIVET, Pop, 3/16

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 1675394SM

MOULDING, Hood

$9.49

$

In Stock, only 1 left!

0

4

Simplicity 1675831SM

PANEL, Side, LH.

$

$

Not available

5

Simplicity 1675832SM

PANEL, Side, RH
(Superseded to 1675832CSM)

$103.99

$

Usually ships in 2-12 days

0

6

Simplicity 1675878SM

HOOD ASSY.

$

$

Not available

7

Simplicity 1675932SM

CLIP, Headlamps, Mounting

$4.49

$

In Stock, only 2 left!

0

8

Simplicity 1676234SM

SHIELD, Heat

$

$

Not available

9

Simplicity 1676263SM

HEADLAMP INSERT ASSY.

$

$

Not available

10

Simplicity 1676286SM

FRAME, Headlamps

$

$

Not available

11

Simplicity 1676638SM

SUPPORT, Stop, Hood

$25.99

$

In Stock, only 1 left!

0

12

Simplicity 1676639SM

HINGE, Hood, Inner

$2.49

$

Usually ships in 2-12 days

0

13

Simplicity 1676653SM

HINGE, Hood, Outer, RH
(Superseded to 1676653ASM)

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 1676654SM

HINGE, Hood, Outer, LH
(Superseded to 1676654ASM)

$12.99

$

In Stock, only 1 left!

0

15

Simplicity 1676957SM

BRACE, Hood, Front

$14.99

$

In Stock, only 1 left!

0

16

Simplicity 1677672SM

COVER ASSY., Hood Strap

$

$

Not available

17

Simplicity 1677756SM

BUSHING, Universal

$

$

Not available

18

Simplicity 1678528SM

BUMPER ASSY.

$

$

Not available

19

Simplicity 1678599SM

SUPPORT ROD ASSY., Hood

$51.99

$

Usually ships in 2-12 days

0

20

Simplicity 1678625SM

SEAL, Hood Support

$

$

Not available

21

Simplicity 1678638

DECAL, Hood, Rear

$

$

Not available

22

Simplicity 1679660SM

SEAL, Hood, Rear

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 1701272

SCREEN ASSY., Grille

$

$

Not available

24

Simplicity 1708298SM

PIN, Lock (Clevis)

$

$

Not available

25

Simplicity 1708727SM

SHIELD, Muffler

$9.49

$

In Stock, only 1 left!

0

26

Simplicity 1916621SM

NUT, Hex, #10-24

$3.49

$

In Stock, Qty 11

0

27

Simplicity 1916622SM

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

28

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

29

Simplicity 1917365SM

LOCKWASHER, #10

$3.99

$

Usually ships in 2-12 days

0

30

Simplicity 1918196SM

PIN, Quick, 3/32 x 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 1921319SM

WASHER, Plain,1/4 x 5/8 x 3/64
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

32

Simplicity 1921958SM

CAPSCREW, Hex Hd., 1/4-20 x 1/2

$3.99

$

Usually ships in 2-12 days

0

33

Simplicity 1925003SM

SCREW, Hex, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 9

0

34

Simplicity 1930561SM

SCREW, Hex, Thd. Form, #14-3/4

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1930594SM

SCREW, Hex, Flange, Whizlock, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

37

Simplicity 1960096SM

WASHER, 13/64 I.D. x 3/4

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 1960294SM

NUT, Hex, Flange Whizlock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

39

Simplicity 1960517SM

PAL NUT, Hex, Lock, #10-24

$3.49

$

Usually ships in 2-12 days

0
