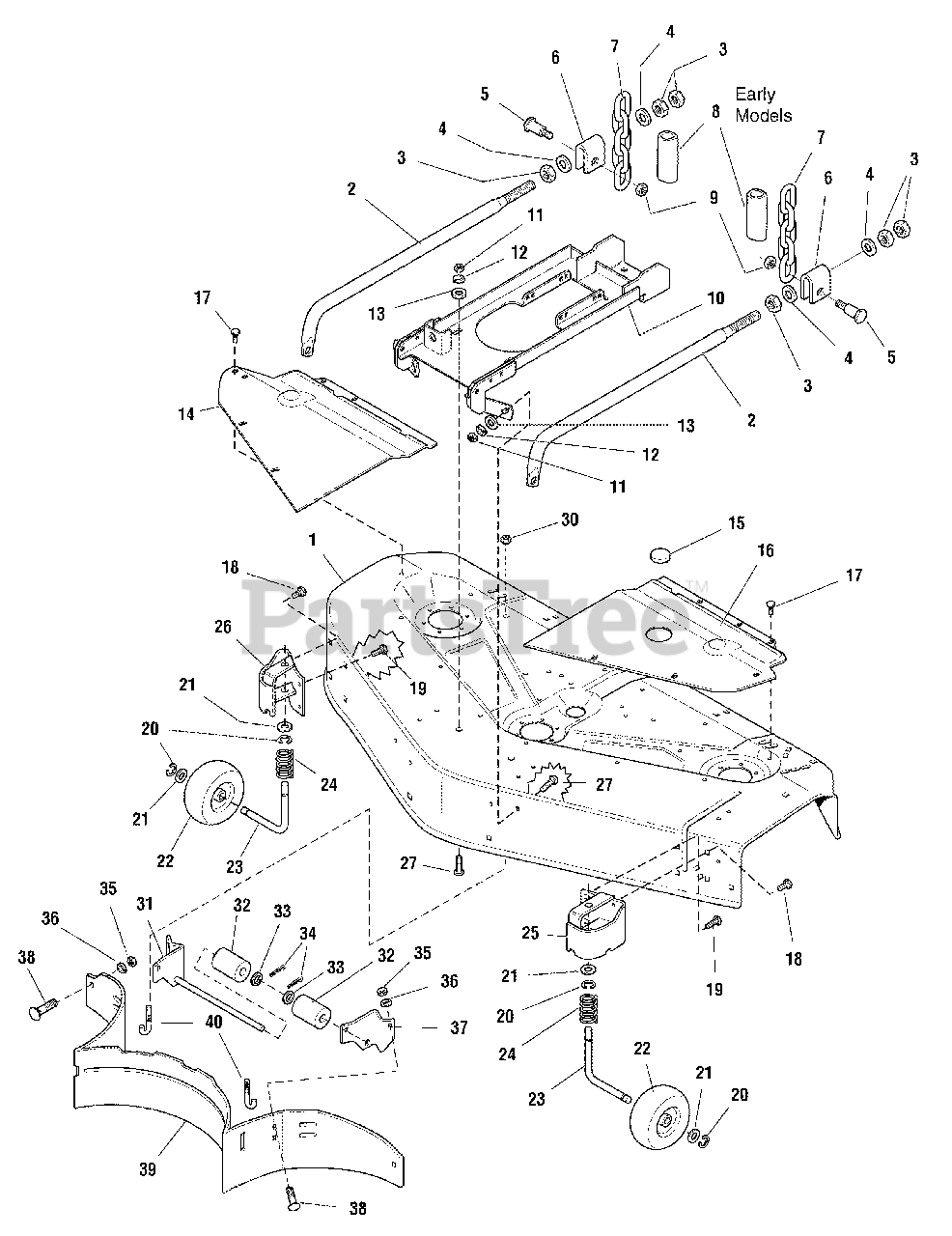

2920 (1693249) - Massey Ferguson 48" Garden Tractor, 20hp 48" Mower Deck - Housing, Cover & Gauge Wheel Group Parts Diagram

48" Garden Tractor, 20hp

48" Mower Deck - Housing, Cover & Gauge Wheel Group Parts Diagram

  • Title

1

Simplicity 1686731SM

HOUSING, 48" Mower Deck (Orange)
(Superseded to 1685282SM)

$1025.99

$

Usually ships in 2-12 days

0

1

Simplicity 41716963

HOUSING, 48" Mower Deck (Red)

$

$

Not available

1

Simplicity 1687141SM

HOUSING, 48" Mower Deck (Solar Black)

$

$

Not available

2

Simplicity 1686868SM

ARM, Adjusting

$301.99

$

Usually ships in 2-12 days

0

3

Simplicity 1922014SM

NUT, Hex Jam, 5/8-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

4

Simplicity 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 2170135SM

BOLT, Shoulder, 1/2 x 1.53 - 3/8-16

$9.49

$

Usually ships in 2-12 days

0

6

Simplicity 1677182SM

TRUNNION
(Superseded to 1677182ASM)

$8.49

$

Usually ships in 2-12 days

0

7

Simplicity 2107031SM

CHAIN, Lift
(Superseded to 2107031ASM)

$7.49

$

In Stock, only 2 left!

0

8

Simplicity 1686763SM

TUBE, Shrink Wrap (Early Models)

$15.99

$

Usually ships in 2-12 days

0

9

Simplicity 1930645SM

NUT, Hex Flange, Centerlock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

10

Simplicity 1715924SM

SUPPORT ASSEMBLY, 48 Mower Deck (Orange)
(Superseded to 1715924ASM)

$162.99

$

Usually ships in 2-12 days

0

10

Simplicity 1729560SM

SUPPORT ASSEMBLY, 48 Mower Deck (Solar Black)
(Superseded to 1715924ASM)

$162.99

$

Usually ships in 2-12 days

0

11

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

13

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1679928C

COVER, RH, 48 Mower Deck (Orange)
(Superseded to 1679928ASM)

$70.99

$

Usually ships in 2-12 days

0

14

Simplicity 1679928D

COVER, RH, 48 Mower Deck (Red)

$

$

Not available

14

Simplicity 1729552SM

COVER, RH, 48 Mower Deck (Solar Black)
(Superseded to 1679928ASM)

$70.99

$

Usually ships in 2-12 days

0

15

Simplicity 1674020SM

PLUG, Cover

$4.49

$

In Stock, Qty 7

0

16

Simplicity 1679511C

COVER, LH, 48 Mower Deck (Orange)

$

$

Not available

16

Simplicity 1679511D

COVER, LH, 48 Mower Deck (Red)

$

$

Not available

16

Simplicity 1729551SM

COVER, LH, 48 Mower Deck (Solar Black)

$

$

Not available

17

Simplicity 1929000SM

CAPSCREW, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

18

Simplicity 1930601SM

CAPSCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

19

Simplicity 1919326SM

CAPSCREW, Taptite, 5/16-18 x 1

$4.49

$

In Stock, Qty 6

0

20

Simplicity 1704420SM

KLIPRING, 5/8

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1960020SM

WASHER, Plain, 5/8

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1716353SM

WHEEL, Gauge

$22.99

$

In Stock, only 2 left!

0

23

Simplicity 1716345A

SPINDLE, Gauge Wheel
(Superseded to 1716345SM)

$33.99

$

In Stock, only 1 left!

0

24

Simplicity 1716346SM

SPRING, Compression

$6.99

$

In Stock, only 3 left!

0

25

Simplicity 1716347C

BRACKET ASSEMBLY, LH Gauge
(Superseded to 1716347ASM)

$222.99

$

Usually ships in 2-12 days

0

26

Simplicity 1716942C

BRACKET ASSEMBLY, RH Gauge
(Superseded to 1716942ASM)

$67.99

$

Usually ships in 2-12 days

0

27

Simplicity 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

30

Simplicity 1923362SM

NUT, Hex Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

31

Simplicity 2108454ASM

BRACKET & SHAFT ASSEMBLY, Inner

$79.99

$

In Stock, only 2 left!

0

32

Simplicity 1668513SM

ROLLER ASSEMBLY

$10.99

$

In Stock, Qty 20+

0

33

Simplicity 1960020SM

WASHER

$4.49

$

In Stock, Qty 20+

0

34

Simplicity 1918458SM

COTTER PIN

$3.99

$

In Stock, Qty 10

0

35

Simplicity 1917372SM

NUT, Hex, 5/16
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

36

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

37

Simplicity 2108224ASM

BRACKET, Inner, LH

$59.99

$

In Stock, only 2 left!

0

38

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

39

Simplicity 1674774ASM

BAFFLE ASSEMBLY

$

$

Not available

40

Simplicity 1679385SM

SCREW-HOOK, Baffle

$9.99

$

In Stock, only 2 left!

0
