292 (190-292-100) - Cub Cadet Fan Assist. Bagger att Cover Assembly & Deck Brackets Parts Diagram

Fan Assist. Bagger

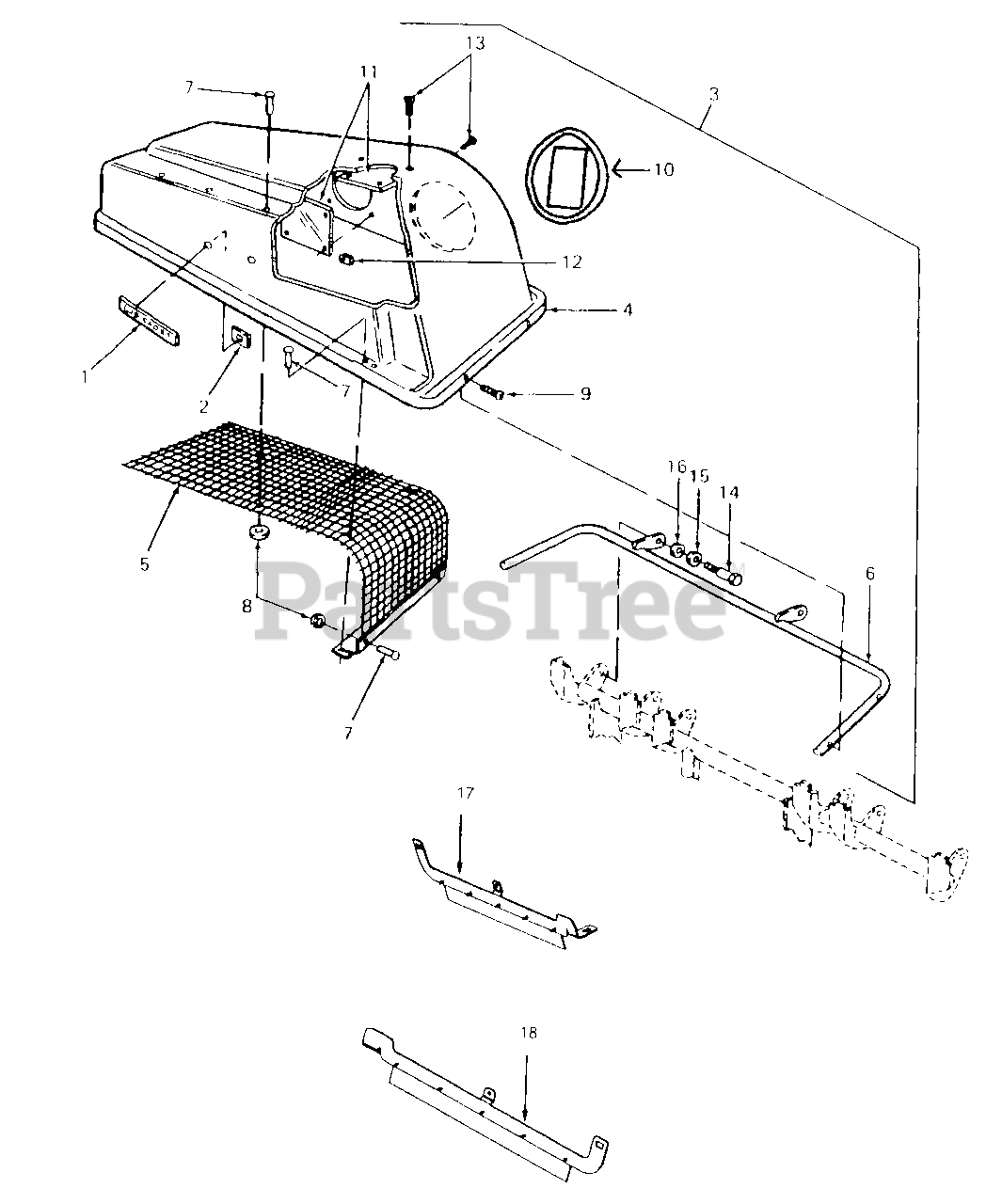

Cover Assembly & Deck Brackets Parts Diagram

  • Title

1

Cub Cadet 731-3081

Plaque, Logo w/Studs
(Superseded to 731-3081A)

$

$

Not available

2

Cub Cadet 726-3040

Nut, Push-on Speed

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 603-0579

Cover Assy, Grass Catcher

$

$

Not available

4

Note: Order 603-0579

$

$

Not available

5

Note: Order 603-0579

$

$

Not available

6

Cub Cadet 749-0747-0637

Bracket Assy, Catcher Cover Hinge

$

$

Not available

7

Cub Cadet 728-0123

Rivet, Pop
(Superseded to 928-0123)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0400

Washer, Flat, .218 X .62 X .063

$5.49

$

In Stock, Qty 12

0

9

Cub Cadet 710-0896

Screw, Hex Washer. 1/4 X .50 Lg.

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 723-0460

Seal, Tube

$

$

Not available

11

Cub Cadet 731-0824A

Plate, Plastic, 1/8 Thk X 5.62 Sq.

$

$

Not available

12

Cub Cadet 712-0147

Nut, U-Type Speed

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 910-0473

Screw, Truss Mach., #10 X .50 Lg.
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 738-0380

Screw, Shld.

$7.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0108

Washer, Flat, .510 X.75 X .033

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0255

Washer, Bell, .515 X 1.14

$4.99

$

In Stock, only 3 left!

0

17

Cub Cadet 603-0440

Brkt. Assy-w/Flapp RH 48"

Variations

Cub Cadet 603-0440-0637

USE 603-0440 BRACKET ASSY-W/F - POWDER BLACK (0637)

$183.99

$

Usually ships in 3-6 days

0

$183.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 603-0441

Brkt. Assy-w/Flapp LH 48"

Variations

Cub Cadet 603-0441-0637

USE 603-0441 BRACKET ASSY-W/F - POWDER BLACK (0637)

$

$

Not available

$

$
