2918 H (1692524) - Massey Ferguson 48" Garden Tractor, 18hp Fenders & Footrests Parts Diagram

48" Garden Tractor, 18hp

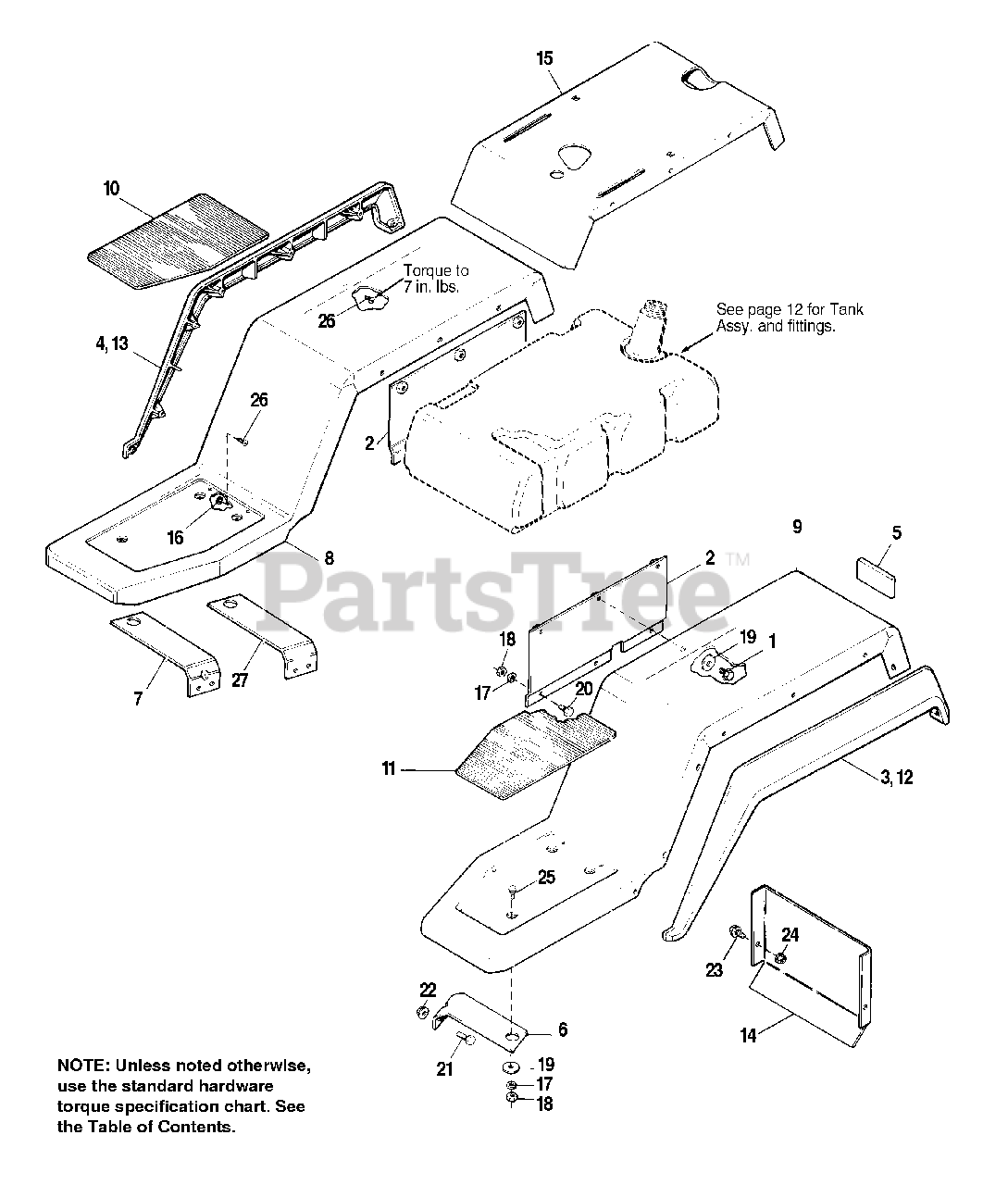

Fenders & Footrests Parts Diagram

  • Title

1

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

2

Simplicity 1675730

FENDER SUPPORT ASSY.

$

$

Not available

3

Simplicity 1675896

FENDER SKIRT, LH

Note: (Except models with 24 tires)

$

$

Not available

4

Simplicity 1706268SM

FENDER SKIRT, RH

Note: (Except models with 24 tires)

$

$

Not available

5

Simplicity 1676267SM

REFLECTOR, Rear

$19.99

$

Usually ships in 2-12 days

0

6

Simplicity 1676302SM

FOOTREST SUPPORT, Front, LH

$25.99

$

In Stock, only 1 left!

0

7

Simplicity 1676303SM

FOOTREST SUPPORT, Front, RH

$25.99

$

Usually ships in 2-12 days

0

8

Simplicity 1676407CSM

FENDER, RH

$319.99

$

Usually ships in 2-12 days

0

9

Simplicity 1676408CSM

FENDER, LH.

$

$

Not available

10

Simplicity 1676424SM

PAD, Footrest, RH

$

$

Not available

11

Simplicity 1676425SM

PAD, Footrest, LH

$

$

Not available

12

Simplicity 1706267

FENDER SKIRT, LH

Note: (Models with 24 tires)

$

$

Not available

13

Simplicity 1706268SM

FENDER SKIRT, RH

Note: (Models with 24 tires)

$

$

Not available

14

Simplicity 1706269SM

COVER, Rear Frame

$

$

Not available

15

Simplicity 1708569SM

COVER, Fuel Tank

$54.99

$

In Stock, only 1 left!

0

16

Simplicity 1916964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

Note: (Qty. 12 on 18 HP models)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 1917372SM

NUT, 5/16-18
(Superseded to 7091511SM)

Note: (Qty. 12 on 18 HP models)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1920283SM

WASHER, Flat, 11/32 x 1-1/2 x 7/64

$4.99

$

In Stock, Qty 5

0

20

Simplicity 1921332SM

CAPSCREW, Hex Hd., 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

21

Simplicity 1921966SM

CAPSCREW, Hex Hd., 3/8-16 x 7/8

$3.99

$

Usually ships in 2-12 days

0

22

Simplicity 1928352SM

LOCKNUT, Whiz, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

23

Simplicity 1930591SM

SCREW, Flange, Whizlock, 5/16-18 x 1
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

24

Simplicity 1931277SM

NUT, Flange, Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

25

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

Note: (Qty. 6 on 18 HP models)

$3.49

$

In Stock, Qty 12

0

26

Simplicity 1960728SM

SCREW, Plastite, 1/4-10 x 5/8

$3.99

$

In Stock, only 4 left!

0

27

Simplicity 1676304SM

FOOTREST SUPPORT, Rear

Note: (18 HP models)

$15.99

$

Usually ships in 2-12 days

0
