291 (190-291-100) - Cub Cadet 60" Mower Deck att Deck Assembly Parts Diagram

60" Mower Deck

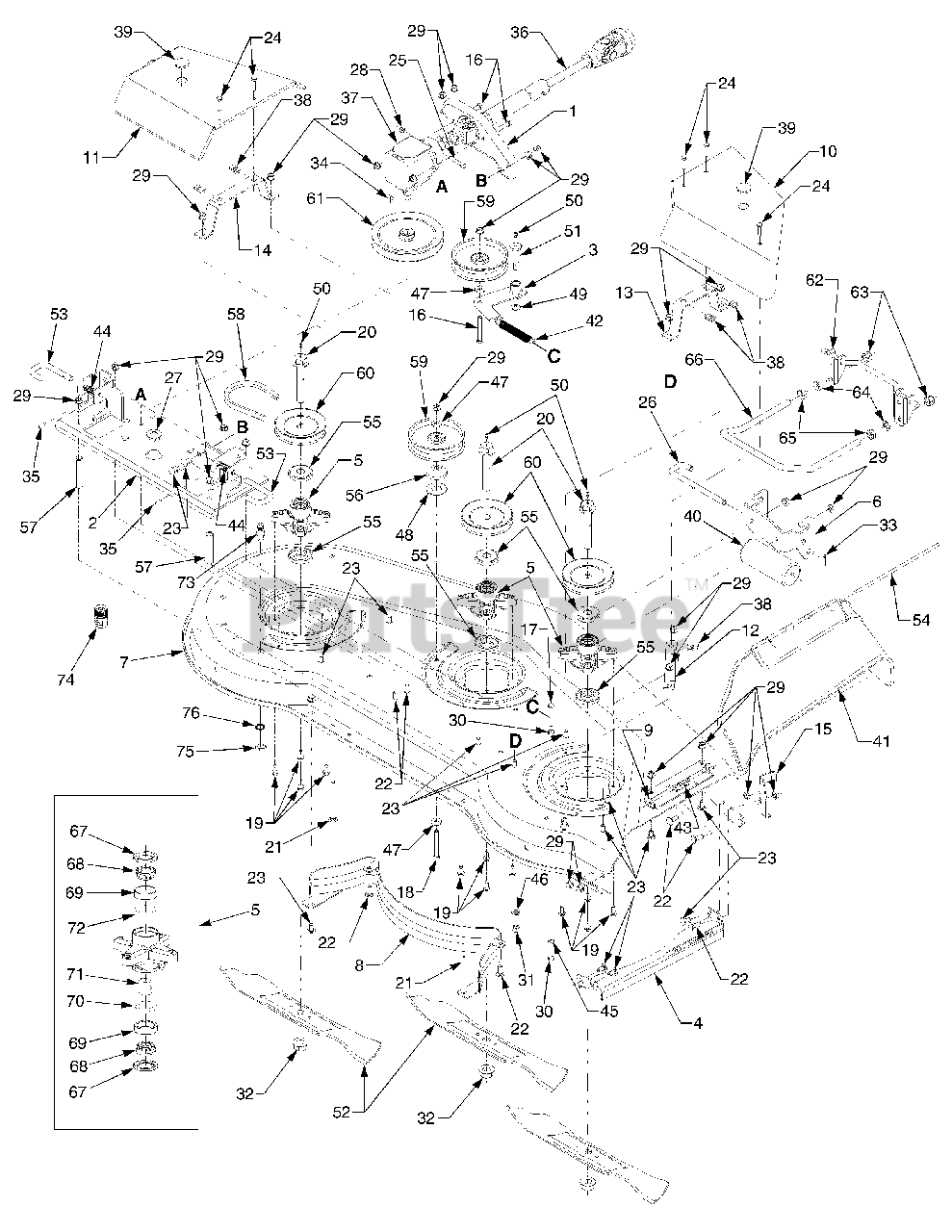

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0746-0716

Bracket Assembly,Drive

$

$

Not available

2

Cub Cadet 603-0613-0716

Bracket Assembly, Mounting for decks built Mfg. Date 1K019G and after
(Superseded to 603-0613-4021)

$170.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0613-0498

Bracket Assembly, Mounting for decks built Mfg. Date 1J319G and before
(Superseded to 603-0613-4021)

$170.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0623-0716

Bracket Assembly, Idler for decks built Mfg. Date 1K019G and after

$

$

Not available

3

Cub Cadet 603-0623-0498

Bracket Assembly, Idler for decks built Mfg. Date 1J319G and before
(Superseded to 603-0623-0716)

$

$

Not available

4

Cub Cadet 603-0662-0716

Guard, Deck, Opening for decks built Mfg. Date 1K019G and after
(Superseded to 603-0662-0637)

$

$

Not available

4

Cub Cadet 603-0662-0498

Guard, Deck, Opening for decks built Mfg. Date 1J319G and before
(Superseded to 603-0662-0716)

$

$

Not available

5

Cub Cadet 918-3129B

Assembly, Spindle - Replaces all older spindles.
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

6

Cub Cadet 703-3043A-0716

Bracket, Roller, Front for decks built Mfg. Date 1K019G and after
(Superseded to 703-3043A-4021)

$69.99

$

In Stock, only 1 left!

0

6

Cub Cadet 703-3043A-0498

Bracket, Roller, Front for decks built Mfg. Date 1J319G and before
(Superseded to 703-3043A-4021)

$69.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-3182-0716

Housing, Deck (w/o Deck wash holes)for decks built Mfg. Date 1K019G and after
(Superseded to 903-05682-0716)

$

$

Not available

7

Cub Cadet 703-3182-0498

Housing, Deck (w/o Deck wash holes)for decks built Mfg. Date 1J319G and before
(Superseded to 703-05682)

$

$

Not available

7

Cub Cadet 703-05682-0716

Housing, Deck (w/ Deck wash holes)
(Superseded to 903-05682-0716)

$

$

Not available

7

Cub Cadet 777D07876

Label, 60"

$

$

Not available

7

Cub Cadet 777S30503

Label, Danger R.H. Side of Deck

$11.99

$

In Stock, only 3 left!

0

7

Cub Cadet 777S30015

Label, Danger L.H. Side of Deck

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-3248-0716

Baffle, Deck- for decks built Mfg. Date 1K019G and after
(Superseded to 703-3248-0637)

$157.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-3248-0498

Baffle, Deck- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3248-0637)

$157.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3250-0716

Bracket, Deck, Chute- for decks built Mfg. Date 1K019G and after

$

$

Not available

9

Cub Cadet 703-3250-0498

Bracket, Deck, Chute- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3250-4021)

$

$

Not available

10

Cub Cadet 703-3272-0716

Cover, Belt -R.H.- for decks built Mfg. Date 1K019G and after

$

$

Not available

10

Cub Cadet 703-3272-0498

Cover, Belt -R.H.- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3272-0716)

$

$

Not available

11

Cub Cadet 703-3273-0716

Cover, Belt - L.H.- for decks built Mfg. Date 1K019G and after

$

$

Not available

11

Cub Cadet 703-3273-0498

Cover, Belt - L.H.- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3273-0716)

$

$

Not available

12

Cub Cadet 703-3274-0716

Bracket, Belt Cover- R.H.- for decks built Mfg. Date 1K019G and after

$

$

Not available

12

Cub Cadet 703-3274-0498

Bracket, Belt Cover- R.H.- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3274-0637)

$

$

Not available

13

Cub Cadet 703-3275-0716

Bracket, Belt Cover - Center- for decks built Mfg. Date 1K019G and after
(Superseded to 703-3275-4021)

$

$

Not available

13

Cub Cadet 703-3275-0498

Bracket, Belt Cover - Center- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3275-0637)

$

$

Not available

14

Cub Cadet 703-3276-0716

Bracket, Belt Cover - L.H.- for decks built Mfg. Date 1K019G and after

$

$

Not available

14

Cub Cadet 703-3276-0498

Bracket, Belt Cover - L.H.- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3276-0637)

$

$

Not available

15

Cub Cadet 703-3280-0716

Stop, Chute Deflector- for decks built Mfg. Date 1K019G and after

$

$

Not available

15

Cub Cadet 703-3280-0498

Stop, Chute Deflector- for decks built Mfg. Date 1J319G and before
(Superseded to 703-3280-4021)

$

$

Not available

16

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75" GR5

$5.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0395

Screw, Hex Cap 5/16-18 x 2.25" GR5

$4.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-0521

Screw, Hex Cap, 3/8-16 x 3.0" GR8

$5.49

$

In Stock, Qty 11

0

19

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75"

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-1336

Bolt, Spindle 3/4-16 x 4.25"
(Superseded to 710-1336A)

$24.99

$

In Stock, Qty 8

0

21

Cub Cadet 710-1649

Bolt, Carriage 3/8-16 x 4.50" GR5

$17.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-3168

Bolt, Carriage 3/8-16 x 1"

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3178

Bolt, Carriage 3/8-16 x .75"

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0376

Screw, HHC, 5/16-18 x 1.0 GR5 (Replaces 710-3232 Thmb Scrw)

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3251

Screw, Socket Hd. 5/16-18 x 1.75"

$5.99

$

In Stock, only 2 left!

0

26

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31"
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

27

Cub Cadet 712-0417A

Nut, Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0429

Nut, Hex Lock 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3010

Nut, Hex 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-3019

Nut, Hex 7/16-14

$6.99

$

In Stock, only 1 left!

0

32

Cub Cadet 712-3078

Nut, Hex Flange 3/4-16

$9.99

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0115

Pin, Cotter 1/8 x 1.0

$3.99

$

In Stock, only 2 left!

0

34

Cub Cadet 714-0126

Key, Hi-Pro

$4.99

$

In Stock, Qty 12

0

35

Cub Cadet 715-3003

Pin, Spirol

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 717-3453

Shaft, Drive

$1114.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 717-3488

Half Shaft, Front Only

Note: Not shown

$628.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 717-3489

Half Shaft, Rear Only

Note: Not shown

$

$

Not available

36

Cub Cadet 759-04219

Repair Kit, Yoke Lock

Note: Works with Weasler brand Drive shaft only. Weasler name on yoke. Not shown,

$97.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$1003.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 726-0211

Nut, "U" 5/16-18

$4.49

$

In Stock, only 1 left!

0

39

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

40

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

41

Cub Cadet 731-3257

Deflector, Chute

$83.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-0626

Spring, Extension 5.06" Lg.

$12.99

$

In Stock, only 1 left!

0

43

Cub Cadet 732-0939

Spring, Torsion

$12.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0171

Washer, Lock 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

47

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .13

$4.49

$

In Stock, only 4 left!

0

48

Cub Cadet 736-0345

Washer, Flat, 1.010 x 2.0 x .065
(Superseded to 936-0345)

$4.49

$

In Stock, Qty 12

0

49

Cub Cadet 736-3015

Washer, Flat, .469 x .875 x .105
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

50

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 738-3005A

Bolt, Shoulder .68" x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

52

Cub Cadet 759-3809

Blade 20.5" Lg.
(Superseded to 742P3037)

$39.99

$

In Stock, only 3 left!

0

53

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

54

Cub Cadet 747-3384

Rod, Chute Deflector

$27.99

$

In Stock, only 1 left!

0

55

748-3065 A

Spacer, Spindle

$

$

Not available

56

Cub Cadet 748-3087

Spacer, Idler

$39.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 750-3235

Spacer, .5" I.D. x .75" O.D.

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 954-3093

"V"- Belt 124" Lg.

$121.99

$

In Stock, only 1 left!

0

59

Cub Cadet 756-3062

Pulley, Idler

$40.99

$

In Stock, Qty 13

0

60

Cub Cadet 756-3096

Pulley, Spindle

$40.99

$

In Stock, Qty 11

0

61

Cub Cadet 756-3098

Pulley, Drive

$109.99

$

In Stock, only 1 left!

0

62

Cub Cadet 603-0452A-0716

Bracket, Front Lift
(Superseded to 603-0452A-4021)

$

$

Not available

62

Cub Cadet 603-0452A-0498

Bracket, Front Lift
(Superseded to 603-0452A-4021)

$

$

Not available

63

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$6.99

$

In Stock, Qty 13

0

64

Cub Cadet 736-0158

Washer, Lock 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

65

Cub Cadet 712-3015

Nut, Hex Lock 5/8-11

$4.99

$

In Stock, Qty 20+

0

66

Cub Cadet 747-3386

Rod, Front Lift

$107.99

$

In Stock, only 4 left!

0

67

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

68

Cub Cadet 741-3028

Bearing, Cone - Mfg. Code 1I173G and before
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

68

Cub Cadet 741-04089

Bearing, Cone - Mfg Code 1I183G and after
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

69

Cub Cadet 741-3029

Cup, Bearing - Mfg. Code 1I173G and before
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

69

Cub Cadet 741-04091

Cup, Bearing - Mfg. Code 1I183G and after
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

70

Cub Cadet 741-3031

Spacer, Brng.
(Superseded to 941-3031)

Note: (Not used in newer housings with cast in spacer)

$

$

Not available

71

Cub Cadet 750-3190A

Spacer, Bearing - Mfg. Code 1I173G and before

$13.99

$

In Stock, only 2 left!

0

71

Cub Cadet 750-04409

Spacer, Bearing - Mfg. Code 1I183G and after

$20.99

$

In Stock, only 1 left!

0

72

Cub Cadet 750-3191

Spacer, Brng

Note: (Not used in newer housings with cast in spacer)

$40.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 737-04003C

Nozzle, Deck Wash - Mfg. Code 1J014G and after
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

74

Cub Cadet 721-04041

Adapter, Nozzle - Mfg. Code 1J014G and after
(Superseded to 921-04041)

$23.99

$

In Stock, Qty 20+

0

75

Cub Cadet 712-0641

Nut, Hex, M16-1.5 - Mfg. Code 1J014G and after

$6.49

$

In Stock, Qty 7

0

76

Cub Cadet 736-0760

Washer, Lock - Mfg. Code 1J014G and after

$4.49

$

In Stock, Qty 7

0
